wintv pvr150 capture has ghosting...

[shiet]

source: dish network receiver svideo out
view on: crt tv 32 in. via svideo from pc
wintv pvr 150 compression setting: dvd standard @ 6.5mbps/svcd @ 2.5mbps

dish network video compression does have some ghosting, but upon going thru the wintv pvr150 the video gets abit more ghosted... it looks like some kinda compression scheme.... anyone notice this?

(it kinda looks like the processing on noise reduction in ffdshow, temporal smoothing)

[edDV]

Can you show an example frame grab @DVD 6.5 Mb/s?

[jagabo]

The WinTV2000 software displays with a blend deinterlace by default. This will look ghosted whenever there is motion on the screen.

The saved MPEG file is not deinterlaced. If you burn it properly on a DVD it will play fine on TV.

[shiet]

is it ok to post a 2 sec clip tv capture ?

i played back in media player classic, first with main concept mpeg decoder, tried all deinterlacing settings, also used cyberlink powerdvd mpeg decoder, same ghosting

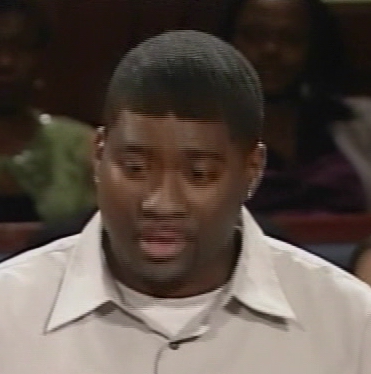

here's frame grab, cut around suject, which was moving his head downwards.


[shiet]

ok, just found a hauppauge tweak tool, and it does have a tweak for 'temporal filter' it was set at 8 i set it to 0, problem solved.
http://www.cask-of-amontillado.com/pvr_tweak.html
via
http://www.shspvr.com/tools.html

[SHS]

Yup that happing went get 100% soild signal with S/Video
