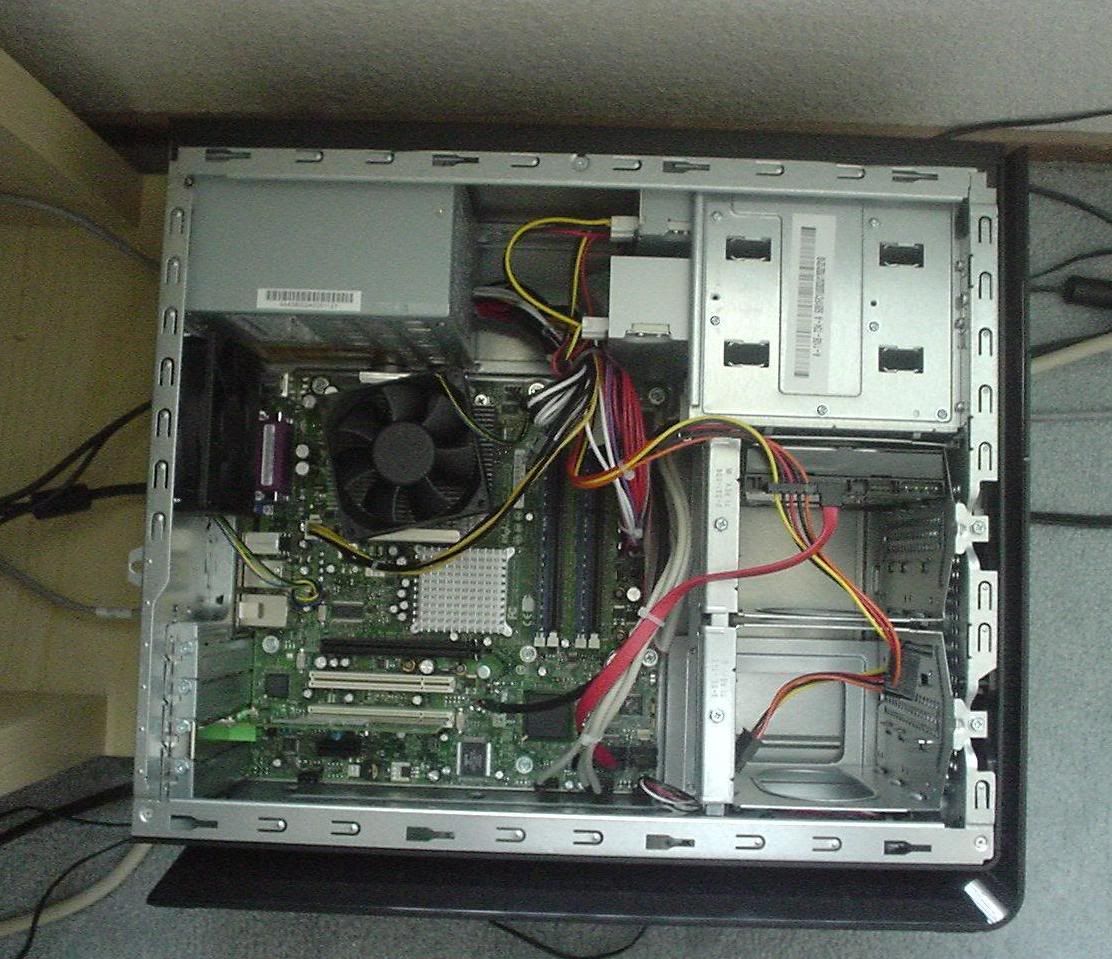

http://img.photobucket.com/albums/v451/darkmonkey88/RB30.jpg

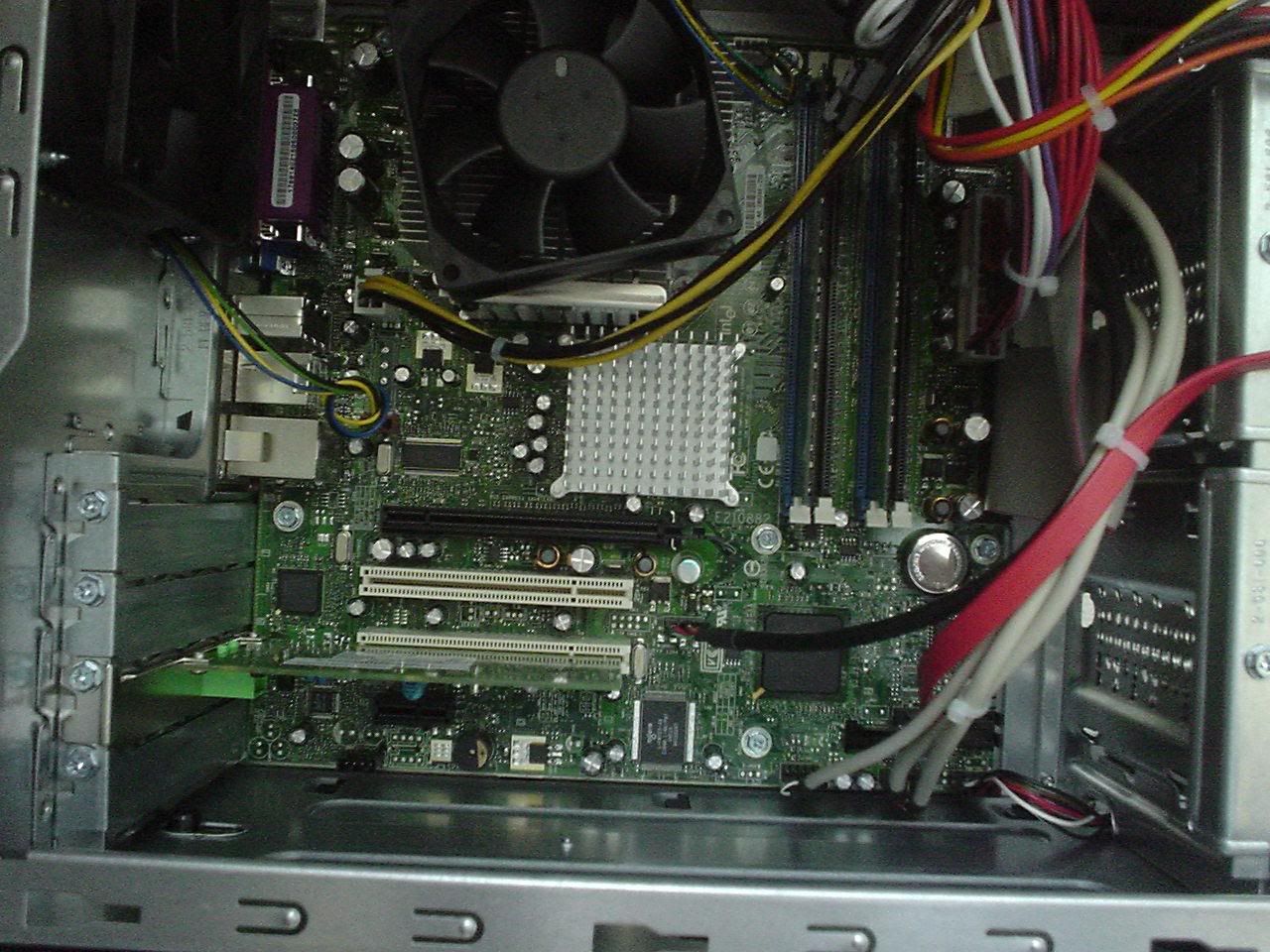

http://img.photobucket.com/albums/v451/darkmonkey88/RB30zoom.jpg
i want to put this card:
http://www.newegg.com/app/viewProductDesc.asp?description=14-122-202R&catalog=23&manufactory=BROWSE
into that computer.
which slot is the pci-e x16?
the black one? or the white one below it?
one more question. do i have 4 RAM slots? it looks like 2 ram slots are being used. can i add 2 more sticks?
+ Reply to Thread
Results 1 to 8 of 8
-
-
I'm assuming that's a PCI-E motherboard, then the top black slot. The white slots are probably regular PCI slots.
And sure, you can add 2 more sticks. If it uses DDR dual channel memory, then you use the two remaining slots. You will probably have to add 2 sticks for the dual channel to work properly, match all memory sticks if possible. You may have to make adjustments in BIOS to get the best memory performance. All this info should be in your motherboard booklet.
Which motherboard is that, anyway? -
The black slot at the top is the 16X PCI-E slot for graphics cards.
The small white slot at the bottom is a regular PCI-E slot for expansion cards.
The other two white slots in the middle are regular PCI Slots. -
More info about your board here...
http://www.intel.com/design/motherbd/ev/Nothing can stop me now, 'cause I don't care anymore. -
since it's refurbished,
http://www.newegg.com/app/ViewProductDesc.asp?description=14-122-202R&depa=0
would i have to install the latest nvidia drivers, shut down pc, THEN install the card?
or other way around?
and where would i plug the monitor's cable in? -
You can install the card, plug the monitor into it and load Window$, then load the latest drivers.
Nothing can stop me now, 'cause I don't care anymore. -
Originally Posted by deh707
as for the moniot cable, it depnds which monitor you have, if you are a TFT/LCD screen, you can use the white DVI port (provided you monitor accepts this), if you have a CRT monitor (the bulky ones), use the blue vga port.
