  1. I think maybe i'm using Convolution 3D incorrectly.

    I've been using it after my resize assuming it would eliminate some of the remaining resize artifacts, but Black isn't quite Black anymore. I guess reducing the color range will increase compressibility though, files are smaller.

    Is there a right and wrong way?
    Quote Quote
  2. VH Veteran jimmalenko's Avatar
    Join Date
    Aug 2003
    Location
    Down under
    Search PM
    I always use it before - I think I read somewhere that that was the best way to do it, and that the resize command should always be one of the last commands if using a script. I can't validate that with a source, just off the top of my head.
    If in doubt, Google it.
    Quote Quote
  3. Member FulciLives's Avatar
    Join Date
    May 2003
    Location
    Pittsburgh, PA in the USA
    Search Comp PM
    I always use Convolution3D prior to doing a RESIZE. I also like to use it before I do any croping.

    - John "FulciLives" Coleman
    "The eyes are the first thing that you have to destroy ... because they have seen too many bad things" - Lucio Fulci
    EXPLORE THE FILMS OF LUCIO FULCI - THE MAESTRO OF GORE
    Quote Quote
  4. Member
    Join Date
    Dec 2004
    Location
    Australia
    Search Comp PM
    Better quality to use it before, faster to use it after (less pixels to filter).

    No right or wrong way. Also there are other filters that you could try.
    Quote Quote
  5. From all the examples i could find online, most have Convo3d before the resize, but very few say why.

    Time to experiment!

    Thanks.
    Quote Quote
  6. Member FulciLives's Avatar
    Join Date
    May 2003
    Location
    Pittsburgh, PA in the USA
    Search Comp PM
    Originally Posted by gastorgrab
    From all the examples i could find online, most have Convo3d before the resize, but very few say why.

    Time to experiment!

    Thanks.
    I just realized you said that you were having a colorspace problem i.e., black not being really black in the end.

    Sorry but I somehow managed to miss that the first time I read your first post here.

    Give details as to how you capture and what capture codec you use and paste an actual AviSynth script that you are using.

    Also tell us what encoder you are using.

    - John "FulciLives" Coleman

    P.S.
    Take a look at my Convolution3D guide: CLICK HERE
    I think the only change I would note (I guess I need to update the guide) is that if you need to use ConvertToRGB() you should really make it read ConvertToRGB24() and this applies with or without the added interlaced=true part.
    "The eyes are the first thing that you have to destroy ... because they have seen too many bad things" - Lucio Fulci
    EXPLORE THE FILMS OF LUCIO FULCI - THE MAESTRO OF GORE
    Quote Quote
  7. What i'm doing is using it to convert DVD to XviD for use on my DVP-642.

    Script is simple; (Forced FILM from DGMPGDec)

    LoadPlugin("C:\Ut\Video\DGMPGDec\DGDecode.dll")
    LoadPlugin("C:\Program Files\AviSynth 2.5\YV12\Convolution3DYV12.dll")
    #
    mpeg2source("5thElement.d2v",cpu=6)# DGDecode Output is YV12
    #
    Lanczos4Resize(480,360).Crop(0,4,-0,-4)
    #
    Convolution3D(0,3,4,3,4,2.8,0)# movieHQ - DVD
    Encoder is VirtualDubMod..............AVI is my destination.

    DGDecode normally outputs YV12, and since i have no reason to alter it.......

    I've been using Convolution3D with my DV conversions and got comfortable with it, so i figured, why not try it with DVD-Rip.

    Here's my VDubMod template; (Look Familiar?)

    #ASYNTHER DV to DVD
    #
    # LoadPlugin("ReInterpolate411.dll")
    # LoadPlugin("Convolution3d.dll")
    #
    [AVISource("%f")]
    # Put Trims Here
    #
    # ConvertToYUY2(interlaced=true)
    ReInterpolate411()# Colorspace is YUY2
    #
    SeparateFields()
    odd=SelectOdd.Convolution3D(1,6,10,6,8,2.8,0)
    evn=SelectEven.Convolution3D(1,6,10,6,8,2.8,0)
    Interleave(evn,odd)
    Weave()# Bottom Field First (all even lines)
    #
    # DoubleWeave.SelectOdd()# Top Field First (all odd lines)
    #
    ConvertToRGB24(interlaced=true)# For TMPGEnc
    There's no reason to use Reinterpolate with my DVD-Rips so i have to assume that color change is due to "Averaging Pixels".

    Does this sound right?
    Quote Quote
  8. Member FulciLives's Avatar
    Join Date
    May 2003
    Location
    Pittsburgh, PA in the USA
    Search Comp PM
    Originally Posted by gastorgrab
    What i'm doing is using it to convert DVD to XviD for use on my DVP-642.

    Script is simple; (Forced FILM from DGMPGDec)

    LoadPlugin("C:\Ut\Video\DGMPGDec\DGDecode.dll")
    LoadPlugin("C:\Program Files\AviSynth 2.5\YV12\Convolution3DYV12.dll")
    #
    mpeg2source("5thElement.d2v",cpu=6)# DGDecode Output is YV12
    #
    Lanczos4Resize(480,360).Crop(0,4,-0,-4)
    #
    Convolution3D(0,3,4,3,4,2.8,0)# movieHQ - DVD
    Encoder is VirtualDubMod..............AVI is my destination.

    DGDecode normally outputs YV12, and since i have no reason to alter it.......

    I've been using Convolution3D with my DV conversions and got comfortable with it, so i figured, why not try it with DVD-Rip.
    Your script looks OK I guess although I'm not sure about the resize and crop values but I assume you know what you are doing there.

    Might want to add this to the end of it:
    ConvertToRGB24()
    VirtualDub uses the RGB colorspace as far as I know but that might only be under VIDEO FULL PROCESSING and normally Xvid and DivX are done with VIDEO FAST RECOMPRESS in which case I think it stays YV12 but I'm not sure about that.

    - John "FulciLives" Coleman

    P.S.
    I would put the Convolution3D part right after you load the D2V file ... in other words before you resize and crop.

    What is the "cpu=6" option do ... I am not familiar with that.
    "The eyes are the first thing that you have to destroy ... because they have seen too many bad things" - Lucio Fulci
    EXPLORE THE FILMS OF LUCIO FULCI - THE MAESTRO OF GORE
    Quote Quote
  9. Originally Posted by FulciLives
    Might want to add this to the end of it:
    ConvertToRGB24().
    Sorry, i should have included this;



    I'm using "Fast Recompress"

    Originally Posted by FulciLives
    P.S.
    I would put the Convolution3D part right after you load the D2V file ... in other words before you resize and crop.
    Majority rules! I'm gonna try it this way on my next conversion.

    Originally Posted by FulciLives
    What is the "cpu=6" option do ... I am not familiar with that.
    It's specific to DGMPGDec, and is described in the document "DGDecode.html", included in the package ; DGMPGDec

    Thanks!
    Quote Quote
  10. Originally Posted by gastorgrab
    Originally Posted by FulciLives
    P.S.
    I would put the Convolution3D part right after you load the D2V file ... in other words before you resize and crop.
    Majority rules! I'm gonna try it this way on my next conversion.
    Better yet, i'll try it both ways and do a direct comparison.
    Quote Quote
  11. Member FulciLives's Avatar
    Join Date
    May 2003
    Location
    Pittsburgh, PA in the USA
    Search Comp PM
    Are you using TV SCALE or PC SCALE in DVD2AVI or in this case DGMPGDec

    Perhaps using one vs the other will make a difference. Not sure which is correct for making an MPEG-4

    - John "FulciLives" Coleman
    "The eyes are the first thing that you have to destroy ... because they have seen too many bad things" - Lucio Fulci
    EXPLORE THE FILMS OF LUCIO FULCI - THE MAESTRO OF GORE
    Quote Quote
  12. Originally Posted by FulciLives
    Are you using TV SCALE or PC SCALE in DVD2AVI or in this case DGMPGDec

    Perhaps using one vs the other will make a difference. Not sure which is correct for making an MPEG-4

    - John "FulciLives" Coleman
    I forgot about that setting!

    I'll take a look.............It's set for PC scale, which is what i wanted anyway.

    Doesn't "TV scale" = (8-235) range?
    Quote Quote
  13. Member FulciLives's Avatar
    Join Date
    May 2003
    Location
    Pittsburgh, PA in the USA
    Search Comp PM
    Originally Posted by gastorgrab
    Originally Posted by FulciLives
    Are you using TV SCALE or PC SCALE in DVD2AVI or in this case DGMPGDec

    Perhaps using one vs the other will make a difference. Not sure which is correct for making an MPEG-4

    - John "FulciLives" Coleman
    I forgot about that setting!

    I'll take a look.............It's set for PC scale, which is what i wanted anyway.

    Doesn't "TV scale" = (8-235) range?
    Well TV SCALE should be 16-235 but that is what a DVD uses anyways so maybe that is the better choice?

    I don't know much about how MPEG-4 handles things like colorspace and luminance etc. since I mostly do analog capture to DVD or PAL DVD to NTSC DVD.

    - John "FulciLives" Coleman
    "The eyes are the first thing that you have to destroy ... because they have seen too many bad things" - Lucio Fulci
    EXPLORE THE FILMS OF LUCIO FULCI - THE MAESTRO OF GORE
    Quote Quote

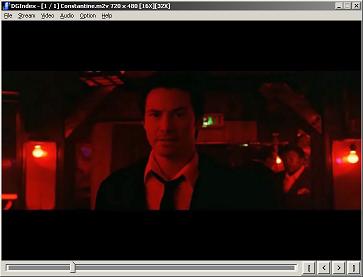

  14. Here's the difference between PC-Scale, and TV-Scale;



    It looks like what i expected to see.

    It also looks just like the problem i was having. It didn't show up till i used Convolution3d.
