[Cobra]

Steve,

I am trying to figure out what path to take on a sytem upgrade(XP mobile oc'd to around 2.4, A64 or P4).

You can't buy a CPU and expect to overclock it to a certain amount. You just can't tell what's in that little box - a hot, unstable chip that might get an extra few MHz or the most insane overclocker ever seen.

Just making sure you know.

[smarkgraf]

Cobra,

I completely agree. I discovered this first hand with my XP2500. Although pretty much everything I've seen with the XP mobiles is that they OC very well.

What concerns me the most is why similar systems don't yield similar results. For example; I get 1:39 on my XP BARTON@2.1G/AN35N/512Mb system and Flaystus is getting 1:09 on a very similar system XP3000 BArton/AN35N/512Mb. Our ram timings are the same. If I dial my FSB up to 195, I can match his clock speed. With that my FSB is almost 30MHz higher, but his encode time is still approx 25 sec faster.

Here is another question reguarding these tests. Does anyone think that running SP2 vs SP1 helps with the times? That is the other difference between our systems.

Thanks,
Steve

[glockjs]

it looks like something is sucking up your resources...i had the shuttle an35ultra in my tests and i was only running a 2800+...i'd say look for spyware/malware if you've closed everything that it's still doing those type of times. you saw my benchmark when i was running the system as normal while encoding....1:39

[smarkgraf]

@glockjs,
I run Adaware and spybot regularly as well as I have AVS running all the time. I will run a test tonight shutting everything down and see if that make a difference.

moderators: I will take furhter discussion offline to another topic if you like.

Thanks
Steve

[glockjs]

@smark...i dunno. somethin has gotta be leachin your resources. you time just doesnt make sense.


update:

hehe, closer and closer i get

[Cobra]

You're only a few seconds of my XP3800, glock. Nice going?

What FSB - Multi are you running on that thing?

I'm 255MHz x 9.5 = 2422MHz.

[glockjs]

locked multi

but here's what it's at:

http://img170.exs.cx/img170/6595/cpuz11ym.jpg


192x12.5=2400

[glockjs]

my roomates compaq tablet coming in at a blazing 14:54 so basically a tablet is nothing more than an oversized pda




Number of CPUs 1
Name Transmeta Crusoë TM5800
Code name
Specification Transmeta(tm) Crusoe(tm) Processor TM5800
Family/Model/Stepping 543
Extended Family/Model 5/4
Package 474-BGA
Technology 0.13µ
Instructions Sets MMX
Clock Speed 995.6 MHz
L1 Data Cache 64 KBytes, 16-way set associative, 32 Bytes line size
L1 Instruction Cache 64 KBytes, 8-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 4-way set associative, 128 Bytes line size
L2 Speed 995.6 MHz (Full)
L2 Location
L2 Data Prefetch Logic no

Chipset
------------------------------------------------------------------------------

Northbridge Transmetta LongRun rev. 3
Southbridge VIA VT82C686 rev. 47
Memory Type
Memory Size 744 MBytes


Memory SPD
------------------------------------------------------------------------------

DIMM #1

General
Memory type SDRAM
Manufacturer (ID) Micron Technology (2CFFFFFFFFFFFFFF)
Size 512 MBytes
Max bandwidth PC133 (133 MHz)


@smark..what do your sisoft sandra scores look like?

[smarkgraf]

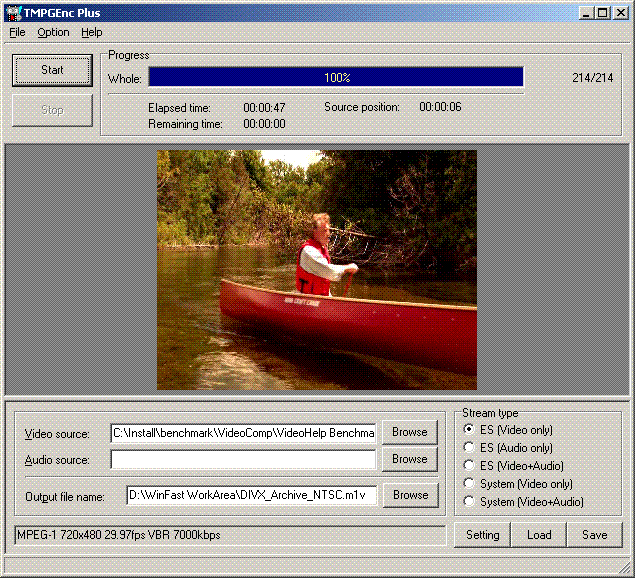

Well I think I fixed my computer problems. Reseated CPU/cleaned HSF. Then did a fresh install of XPPro/SP2. Backed off to 190x11 with 7-3-3-2 timing. End result was a 47sec time.

Hope this works.

Steve

CPU-Z version 1.27.

CPU(s)
Number of CPUs 1
Name AMD Athlon XP
Code Name Barton
Specification AMD Athlon(tm) XP 3200+
Family / Model / Stepping 6 A 0
Extended Family / Model 7 A
Package Socket A
Technology 0.13 µ
Supported Instructions Sets MMX, Extended MMX, 3DNow!, Extended 3DNow!, SSE
CPU Clock Speed 2090.1 MHz
Clock multiplier x 11.0
Front Side Bus Frequency 190.0 MHz
Bus Speed 380.0 MHz
L1 Data Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L1 Instruction Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 16-way set associative, 64 Bytes line size
L2 Speed 2090.1 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 64 bits

Mainboard and chipset
Chipset nVidia nForce2 Ultra 400 rev. C1
Southbridge nVidia nForce2 MCP rev. A4
Sensor chip IT 8712
Graphic Interface AGP
AGP Status enabled, rev. 2.0
AGP Data Transfert Rate 4x
AGP Max Rate 4x
AGP Side Band Addressing supported, enabled
AGP Aperture Size 64 MBytes

Memory
DRAM Type DDR-SDRAM
DRAM Size 512 MBytes
DRAM Frequency 190.0 MHz
FSBRAM 1:1
CAS# Latency 2.0 clocks
RAS# to CAS# 3 clocks
RAS# Precharge 3 clocks
Cycle Time (TRAS) 7 clocks
# of memory modules 1
Module 0 Melco DDR-SDRAM PC3200 - 512 MBytes

Software
Windows version Microsoft Windows XP Professional Service Pack 2 (Build 2600)
DirectX version 9.0c

[glockjs]

wow. very nice. congrats

im jealous. im lookin to go to a mobile chip soon. my 2800 doesnt wanna be stable after certain speeds. but the other forum i visit there's people with xp-m 2600 runnin at at least 250fsb-260fsb @2.6ghz stable with the board i just got and tccd ram

[waheed]

My PC keeps giving me blue screen of death error, and hasn't been formatted for ages (it has alot of crap on it) so this might affect encoding time.

TMPGEnc gave me 1.05 results.

Im using my raptor for the tests.

I have not overclocked my PC in any way.

CPU-Z Report

--------------------------------------------------------------------------------

CPU-Z version 1.28.6.


CPU(s)
Number of CPUs 1

Name AMD Athlon 64 3500+
Code Name NewCastle
Specification AMD Athlon(tm) 64 Processor 3500+
Family / Model / Stepping F F 0
Extended Family / Model F F
Brand ID 4
Package Socket 939
Core Stepping DH7-CG
Technology 0.13 µ
Supported Instructions Sets MMX, Extended MMX, 3DNow!, Extended 3DNow!, SSE, SSE2, x86-64
CPU Clock Speed 2211.3 MHz
Clock multiplier x 11.0
HTT Bus Frequency 201.0 MHz
L1 Data Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L1 Instruction Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 16-way set associative, 64 Bytes line size
L2 Speed 2211.3 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 128 bits



Mainboard and chipset
Motherboard manufacturer ASUSTeK Computer INC.
Motherboard model A8N-SLI DELUXE, 1.XX
BIOS vendor Phoenix Technologies, LTD
BIOS revision ASUS A8N-SLI DELUXE ACPI BIOS Revision 1003
BIOS release date 01/20/2005
Chipset nVidia nForce4 rev. A3
Southbridge nVidia nForce4 MCP rev. A3
Sensor chip IT 8712

Graphic Interface PCI-Express
PCI-E Link Width x16
PCI-E Max Link Width x16



Memory
DRAM Type DDR-SDRAM
DRAM Size 1024 MBytes
DRAM Frequency 201.0 MHz
FSBRAM CPU/11
CAS# Latency 3.0 clocks
RAS# to CAS# 3 clocks
RAS# Precharge 3 clocks
Cycle Time (TRAS) 8 clocks
Bank Cycle Time (TRC) 12 clocks
DRAM Idle Timer 16 clocks
# of memory modules 2
Module 0 Corsair DDR-SDRAM PC3200 - 512 MBytes
Module 1 Corsair DDR-SDRAM PC3200 - 512 MBytes



Software
Windows version Microsoft Windows XP Professional Service Pack 2 (Build 2600)
DirectX version 9.0c

[rallynavvie]

Added, thank you. Your marks are about what I'd expect from that system.

I still need to figure out a "performance quotient" for all these. I'm trying to utilize the PR clock rating and the encode time for the main "PQ" and then using different graph methods to incorporate overclocks and their worth to the chart. One of these days it'll just click, but with these results all over the place like they are.

[Cobra]

Waheed - download this, make a floppy from it and test your RAM. That might be what is causing your blue screen.

http://www.memtest.org/download/1.55.1/memtest86+-1.55.1.floppy.zip

(http://www.memtest.org/ - Main page)

We have very similar systems - same CPU, Asus motherboard (although mine is a VIA chipset), Corsair RAM. Nice, isn't it?

[fatty4ksu]

http://img251.echo.cx/my.php?image=x25dy.jpg

33 seconds on my athlon 4200X2


Good...God.

[Cobra]

http://img251.echo.cx/my.php?image=x25dy.jpg

33 seconds on my athlon 4200X2


Good...God.

[waheed]

Nice.... Wish I had a dual core CPU

[waheed]

http://img251.echo.cx/my.php?image=x25dy.jpg

33 seconds on my athlon 4200X2


Good...God.

Would it be possible for you to post the CPU-Z report.

[vhelp]

Hi guys, TGIF and good 4th to you all

@ fatty4ksu

That one beats mine by 1 second, hehe.

Question:

Does cpu-z *show* ram chip speeds ??

When I purchased a 512mb ram chip (to replace my burnt 256mb chip)
the new chip (from staples) had stamped on it, 333Mhz.

@ cobra (or others) ..

* Regarding the link U posted above on memory test. Can it be run under
Windows ??

* Or, are there any (hopefuly, direct links to .zips) that anyone are aware
of that can be run inside windows ??

Thanks,
-vhelp 3414

[rallynavvie]

No, MemTest really needs to be run of its own accord. If you were to test memory with the OS running it would interfere with whatever memory the OS or other applications are using. MemTest creates a boot floppy so just boot from it and run the full test at least once. You can stop it any time thereafter as it'll repeat the tests over and over until you stop it. It's a great way to stress test your memory too. I let it run for 24 hours and never got a single error, though I'm sure I worked the MCH and RAM heatsinks to their utmost.

[fatty4ksu]

vhelp, I don't think you used the right setting for your encode.

[funsoul]

holy guacamole those X2's are fast!

cobra moved my post over and came across this thread....here are my results:

CPU-Z Report

--------------------------------------------------------------------------------

CPU-Z version 1.30.


CPU(s)
Number of CPUs 2

CPU#1 APIC ID = 0
Name Intel Xeon
Code Name Prestonia
Specification Intel(R) Xeon(TM) CPU 2.40GHz
Family / Model / Stepping F 2 7
Extended Family / Model 0 0
Brand ID 11
Package mPGA-604
Core Stepping C1
Technology 0.13 µ
Supported Instructions Sets MMX, SSE, SSE2
CPU Clock Speed 3572.5 MHz
Clock multiplier x 15.0
Front Side Bus Frequency 238.2 MHz
Bus Speed 952.7 MHz
L1 Data Cache 8 KBytes, 4-way set associative, 64 Bytes line size
L1 Trace Cache 12 Kµops, 8-way set associative
L2 Cache 512 KBytes, 8-way set associative, 64 Bytes line size
L2 Speed 3572.5 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 256 bits

CPU#2 APIC ID = 6
Name Intel Xeon
Code Name Prestonia
Specification Intel(R) Xeon(TM) CPU 2.40GHz
Family / Model / Stepping F 2 7
Extended Family / Model 0 0
Brand ID 11
Package mPGA-604
Core Stepping C1
Technology 0.13 µ
Supported Instructions Sets MMX, SSE, SSE2
CPU Clock Speed 3572.5 MHz
Clock multiplier x 15.0
Front Side Bus Frequency 238.2 MHz
Bus Speed 952.7 MHz
L1 Data Cache 8 KBytes, 4-way set associative, 64 Bytes line size
L1 Trace Cache 12 Kµops, 8-way set associative
L2 Cache 512 KBytes, 8-way set associative, 64 Bytes line size
L2 Speed 3572.5 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 256 bits



Mainboard and chipset
Motherboard manufacturer ASUSTek Computer INC.
Motherboard model PC-DL, 1.0X
BIOS vendor Phoenix Technologies, LTD
BIOS revision ASUS PC-DL ACPI BIOS Revision 1007
BIOS release date 09/14/2004
Chipset Intel i875P rev. A2
Southbridge Intel 82801EB (ICH5) rev. 02
Sensor chip Winbond W83627THF
FSB Select 800 MHz
Performance Mode enabled

Graphic Interface AGP
AGP Status enabled, rev. 3.0
AGP Data Transfer Rate 8x
AGP Max Rate 8x
AGP Side Band Addressing supported, enabled
AGP Aperture Size 128 MBytes



Memory
DRAM Type DDR-SDRAM
DRAM Size 2048 MBytes
DRAM Frequency 238.2 MHz
FSBRAM 1:1
CAS# Latency 2.0 clocks
RAS# to CAS# 3 clocks
RAS# Precharge 3 clocks
Cycle Time (TRAS) 5 clocks
# of memory modules 4
Module 0 OCZ DDR-SDRAM PC3200 - 512 MBytes
Module 1 OCZ DDR-SDRAM PC3200 - 512 MBytes
Module 2 OCZ DDR-SDRAM PC3200 - 512 MBytes
Module 3 OCZ DDR-SDRAM PC3200 - 512 MBytes



Software
Windows version Microsoft Windows XP Professional Service Pack 2 (Build 2600)
DirectX version 9.0c


Start: 11/11/2005 5:49:26 PM
End: 11/11/2005 5:49:59 PM
Dealing time: 00:00:32
-------------------------------------------------------------
D:\tmpgtest\DIVX_Archive_NTSC6.m1v
Format: MPEG-1 720x480 29.97fps VBR 7000kbps
Video: C:\tmpgtest\VideoHelp Benchmark\DIVX_Archive_NTSC.avi
Audio: none

Result: Succeeded
Dealing time: 00:00:32
-------------------------------------------------------------

[rallynavvie]

I need a non-OCed result on that as well please. Thanks!

[funsoul]

Will do.

I'd also like to see more about fatty4ksu's setup/result....gotta be an o/c'd result. (told a friend with an X2 4600+ about this thread, he'll test and post result sometime this weekend)

[Paul William]

I wanted to get more of a real-world understanding of the implications the scores have on encoding a full-length movie, so I scaled the results up from the 7 second test file to a 60 minute encode.

The fastest score I found brousing this thread was 32 seconds for the dual zenon OC. Thats taking 4.57 seconds to encode 1 second of video (32/7 = 4.57), and 4.57 minutes to encode 1 minute of video and 4.57 hours to encode 1 hour of video!

That can be compared to someone who had an Athlon XP 1800 which took 99 seconds to encode 7 seconds of video which = 14.14 hours to encode 1 hour of video!

Of course, all this assumes that the encoding test is linear, i.e. scaleable. It would be interesting to see if it is, i.e. if the test clip is 14 seconds long, will it take twice as long to encode it? I would guess it isn't linear, as it probably depends on what is actually on each frame of video, i.e. if the video has lots of black, empty space, it probably would take less time to encode. ..

Thanks for doing the benchmarking everyone! Now I want to upgrade my Athlon XP 1800! - Paul

[funsoul]

Here's the same benchmark encode at stock speed:

stock: 0:48
overclocked: 0:32
=============
0:16 saved = 33% performance gain for 48% overclock (2400>3472)....where do you think I'm losing that 15% clockspeed gain???

Should be able to squeeze out a few more seconds after a full burning in and tweaks to xp.

CPU-Z Report

--------------------------------------------------------------------------------

CPU-Z version 1.30.


CPU(s)
Number of CPUs 2

CPU#1 APIC ID = 0
Name Intel Xeon
Code Name Prestonia
Specification Intel(R) Xeon(TM) CPU 2.40GHz
Family / Model / Stepping F 2 7
Extended Family / Model 0 0
Brand ID 11
Package mPGA-604
Core Stepping C1
Technology 0.13 µ
Supported Instructions Sets MMX, SSE, SSE2
CPU Clock Speed 2405.5 MHz
Clock multiplier x 18.0
Front Side Bus Frequency 133.6 MHz
Bus Speed 534.6 MHz
L1 Data Cache 8 KBytes, 4-way set associative, 64 Bytes line size
L1 Trace Cache 12 Kµops, 8-way set associative
L2 Cache 512 KBytes, 8-way set associative, 64 Bytes line size
L2 Speed 2405.5 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 256 bits

CPU#2 APIC ID = 6
Name Intel Xeon
Code Name Prestonia
Specification Intel(R) Xeon(TM) CPU 2.40GHz
Family / Model / Stepping F 2 7
Extended Family / Model 0 0
Brand ID 11
Package mPGA-604
Core Stepping C1
Technology 0.13 µ
Supported Instructions Sets MMX, SSE, SSE2
CPU Clock Speed 2405.5 MHz
Clock multiplier x 18.0
Front Side Bus Frequency 133.6 MHz
Bus Speed 534.6 MHz
L1 Data Cache 8 KBytes, 4-way set associative, 64 Bytes line size
L1 Trace Cache 12 Kµops, 8-way set associative
L2 Cache 512 KBytes, 8-way set associative, 64 Bytes line size
L2 Speed 2405.5 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 256 bits



Mainboard and chipset
Motherboard manufacturer ASUSTek Computer INC.
Motherboard model PC-DL, 1.0X
BIOS vendor Phoenix Technologies, LTD
BIOS revision ASUS PC-DL ACPI BIOS Revision 1007
BIOS release date 09/14/2004
Chipset Intel i875P rev. A2
Southbridge Intel 82801EB (ICH5) rev. 02
Sensor chip Winbond W83627THF
FSB Select 533 MHz
Performance Mode enabled

Graphic Interface AGP
AGP Status enabled, rev. 3.0
AGP Data Transfer Rate 8x
AGP Max Rate 8x
AGP Side Band Addressing supported, enabled
AGP Aperture Size 128 MBytes



Memory
DRAM Type DDR-SDRAM
DRAM Size 2048 MBytes
DRAM Frequency 167.0 MHz
FSBRAM 4:5
CAS# Latency 2.0 clocks
RAS# to CAS# 2 clocks
RAS# Precharge 2 clocks
Cycle Time (TRAS) 5 clocks
# of memory modules 4
Module 0 OCZ DDR-SDRAM PC3200 - 512 MBytes
Module 1 OCZ DDR-SDRAM PC3200 - 512 MBytes
Module 2 OCZ DDR-SDRAM PC3200 - 512 MBytes
Module 3 OCZ DDR-SDRAM PC3200 - 512 MBytes



Software
Windows version Microsoft Windows XP Professional Service Pack 2 (Build 2600)
DirectX version 9.0c

Start: 11/13/2005 4:43:09 PM
End: 11/13/2005 4:43:57 PM
Dealing time: 00:00:48
-------------------------------------------------------------
D:\tmpgtest\DIVX_Archive_NTSC8.m1v
Format: MPEG-1 720x480 29.97fps VBR 7000kbps
Video: C:\tmpgtest\VideoHelp Benchmark\DIVX_Archive_NTSC.avi
Audio: none

Result: Succeeded
Dealing time: 00:00:48
-------------------------------------------------------------

[btrager]

CPU-Z Report
CPU-Z version 1.30.

CPU(s)
Number of CPUs 2
CPU#1 APIC ID = 0
Name AMD Athlon 64 X2
Code Name Manchester
Specification AMD Athlon(tm) 64 X2 Dual Core Processor 4600+
Family / Model / Stepping F B 1
Extended Family / Model F 2B
Brand ID 5
Package Socket 939
Core Stepping BH-E4
Technology 0.09 µ
Supported Instructions Sets MMX, Extended MMX, 3DNow!, Extended 3DNow!, SSE, SSE2, SSE3, x86-64
CPU Clock Speed 2823.2 MHz
Clock multiplier x 12.0
Front Side Bus Frequency 235.3 MHz
L1 Data Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L1 Instruction Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 16-way set associative, 64 Bytes line size
L2 Speed 2823.2 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 128 bits
CPU#2 APIC ID = 1
Name AMD Athlon 64 X2
Code Name Manchester
Specification AMD Athlon(tm) 64 X2 Dual Core Processor 4600+
Family / Model / Stepping F B 1
Extended Family / Model F 2B
Brand ID 5
Package Socket 939
Core Stepping BH-E4
Technology 0.09 µ
Supported Instructions Sets MMX, Extended MMX, 3DNow!, Extended 3DNow!, SSE, SSE2, SSE3, x86-64
CPU Clock Speed 2823.2 MHz
Clock multiplier x 12.0
Front Side Bus Frequency 235.3 MHz
L1 Data Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L1 Instruction Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 16-way set associative, 64 Bytes line size
L2 Speed 2823.2 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 128 bits

Mainboard and chipset
Motherboard manufacturer ASUSTeK Computer INC.
Motherboard model A8N-SLI Premium, 1.02
BIOS vendor Phoenix Technologies, LTD
BIOS revision ASUS A8N-SLI Premium ACPI BIOS Revision 1007
BIOS release date 08/08/2005
Chipset nVidia nForce4 rev. A3
Southbridge nVidia nForce4 MCP rev. A3
Sensor chip IT 8712
Graphic Interface PCI-Express
PCI-E Link Width x16
PCI-E Max Link Width x16

Memory
DRAM Type DDR-SDRAM
DRAM Size 2048 MBytes
DRAM Frequency 235.3 MHz
FSBRAM CPU/12
CAS# Latency 3.0 clocks
RAS# to CAS# 3 clocks
RAS# Precharge 3 clocks
Cycle Time (TRAS) 7 clocks
Bank Cycle Time (TRC) 10 clocks
DRAM Idle Timer 16 clocks
# of memory modules 2
Module 0 Corsair DDR-SDRAM PC3200 - 1024 MBytes
Module 1 Corsair DDR-SDRAM PC3200 - 1024 MBytes

Software
Windows version Microsoft Windows XP Professional Service Pack 2 (Build 2600)
DirectX version 9.0c

Start: 10/14/2005 11:08:22 AM
End: 10/14/2005 11:08:48 AM
Dealing time: 00:00:26
-------------------------------------------------------------
C:\Documents and Settings\Brian\Desktop\VHB\VideoHelp Benchmark\DIVX_Archive_NTSC.m1v
Format: MPEG-1 720x480 29.97fps VBR 7000kbps
Video: C:\Documents and Settings\Brian\Desktop\VHB\VideoHelp Benchmark\DIVX_Archive_NTSC.avi
Audio: none

Result: Succeeded
Dealing time: 00:00:26
-------------------------------------------------------------

[ronnylov]

btrager, your CPU is overclocked from 2,4 GHz to 2,8 GHz.
Is it correct that you get 28 seconds non-overclocked? I could not find that result other than in the first post in this thread.

[rallynavvie]

Is it overclocked?

[ronnylov]

Yes, the 4600+ should run at 2400 MHz default speed. btrager has posted the result 26 seconds at 2823 MHz. Or is there a post with the result 28 s at 2400 MHz also? I'm interested in the default speed result as well as overclocked result.

EDIT: 28 seconds at 4600+ default speed seems to be correct. See my overclocked result below (X2 3800+ overclocked to 4600+ speed).

[ronnylov]

AMD Athlon64 X2 3800+ at default speed (not overclocked)



CPU-Z Report

--------------------------------------------------------------------------------

CPU-Z version 1.31.


CPU(s)
Number of CPUs 2

CPU#1 APIC ID = 0
Name AMD Athlon 64 X2 3800+
Code Name Manchester
Specification AMD Athlon(tm) 64 X2 Dual Core Processor 3800+
Family / Model / Stepping F 3 2
Extended Family / Model F 23
Brand ID 5
Package Socket 939
Core Stepping JH-E6
Technology 90 nm
Supported Instructions Sets MMX, Extended MMX, 3DNow!, Extended 3DNow!, SSE, SSE2, SSE3, x86-64
CPU Clock Speed 1999.7 MHz
Clock multiplier x 10.0
Front Side Bus Frequency 200.0 MHz
L1 Data Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L1 Instruction Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 16-way set associative, 64 Bytes line size
L2 Speed 1999.7 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 128 bits

CPU#2 APIC ID = 1
Name AMD Athlon 64 X2 3800+
Code Name Manchester
Specification AMD Athlon(tm) 64 X2 Dual Core Processor 3800+
Family / Model / Stepping F 3 2
Extended Family / Model F 23
Brand ID 5
Package Socket 939
Core Stepping JH-E6
Technology 90 nm
Supported Instructions Sets MMX, Extended MMX, 3DNow!, Extended 3DNow!, SSE, SSE2, SSE3, x86-64
CPU Clock Speed 1999.7 MHz
Clock multiplier x 10.0
Front Side Bus Frequency 200.0 MHz
L1 Data Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L1 Instruction Cache 64 KBytes, 2-way set associative, 64 Bytes line size
L2 Cache 512 KBytes, 16-way set associative, 64 Bytes line size
L2 Speed 1999.7 MHz (Full)
L2 Location On Chip
L2 Data Prefetch Logic yes
L2 Bus Width 128 bits



Mainboard and chipset
Motherboard manufacturer
Motherboard model 939Dual-SATA2, 1.00
BIOS vendor American Megatrends Inc.
BIOS revision P1.20
BIOS release date 08/26/2005
Chipset ALI M1695 rev. 00
Southbridge ALI M1563 rev. 70
Sensor chip Winbond W83627HF




Memory
DRAM Type DDR-SDRAM
DRAM Size 2048 MBytes
DRAM Frequency 200.0 MHz
FSBRAM CPU/10
CAS# Latency 2.5 clocks
RAS# to CAS# 3 clocks
RAS# Precharge 3 clocks
Cycle Time (TRAS) 8 clocks
Bank Cycle Time (TRC) 11 clocks
DRAM Idle Timer 16 clocks



Software
Windows version Microsoft Windows XP Professional Service Pack 2 (Build 2600)
DirectX version 9.0c




TMPGEnc result:

Start: 2005-11-09 20:32:59
End: 2005-11-09 20:33:33
Dealing time: 00:00:34
-------------------------------------------------------------
H:\DIVX_Archive_NTSC.m1v
Format: MPEG-1 720x480 29,97fps VBR 7000kbps
Video: D:\Download\VideoHelp Benchmark\DIVX_Archive_NTSC.avi
Audio: none

Result: Succeeded
Dealing time: 00:00:34
-------------------------------------------------------------
