    ...With Illustrations

    In this guide I will explain how to convert the said file-types to DVD format. There are many possibilities and this is not the only possible way. Throughout the guide I will explain why every tool was used in place of another and offer as many options as I can think of. If you find any mistake or have any questions/comments on this guide please e-mail me at, I will answer as soon as I am able. Now onto the guide.


    The following tools are for quick reference only, you will not need them all. They will appear through the guide as they are needed. Other tools appear in the guide as alternatives.

    TMPGEnc Xpress
    Sony Vegas

    Womble MPEG-VCR
    DVD Menu Studio
    DVD Maestro
    Nero Burning ROM
    ~10GB HDD Space

    1. Separating audio and video streams
    2. Encode Video Stream
    3. Encode Audio Stream
    4. Editing project
    5. Authoring & Creating a Menu
    6. Authoring & Creating a Menu cont'd...
    7. Testing, Roasting and Comments


    Section 1 - Separating audio and video streams
    We will begin by gathering information on the file then separating the subtitle, audio and video streams. Please prepare a pen and paper or open notepad since there is some information that you will be taken here and used later. The reason we will separate the streams is because though our encoding tool, TMPGE Xpress, is excellent for video encoding, it cannot handle many audio formats and often causes sync problems. It is highly recommended to follow this chapter.

    Step 1 : Gathering information

    We will be using MediaInfo to get information on the movie file. GSpot may also be used to gather the required info if it’s an AVI file.
    1. When you first run MediaInfo it will ask you to choose your preferences. They are easily changed from within the program, so don’t worry about making the right choice and press ok.
    2. Open the movie file. File > Open > File *It is possible to open folder if you have multiple files that you wish to encode to DVD. I opened a folder already in my example. I’m using the tree view.
    3. Write down the Video Codec, Aspect Ratio, Frame rate, and Audio Codec.

    Step 2 : Download the required codecs

    You could skip this step if you have the codecs already installed on your computer. If you don’t then you’ll have to get them from As a general rule you should not have any codec packs installed on your computer with the exception of the matroska pack. This is not advertising, it’s for your own safety. You want the fewest codecs possible, not the most.

    Step 3 : Lets’s start!

    *Don’t overwork your computer! Whether you are demuxing an audio or video stream, or actually encoding something overworking your PC may cause undesirable effects. (ie; Corrupt files.) Be sure after every-step to do a quick test of the beginning and ending of each file. I had 13 to practice with making this guide. I ran into corrupt files 3 times

    We will be using VirtualDubMod to extract the different streams from the container file. There is sometimes a problem where VirtualDubMod doesn’t like MKV files. This doesn’t happen all the time, but it does happen. If that’s your case then follow this guide until step 4.You may also need the matroska pack for it’s decoders.
    1. Run VirtualDubMod and open the video file; File > Open Video file… *You may get an error like this, just click no and ignore it:
    2. Click streams > Streams List. From here you will be extracting your audio stream(s), and subtitles…
    3. Choose the audio stream you want to extract and choose save wav. If the audio is AC3, you will choose Demux instead since all the audio will eventually be changed to AC3 anyhow. Select where you wish to save it then continue…
    4. Choose the subtitle stream (will show as a text file) and choose Demux, save this as an SRT file.
    5. Now you will disable all the streams and press ok. :
    6. Click file > Save As… You will save as AVI, direct stream copy. Skip the next steps if you don't need to do a batch encode. If you're project has several files to encode you should use the batch encode option. Check 'Don't run this job now...' if you plan on doing a batch encode. Click Save. :
    7. For batch encode follow steps 1 - 6 on all your files all the files in your project. When they have all been entered, click File > Job Control...(F4) > Click Start :
    You now have your AVI with the video stream only, you will have wav/AC3 audio files and possible SRT files aswell. That’s perfect, test the files to be sure they have been processed properly and that they’re of approximately the correct length.


    Section 2 - Encode Video Stream
    We will be using TMPGE Xpress to encode the AVI Video files to m2v video files so that they will be DVD compliant. This can just as easily be done with TMPGE Plus, CCE, MainConcept or another encoder. I have chosen TMPGE Xpress because it offers amazing quality and many options that are not available with the other said encoders, with the exception of TMPGE Plus. Xpress has a more user-friendly approach than Plus does

    Ready : TMPGE Xpress
    1. Run TMPGE Xpress and choose 'Start New Project'

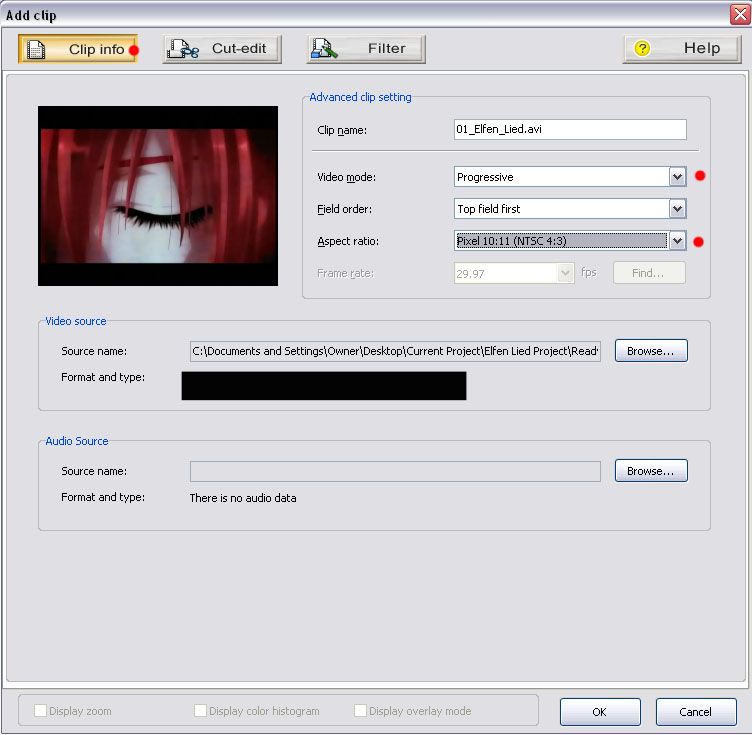

    2. Select 'Add File...' You will now have a menu with several tabs. On the 'Clip Info' tab you will set video mode to 'Progressive', and Aspect Ratio to what was listed in MediaInfo. NTSC is for North America & Japan, PAL if for Europe:

    3. In the 'Filter Tab' you will remove any letterboxing from the video stream if it appears and is constant through the whole movie.Firstly, you will check to see if your movie has letterboxing by scrolling the preview bar across the length of the movie, check the beginning, middle and end, sometimes it only appears in the beginning. If it does not appear, skip this step! If you have hardcoded subtitles it is a bad idea to remove the letterboxing since you will probable be cutting the subs out at the same time. To remove letterboxing ckeck Crop, check Activate Image Crop, and adjust top/bottom to remove the letterboxing. Now press OK. (You may fiddle with the other options to improve the picture quality to your likings, however this veries case by case and is simplistic to figure out) Do this for all the video files in your project.

    4. Click the 'Select Output' tab and choose DVD PAL/NTSC (Depending where you live). Choose again the Aspect Ratio, Set Rate Control Mode to VBR for highest quality (or CBR if you want it to encode fatser), and Ignore the Audio. Click Select.

    5. Here you get to play around a bit. Leave the Image resolution to the default highest. You don't want to compress the image. You aren't going to tough the Average Bitrate either, that will be set in a minute. Set the Audio Bitrate to 192, since that will be what it is set to later. Set 2-pass VBR under Advanced Encoder settings. Set the min. bitrate to 200 and the max to 8000. Don't allow padding since Xpress won't require it. Your bitrate is already set at a max of 8000kbps, so the other option is pointless. Now you should have DVD 4,7GB (UDF) selected by default. You will notice the Average Video Bitrate has just been set for you after adjusting the Capasity, set capasity to 99%. Press OK.

    6. You now have yet another screen that shows your settings. You will adjust video mode to 3:2 pulldown if your encoding NTSC, or Progressive if it's for PAL. Set Motion Search Precision to High, or Highest. Leave Advanced settings to default, change Output Stream Type to ES (Video Only) and press Encode.

    7. Now there is only a few more settings to toggle. You want your files seperate to keep the audio in sync for later, so select output clips seperately and choose the output destination. In the Encoder settings tab choose your preferences. I always choose 'no preview'. Puts less stress on my baby
    This process will take a long time. Go get a coffee or leave it to work overnight. Once the process is done you'll want to test your files ate the beginning, middle and end to be sure they're not corrupt


    Section 3 - Encode Audio Stream
    We'll be making the best out of what we've got and turn whatever stream we were given into AC3. We'll be using BeSweet because it's free and can easily convert wav files to AC3. I'm taking suggestions on better apps for this job, but at the moment I will show how it's done with BeSweet. If your source was AC3 already you'll just have to skip to step 2.

    **There have been MANY problems using BeSweet to encode to AC3; so many that I can no longer recommend BeSweet for this section. I will soon edit the guide with illustrations to use your choice of Sony Vegas or FFMPEGGui. BeSweet uses the FFMPEGGui engine to output the AC3, so this will first be tested. I only recommend Sony Vegas for this part. (I'm using Sony Vegas+DVD Production Suite 5.0) I will edit the guide by sunday January 23rd, until then email me if BeSweet doesn't work for you.

    Step 1 : BeSweet
    1. Run BeSweetGUI.exe and you should get this screen:
    2. You must tell it the location of your input files (the wav files) and output files.

    3. Set it to output AC3 like in the 1st picture; the option is below 'BeSweet Profiles'.
    4. Finally click 'Batch Mode' if you have multiple files to convert, or 'WAV to AC3' if you only have one. It may ask you to confirm the Input, Output or BeSweet.exe location. For BeSweet.exe browse to the folder containing BeSweet.exe.
    5. If you pressed Batch Mode you'll have to drag and drop the wav files into the window then hit 'BeSweet's List -> Multiple AC3s'. You'll get a window like this:
    6. They'll all be saved to the set output directory. You'll know when it's started encoding by the opening of a DOS prompt:
    Step 2 : AC3Fix

    Sadly this app doesn't have a built in Batch function. It is possible to make a bat file in notepad, however I wasn't able to get it to work properly that way. If you could figure a way to do it please let me know and I'll put it in.
    1. Copy AC3Fix.exe and AC3GUI.exe to the same location as your AC3 files. It won't process unless they're in the same directory.
    2. Run the AC3GUI; Click 'Open', select the AC3 file you want to fix, ok. Click 'Save' and choose the filename and output folder. The output can be anywhere you like, it doesn't have to be in the same directory as AC3Fix.exe. When you name the file be sure to add the .AC3 extention, otherwise it will add ".fixed.ac3" at the end.

    *The reason we use AC3Fix is because it will fix bad frames and corrupt sectors and basically test the Ac3 for us. Also BeSweet sometimes has problems making DVD compliant Ac3 audio, AC3Fix fixes that.


    Section 4 - Editing Project
    Now we have everything encoded and transcoded! There are 2 main reasons for this section. Firstly, up to now we have not been able to cut, join or crop parts of the movie due to the effect it would have on the audio/video sync. We will now multiplex and be able to edit the movie as we see fit. ie; removing the intro, commercials and credits. The second reason is because some authoring apps do not accept seperate audio and video streams. We are going to use TMPGE Xpress to multiplex the audio and video and MPEG-VCR to edit it. I know TMPGE Xpress can edit and cut parts out of the video, but MPEG-VCR is just much faster. *The authoring tool I use is DVD Maestro, it requires you to have the files Demultiplexed! If you are following this guide entirely, you will not be needing to Multiplex the audio and video streams (unless there is something you need to edit). Check if your authoring tool can handle individual streams before doing a step you don't need.

    Step 1 : Multiplexing with TMPGenc Xpress
    1. Run TMPGE Xpress and select MPEG Tools...
    2. Choose MPEG-2 Program (VBR) from the drop-down menu, select the Video input(m2v), Audio Input(ac3) and the Output(mpg). If the Video and Audio files have the same name they will be selected automatically by TMPGE Xpress.

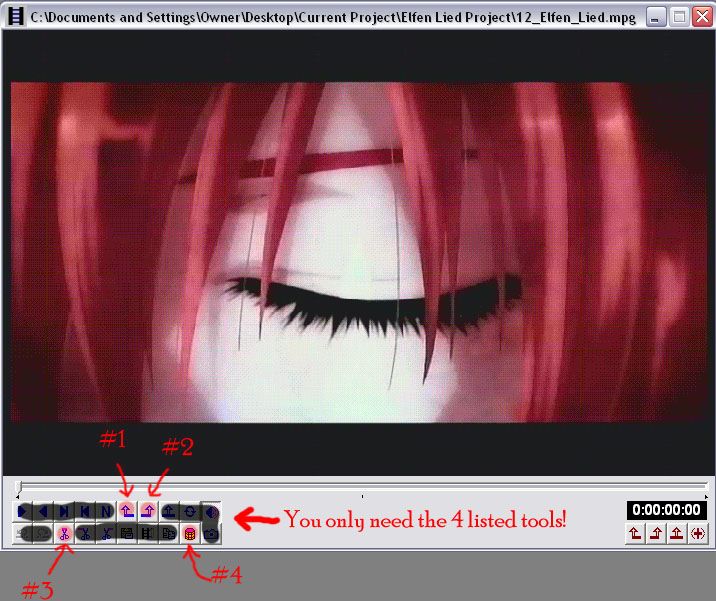

    Step 2 : Editing with MPEG-VCR[list=1][*]Run MPEG-VCR, click File > Open MPEG Movie...
    [*]Now here there are only 4 tools you need.
    1. Mark In
    2. Mark Out
    3. Cut
    4. Save
    First you edit out commercials and other parts in the mid section of the movie. Mark In at the beginning of the part you want to cut, Mark Out at the end of the part you want to cut, click Cut. For the Intro and Credits you Mark In where you want the movie to start, Mark out where you want the movie to end, and click Save. Choose the filename (output directory) and hit save. Do not touch any other setting as it will cause a reencode, and you don't want that![/list:bc229f2460]


    Section 5 - Authoring & Creating a Menu
    This is the most custom and creative part of making your own DVDs, in truth; the only fun part. Now you may not want a menu, in that case you need to use a different authoring app and guide. Remember at the beginning I told you to check, well they have guides for a number of authoring apps, click here to see that listing. They have their own guide for DVD Maestro aswell, check that out too. We will be using DVD Maestro to author, and DVD Menu Studio to make the menus. Now, DVD Menu Studio isn't the only choice to make the menus, nor is it the best. It's the easiest. The best is Photoshop CS, if you know how to use Photoshop well, then use that, I will make a note at the end of this section on what is needed.

    Step 1 : DVD Menu Studio
    1. Run DVD Menu Studio, you'll get a screen like this:
    2. First thing you want to do is get a background image or you could create one with the app.[list:bc229f2460]
    3. To Import an Image go to File > Import... Choose Image. Don't worry about it being too big, you can resize it to fit the blank screen in a second.
    4. To make your own I suggest using an app you're good with (ie; photoshop) then import the Image. If you want to make one on your own, click here. It's crappy, but I'm not up to teaching Graphics methods. Ask around in the Graphics section.

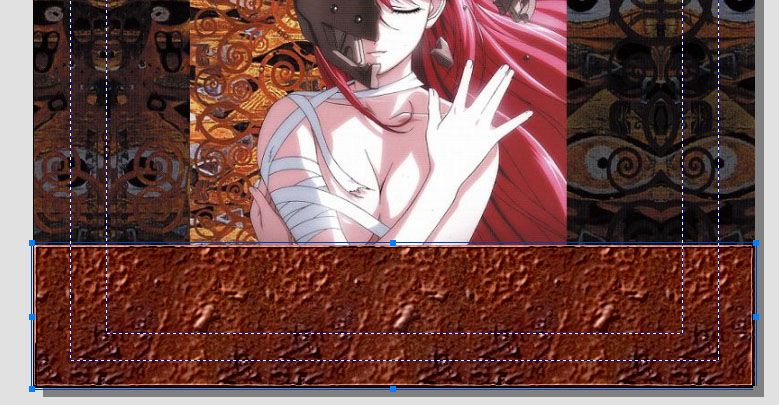

    [*]I now use the Rectangle Tool to cut out the bottom of the picture, I'm gonna put the title name there:
    [*]Play around with the options at the bottom while the rectangle is selected to render it nicely. Check what I did:

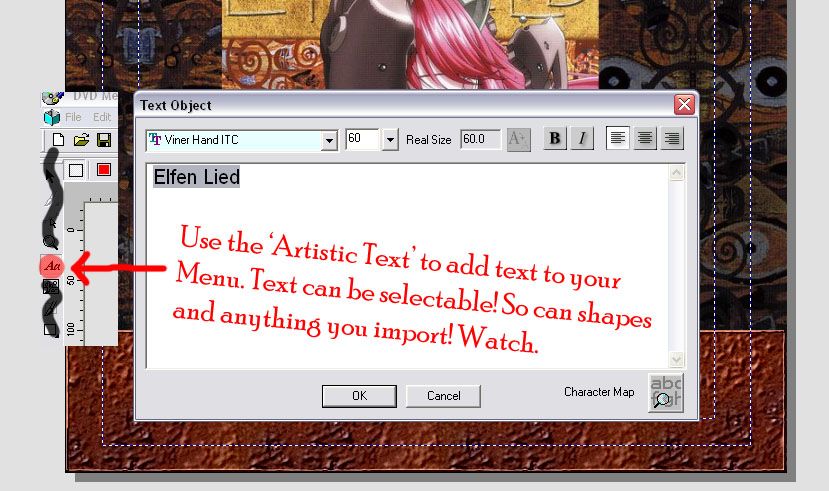

    [*]Now to add some Text. Click the 'Artistic Text' tool, it's above the Rectangle tool on the left.
    [*]I added a bunch of text, and made it 'fancy' with some of the generic rendering tools (Found at the bottom of the screen) You can edit what you want as long as it's selected. Notice everything I added is within the smaller of the 2 boxes. That's the 'safe zone'. Anything of importance goes in there.
    [*]Now we are going to add Subpictures. Add these to the items you want to be selectable in your menu when we author with DVD Maestro. I added it to Play, Choose Episode and Options.
    [*]Now preview your menu, and choose your color scheme for the buttons so we could send it off to DVD Maestro. You have 4 subpictures. Experiment with them. Sub 1 is the main color, Sub 4 will make a colored box on the hot-spot. There are 3 areas that need color mapping. Unselected, Selected, and Activated. Activated would be when you press 'enter' on your remote. Check NTSC Safe colors if you're making a menu for NTSC.

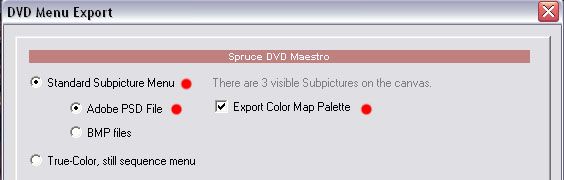

    [*]Now we export; Click the 'DVD Export Menu' button at the top center beside the preview buttom (Also, File > DVD Export Menu). Choose PAL/NTSC, DVD Maestro > Next.

    [*]Now choose your Output destination and hit Export![/list:bc229f2460]
    Step 2 - DVD Maestro

    *SRT files are not accepted by DVD Maestro. Click here to change your SRT subs to an acceptable format.
    1. When you open DVD Maestro you will get an error message, this is because you're missing some unrequired hardware. Ignore the error:
    2. We'll start by Importing Media assets. In the bottom right, there's a beige box. Right-Click in the box and choose 'Import Media Assets'. If you haven't already demuxed your MPGs to m2v and ac3 Maestro should do it for you. If it can't (my situation) you'll have to demux with TMPGE Xpress. Do it the same way you Multiplexed in the last section, but choose Demultiplex. You'll also import any tracks you want to play in your menus, and the menu that you exported from DVD Menu Studio. The only thing you cannot import in this fasion is your SRT file for your subs. I'll get to that later. DVD Maestro will really scan your files to be sure there's nothing wrong with them. If it complains about something, that means you made a mistake. No coasters with this app
    3. Right-Click on Untitled.dvd (Go to File > Save as... to give your project a name), now as I was saying, right-click on Project.dvd and select Properties. You will have 3 tabs; General, Choose NTSC/PAL, Set Parental Control Rating; Disk Image, Give the DVD a Name, Set copyright Protection (Yes, now you can protect you stuff against people like the pros!); Replication, Set regional Protection.
    4. Now you will add movies equal to the number of m2v files you have. Don't worry about joining, Maestro will make it seamless. If you have episodes of an anime or TV show just put each episode as a movie.
    5. Now double click the first Movie; you will drag and drop the m2v and ac3 files from the asset bin to this window. If you right-click the ac3 you could set the language or create a perfect sync file. I recommend syncing your movies always! To add the sub, right-click the empty box to the right of the "ABC" and choose Import Subtitles File. For chapters I manually set chapters every 3 minutes. In the top left corner you see a zoom option, zoom out a bit before you try and add chapters:
    6. After adding the files right-click Movie 1 and select Properties. You have the ability to put restrictions on what commands the user can do. You may want to disable all options relating to subtitles or audio switching if you have a single audio track without subs.
    7. Now in the Menus Branch, add a new menu and drag & Drop the DVD Menu Stdio Menu you exported from the asset bin to the menu window. You're going to have to draw rectangles over all the hot-spots for Maestro to recognize them see by pic:
    8. Now the color mapping you did in DVD Menu Studio should have come to Maestro, check to be sure. If it hasn't then play with the colors to make it the same in the color mapping tab. On the Advanced tab click 'auto-assign'. Now go to the Buttons tab. You'll notice the navigation boxes. Click on 1, in the window and the navigation boxes will show you what happens if someone were to press up/down/left/right on a remote:
    9. On the Playback control tab you will be able to add an audio track, if you do make the track loop.

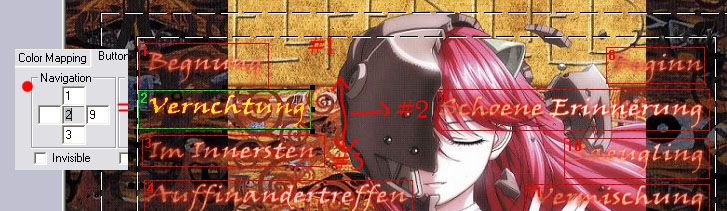

    10. Once all your Menus and Movies are put inyou will have to go to View > Connections. Here's where you have the master controls. You select what every press of a button does. Look at mine:
    11. You change the connections by right-clicking selecting the connection.

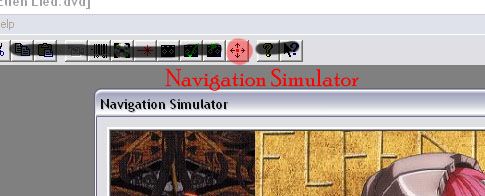

    12. Now test your menus with the Navigation Simulator, make sure your buttons lead to where they're supposed to. You won't be able to view the video but you could see the 1st frame and you could jump between menus.
    13. Finally you'll want to compile or create a disk image, both options are under Tools, or click one of these buttons (There is a known problem with 'create disk image', I recommend using 'compile'):

    Now I sincerely recommend that you search for additional information on DVD Maestro as it is capable of much more than what I've just described. This is a basic menu just to get your hands dirty and perhaps interested in learning more.


    Testing, Roasting and Comments

    Part 1 - Testing and Roasting

    Now no matter how professional DVD Maestro is, computers do mess up. You're going to want to test your VIDEO_TS folder or ISO in a DVD Playing app like PowerDVD or WinDVD. VLC is a freeware you could test an ISO on. Make sure the menus go where they're supposed to, the subs show up. The audio is in sync. The right video is with the right audio... etc. After that you're going to burn your project to DVD-R.Don't burn at Max Speed, 2x - 4x is good.

    Part 2 - Comments

    I want to say thanks to the suprnovaforums for allowing me to learn and build my interest in DVD converting and production. and for their wealth of knowledge. for some new ideas

    If there are any questions or comments about this guide, feel free to e-mail me at

    *To any mod or admin, if my chance there are still links or mention to warez in this guide, I apologize. I read through it and removed everything I noticed that was related to such subjects to follow the rules of the forum.
    Quote Quote
  2. Do I submit this guide using this link, or will it be done for me?

    I have to drop the img sizes too, sorry. I'll get on that asap.
    Quote Quote
  3. was wondering, does it keep the same subtitle font? or will it jus have a random one?
    Quote Quote
  4. It takes the colors you choose in SRT2SUP. STR2SUP guide.
    Quote Quote

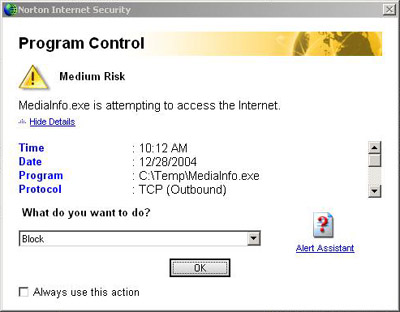

  5. Media Info set off my firewall, is it spyware?

    Its trying to contact "" (
    Quote Quote
  6. MediaInfo isn't spyware, it's an opensource project hosted on scourgeforce. It may have been looking for updates unless you got from a source other than scourgeforce.
    Quote Quote
  7. Is there a way to turn it off?
    Quote Quote
  8. Is there a way to make the movies themselves not get cut off (past the 'TV safe zone') when authoring with DVDmaestro? Ive found I can keep it from happening if I place a black border around the video while encoding, but Ive noticed that my comercial 16:9 DVDs do not have these black borders and they also dont go past the safe zone on my TV. So is there an authoring technique used to prevent this? Thx.

    edit: Really helpful guide btw.
    Quote Quote
  9. @Gastor; I'm not sure, you could block it with your firewall if you like. It hasn't caused me any problems and my spyware cleaners don't ever touch it.

    @AVNerd; Do you mean the menu? In DVD Maestro and DVD Menu Studio both there is a 'safe box' where nothing should be cut from. Keep the main aspects of your menu in there. As for the video itself, it's usually unnoticable unless you have hardcoded subs, in which case you have to play around with the TV settings or add borders as you said.

    Retail DVDs are also cropped, the TV crops any input. The retail DVD's are made in such a way that you don't lose anything importand.
    Quote Quote
  10. I just double checked and youre right.... My retail DVDs get cut as well... Thanks Ecko. Your guide helped me a lot!! Hopefully I'll be able to teach people as much as you've taught me some day soon.
    Quote Quote
  11. Just as a note since this happened a few times already, when you email me make sure you leave a return address. Generally I can just hit reply; but I've gotten 3 (Unknown Sender) emails in the last week and I simply dunno how to reply to the email :P
    Quote Quote
  12. In section 3 - Step 2 : AC3Fix:

    "Run the AC3GUI"

    What is this one? Where do I get it?
    Quote Quote
  13. I have just a small question. When you get to section 2, step 5. How big can the output size be? That dotted like stopps at 4.2gb, but i have discs that say 4.7 Can I go over that point? Or is it reduced for some reason?

    OK Thank you V
    Quote Quote
  14. For 4.7 discs it is 4.2 size it should be. Dont know why but thats the way it is. Just keep on going
    Quote Quote
  15. Excellent guide! It's helped me quite a bit....just keep having problems with subtitles, but will figure it out later

    However, I do have a question. I've got a series that I'm trying to do similar to what you did, but my question about the aspect ratio in the TMPGEnc Xpress 3.0 Clip Info screen. Basically, what is the difference between Pixel 10:11 (NTSC 4:3) and Image 4:3? Is one better to use for video than the other?

    Quote Quote
  16. Ok, I have run into a problem, I got to section 4 step 1, and when i encode it with TMPGEnc, I have two audios, so like... how is this gonna work? Since I can only apply one
    Quote Quote
  17. Originally Posted by shadomic hedgehog
    Ok, I have run into a problem, I got to section 4 step 1, and when i encode it with TMPGEnc, I have two audios, so like... how is this gonna work? Since I can only apply one
    You can skip that part if you're going to be using DVD Maestro. Not trying to be smart, but Ecko_Blue stated just under Section 4 but before the actual Step 1 that this section could be skipped and to check your authoring software to see if it can handle dual streams like DVD Mastro.

    Quote Quote
  18. I have an Audio problem now and I think I know where I might have went wrong. OK, When I try to import the audio files to maestro, I get this error message

    Media Detection Error (0xc10b0001)

    Ok, now this is the process my audio went through, and I think I messed it up right at the start.

    1) Opened OGM files in virtuadub mod
    2) demuxed the 2 audio files, and saved them as ac3. *I think I messed up here, I should haev saved as OGG, and then went to change it to ac3.
    3) I couldn't figure out how to turn it to ogg-ac3 in besweet. So I figured I would make it ac3 through virtuadub
    4) Then I fixed it up with ac3fix. Im guessing it didnt work, i shouldn't have skipped the step.

    Is that probably what messed it up? The audio file plays just fine. Maybe I should try one of the other recommended programs for that step, to go ogg-ac3. Or would it be something different, I just noticed the guide says its ok to have a source ac3 file for that step (Section 3). So, any Idea why it didn't work?
    Quote Quote
  19. 2) demuxed the 2 audio files, and saved them as ac3. *I think I messed up here, I should haev saved as OGG, and then went to change it to ac3.
    Actually, you should have demuxed the audio and saved as a .wav file, then convert the .wav to .ac3.

    Also, you may run into a problem with BeSweet. I converted mine using FFMPEGGui and it did a great job!

    Good luck!

    P.S. If you adding subtitles, let me know how they turn out. I'm having a small issue with mine...not turning out like the originals as I'd like.
    Quote Quote

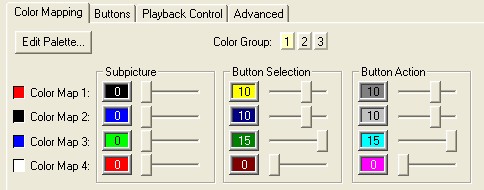

  20. Ran into a slight problem with menus on a couple of compiled DVDs using the guide...if anyone else has a problem importing the menus, here's the 'easy' correct.....

    1) Set 'Color Map 4' in all categories to "0" (this will take care of any hilighted background color)

    2) Set all colors in the 'Subpicture' category to "0" (this should give you back the original text color)

    Below is an example of what I had to do with mine.

    Quote Quote
  21. Well first I want to thank you for your post. It taught me a lot about OGM and MKV files. A couple of things I did different and I think you will like the ideas. 1- BEFORE seperating audio and video, I use VirtualDubMod to cut my videos. It does a great job on OGM and MKVand AVI files. I even D/Led a plugin for .MOV files but I havent tried it yet. I did the same series you did on your post and cut almost 1gb out. I kept 1 opening, cut the opening off all the rest, cut all the closings except for the last (since the story was still running). That make 1gb less to process and cut the step of multiplexing-cutting-demultiplexing. That sounds like a day or two right there but I dont know. Hmmm, I guess that was #2 different. Also I use ffmpeggui to make my waves to ac3. It seems to do a great job but it doesn't to more than 1 file at a time. If you think I am wrong, feel free to say so, but please explain why.[/url]
    Quote Quote
  22. mme1; ffmpeggui uses the same engine as BeSweet to encode to AC3. Many people have emailed me that the output from BeSweet was incompatible with either TMPGEnc or DVD Maestro. I use the Sonic Scenarist - AC3 Transcoder or Sony Vegas if I want more control.

    I considered doing the cropping with VirtualDubMod at the beginning, however I was unsure of the possible effects if VDubMod wanted to re-write the header for the audio. I haven't tested it yet, but it's a good idea to test.

    Also, VirtualDubMod has a problem saving OGG as WAV (for me recently anyways), I've used Foobar2000 to convert the OGG to WAV, then Scenarist or Sony Vegas to make the AC3.
    Quote Quote
  23. I have been having problems lately also but going from .mkv to .wav . "AVI MPEG WMV RM to MP3 Converter" seems to do the jobs for me when VirtualDubMod wont. I am sure its a codec problem but havent learned enough on installing new codecs yet to fix it. I will maybe try the Sonic Scenarist and see if I like it better. So far this has been my only problem.
    I havent noticed any sync problems or anything like it. The worst is some times the key frame starts in a section of film a few frames before where I try to cut and it goes all the way back to there when I cut. But thats easy to fix when I Author.
    Quote Quote
  24. Ive been using this guide an have got to Section 4, Step 1. I have come to try to add the audio to the mpeg part on step 2 and when i try to add it after using ac3Fix it says "Invalid MPEG Audio Stream" why would this be?
    Quote Quote
  25. Member
    Join Date
    Dec 2003
    United Kingdom
    Search Comp PM
    Superb guide and I am using it to convert television programmes captured using a DV device to DVD.

    However, just a couple of questions..

    i) You state that on the final screen, for PAL select Progressive (i.e. Deinterlaced). However, my original source goes through a analogue to digital convertor hence it is Interlaced to begin with. Also, most broadcasts here in the UK are interlaced too (and we only expect to go Progressive once HDTV arrives). So, what will selecting Progressive as you suggest achieve?

    Does the fact that at the Clip Info screen it said Interlaced make a difference to what I should choose here?

    And if I should choose Progressive as you suggest, should something be changed in the deinterlacing filter?


    ii) Is there any huge implications in selecting the Motion Search Estimate to Standard (which is default) opposed to High or Highest because it saves a massive amount of encode time but is the quality loss not worth it?


    TheGame7 - "I am 'The Game' because I am that damn good!"
    Quote Quote
  26. Member
    Join Date
    Jul 2005
    North America
    Search Comp PM
    in section 1, step 3 using virtualdubmod i cant create .wav files for the audio streams of my movie because they are .ogg files (vorbis codec). when i press the "save wav" button, it says it can only be demuxed, so i can't extract the files in the right format. can anyone tell me how to get around this (either using virtualdubmod or another program)?
    Quote Quote
  27. in section 1, step 3 using virtualdubmod i cant create .wav files for the audio streams of my movie because they are .ogg files (vorbis codec). when i press the "save wav" button, it says it can only be demuxed, so i can't extract the files in the right format. can anyone tell me how to get around this (either using virtualdubmod or another program)?
    in virtualdubMOD , go to Streams> right click the ogm audio you want and set to full processing mode > then hit save wav.
    Quote Quote
  28. just curious about one of the programs needed to make this work.... like the $5000 one rofl XD
