Help on building a new computer

[zzyzzx]

That 4-pin plug is P4 (well, socket 478) specific. Any other extra connectors?

The other connector on the power supply that's new to me is a 6 pin thing labeled "aux". I am reasonably sure it really is a SATA power connector because my power supply is the newest variety ATX12V/ATX2.03, so what else cound it be?

[rallynavvie]

6-pin rectangle connector would be a PCI-E video card power cable. SATA power is a small flat connector similar in shape to the SATA communication cable but a little wider.

[ViRaL1]

Does it look like an old AT power connector?

[zzyzzx]

Does it look like an old AT power connector?

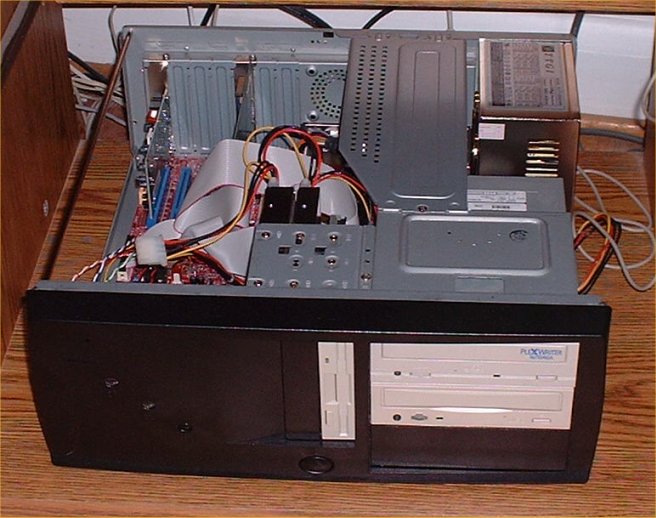

Yes. Actually it does. I should probably take a picture of it and post, but I'd have to finish building the computer first.

[zzyzzx]

6-pin rectangle connector would be a PCI-E video card power cable. SATA power is a small flat connector similar in shape to the SATA communication cable but a little wider.

Pics?

[zzyzzx]

This webpage:
http://maxpoint.com/downloads/ps_installguide.htm

Explains the whole power supply thing in detail. It calles it a 6-pin aux connector.

[zzyzzx]

[ViRaL1]

That looks like the ATX 12V connector. Not a lot of boards use it. Either I'm reading wrong or their documentation needs to be revised. For number 4 where it talks about Drives and Peripherals Connection, everything is mislabeled. I'll find some pics of mobos with the connector.

6-pin rectangle connector would be a PCI-E video card power cable. SATA power is a small flat connector similar in shape to the SATA communication cable but a little wider.

Pics?

The SATA power connector is listed on the page you linked to at maxpoint.

EDIT: I may be wrong about the power connector being the 12V connection. I have seen some boards that use it, but if your board doesn't have the connection you shouldn't have to worry about it.

This is about the best shot I can get of a mobo with it. It's to the left of the ATX power connector.
