  1. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    I have JVC S9800U, Panasonic AG5710 and Panasonic AG1980 here. I am trying to figure out which one to use for finishing up my VHS capture project for the second time. The JVC has quite a bit of missing detail, no matter what settings I use on it, so I've ruled that one out. The three different types of VHS tapes I have all play better on the Panasonics. The VHS tapes I have are from an old 1980's VCR, a 90's compact VHS recorder, and one tape from a "professional".

    The primary issue I don't understand is that my 5710 seems to capture stuff in between the frames captured from the S9800U and 1980. Can anyone give me some insight as to why this is, or how? I have spent days trying to figure out which VCR to use, comparing shots, and looking into reasons for behaviors such as the frame differences.

    Both Panasonics seem to be performing similarly, other than the framing differences.

    I am using an ATI USB 600 capture device, and these last few days, VirtualDub is set to record to YUV2 at an excessive 720x480 at 30fps. In the below shots the JVC was set to sharpen, the Panasonics set to the middle of the smooth-sharpen slider. The JVC was just a blurry smudge with any type of textures and sharpen was the best it could do to retain detail. Virtualdub isn't inserting or dropping frames according to its stats.

    Middle image below is showing a different frame. This happens for every frame - it shows framing in between the other two VCRs. It happens on all tapes. The frames themselves are different, as easily seen in other video clips with more motion - the perspective/distortion between foreground and background objects is different.

    http://masejoer.com/Images/3-1.jpg
    http://masejoer.com/Images/3-2.jpg
    http://masejoer.com/Images/3-3.jpg

    I also did spot one frame in another video, only appearing on the 1980, that appeared a bit weird. The other VCRs did not show this frame, but rather the complete frame before and after it, each of which used half of this frame:

    http://masejoer.com/Images/4-1.jpg

    Any help would be appreciated. I want to get this figured out so I can start getting these things recorded, and remove all these VCRs off my desk. They have been there for over 6 months!
    Last edited by Masejoer; 2nd Sep 2014 at 22:06.
    Quote Quote
  2. You should upload images at the capture frame size, not resized to full screen or some other size. Better yet, upload short, losslessly compressed, overlapping video samples.

    You should never enable the sharpen filter on a VHS deck -- they all produce severe oversharpening halos. Also disable noise filters, they're very crude and usually lead to ghosting. Denoise and sharpen in software later.
    Quote Quote
  3. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    Originally Posted by jagabo View Post
    You should upload images at the capture frame size, not resized to full screen or some other size. Better yet, upload short, losslessly compressed, overlapping video samples.

    You should never enable the sharpen filter on a VHS deck -- they all produce severe oversharpening halos. Also disable noise filters, they're very crude and usually lead to ghosting. Denoise and sharpen in software later.
    Not much I can do for sharpening on the Panasonic units - there is no way to turn off its smoothing/sharpening. The JVC was just a leftover after seeing how badly it was doing with normal processing, not sharpening. I won't be touching the JVC for anything except comparing framing between the three units. Its frames look the same as the Panasonic 1980. The 5710 it just doing something weird, and its frames don't match the other two VCR's. In any area I compare its off-frames to the other two though, it LOOKS like it has more detail, but that may simply be artifacts from how its frames are being recorded. I did have the ATI 600 USB's drivers set to 0 sharpen, but that's as close as I can get to disabling anything.

    200% blown-up was simply to try to compare detail. The video is too small on newer monitors for me to effectively compare - 13" screen at 3200x1800 needs all the help it can get.

    I'll have to figure out some video editing before being able to upload short clips. I don't have anything but Virtualdub, and I haven't touched it for editing. I've only been trying to digitize these things - figured editing would happen later, if ever.
    Quote Quote
  4. Originally Posted by Masejoer View Post
    In the below shots the JVC was set to sharpen, the Panasonics set to the middle of the smooth-sharpen slider.
    Originally Posted by Masejoer View Post
    Not much I can do for sharpening on the Panasonic units - there is no way to turn off its smoothing/sharpening.
    Make up your mind. Anyway, move the slider all the way to 'Smooth'. It never does any actual smoothing, just less sharpening as the slider gets moved towards 'Smooth'.

    I'll have to figure out some video editing before being able to upload short clips.
    Then you should figure it out quickly. Informed advice requires video samples and not pictures. Assuming you're capturing AVIs of some sort, cutting small pieces using VDub is easy.
    Quote Quote
  5. Member
    Join Date: May 2014
    Location: Tennessee, US
    Search Comp PM
    Originally Posted by Masejoer View Post
    VirtualDub is set to record to YUV2 at an excessive 720x480 at 30fps.
    Let's hope you're not capturing to "YUV2" because huffyuv can't compress to YUV2. I take it that "YUV2" is a typo. The correct term is YUY2. Your capture frame rate should be 29.97, not "30fps". Capturing at the wrong frame rate might explain a few glitches you described. If your final output objective is DVD or standard definition BluRay/AVCHD, the per-spec frame size for those final delivery formats is 720x480. If you want PC-only or Web playback, capture at 640x480. You'll have to resize the latter if you also want DVD, etc. In both cases you'll have side borders to contend with.

    Originally Posted by Masejoer View Post
    Posting screen captures shows us only how a video looks in your media player. It's not a capture of the original frame. JPG's are subject to compression artifacts. Use PNG lossless if you want to show us "detail", and don't resize the frame unless you're trying to focus on some teensty-weensty problem that can't be seen at normal frame sizes. Screen captures themselves are often useless. It's easier and more accurate to use VirtualDub to make frame captures directly from the video, or make direct frame captures by using a media player's capture or snapshot menu.

    When it comes to individual frame glitches that you mention, remember that you're working with VHS. A ton of variables are involved during playback, as well as variables you can credit to the way media players render the input and upsample for your monitor.

    The AG-1980 and AG-5710 are twins, pretty much. Both are good performers but both have capacitor aging problems and have to be periodically maintained by pro shops that specialize in that sort of stuff. One outfit that's often recommended is http://www.tgrantphoto.com/sales/index.php/categories/repair-services. Don't expect maintaining a pro VCR to be a cheap proposition. The 9800 requires pro maintenance as well, like any VCR.

    There's nothing inherently "bad" about the Pannies or the JVC 9800. If less aggressive noise reduction is what you're after, then the JVC isn't what you want. The 9800 is a nice player but it's a poor choice for slow 6-hour or 4-hour tapes. Its dnr can make a really noisy tape look soft. The 9800 is best set to "EDIT" mode for capturing VHS. With the Panasonics, most people would set sharpness at the left-hand or center position. The "dnr/normal" switch that's supposed to turn off the Panny's feature doesn't really do anything. According to techs it's a switch added at the last minute but wasn't implemented in production. I prefer the Pannies, as they have fewer motion artifacts in their internal processing. But when set up correctly for capture, many prefer the 9800. It's up to you. And it depends on the tape.
    Last edited by LMotlow; 3rd Sep 2014 at 09:00.
    -ann's brother
    Quote Quote
  6. Originally Posted by Masejoer View Post
    I'll have to figure out some video editing before being able to upload short clips. I don't have anything but Virtualdub, and I haven't touched it for editing.
    In VirtualDub:

    1) Video -> Direct Stream Copy (just copy compressed frames from the input to the output)
    2) File -> Open Video File
    3) Edit -> Set Selection Start (Mark-in) and Edit -> Set Selection End (Mark-out) to mark the portion you want to save
    4) File -> Save as AVI.

    Repeat steps 3 and 4 to save other clips from the same video, repeat steps 2 through 4 for other source videos.
    Quote Quote
  7. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    So if I understand this correctly, on the Panasonics, if I set the smoothing slider all the way to the left, it doesn't do anything but lower the unit's sharpening further? The JVC should be set to normal for less processing, correct?

    I can re-capture this evening if this is indeed the case. I'm simply looking for the purist's approach in capturing the original video source. I've tried playing with contrast, but I can't get any more detail than what my USB stick's default settings provide - washout doesn't improve.
    Quote Quote
  8. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    Originally Posted by jagabo View Post
    Originally Posted by Masejoer View Post
    I'll have to figure out some video editing before being able to upload short clips. I don't have anything but Virtualdub, and I haven't touched it for editing.
    In VirtualDub:

    1) Video -> Direct Stream Copy (just copy compressed frames from the input to the output)
    2) File -> Open Video File
    3) Edit -> Set Selection Start (Mark-in) and Edit -> Set Selection End (Mark-out) to mark the portion you want to save
    4) File -> Save as AVI.

    Repeat steps 3 and 4 to save other clips from the same video, repeat steps 2 through 4 for other source videos.
    That rings a bell. I used Virtual dub, or Virtualdub MPEG a decade ago to do some basic processing of video clips, but it has been ages. All I remembered was sticking some type of frame markers in a spot, removing beginning to that position, and doing the opposite to the end. I used to use Virtualdub to edit clips of recordings I had from SageTV.
    Quote Quote
  9. Member
    Join Date: May 2014
    Location: Tennessee, US
    Search Comp PM
    Originally Posted by Masejoer View Post
    So if I understand this correctly, on the Panasonics, if I set the smoothing slider all the way to the left, it doesn't do anything but lower the unit's sharpening further?
    According to my experience and those of other users, the default (neutral) position for Panny's sharpen filter is in the middle of the scale. If you see too much noise, push it farther left -- but there's always some noise on tape, and the left-hand position does soften somewhat.

    \
    Originally Posted by Masejoer View Post
    The JVC should be set to normal for less processing, correct?
    There is no "normal" picture quality mode on the 9800. The choices under the "Picture Control" menu are AUTO (sometimes reads as NORM), EDIT, SOFT, SHARP. The "EDIT" mode is usually recommended for capturing or tape dubbing. See page 57 of the JVC manual. Usually you also want to disable "Digital R3". Try it both ways and see what happens.

    Originally Posted by Masejoer View Post
    I've tried playing with contrast, but I can't get any more detail than what my USB stick's default settings provide - washout doesn't improve.
    Careful about adjusting contrast -- it tends to blow away highlights. Playing with contrast doesn't yield any "more" detail. Washout usually indicates black levels or IRE input that is too high. Black levels are controlled with "brightness" or "gamma" controls. Be careful there, too, or you'll crush dark detail. Trying to make extensive image fixes to VHS during capture is almost always an exercise in futility. VHS levels change from moment to moment. If you adjust for every scene in a tape, you'll be capturing forever. If you're using VirtualDub for capture, use its capture menu's "Levels" filters to hook into your graphics card or capture device image controls. Don't add additional filters in other menus, as many of them will convert input to RGB -- not something you want during capture. VirtualDub's capture util also has a histogram feature to help keep incoming levels inside the RGB 16-235 video range. What you want is brightness and contrast settings that keep most of the video out of the "red" areas on each side of the histogram. Those levels will fluctuate during play, so adjust for the worst-case scenario for your tape. Further tweaks and stuff like saturation, denoising, etc., are much more flexible with software after capture.

    The current version of VirtualDub is 1.10.4 . You can use earlier versions of you want, but VDubMPEG and VDubMod haven't been updated in a decade and some newer vDub filters require later versions.
    -ann's brother
    Quote Quote
  10. 3-1jpg: low contrast detail has been lost (over aggressive noise filter?). Gigantic oversharpening halos. Brights are the least crushed. Slightly crushed darks. Those may be fixable via the capture device's proc amp. More saturated colors (can be adjusted via proc amp or software).

    3-2.jpg: low contrast details retained. Less oversharpening halos. Some crushed brights. Black level too high (should be fixable via capture device's proc amp, definitely fixable with software). Crushed brights (may be fixable in the capture device's proc amp).

    3-3.jpg: low contrast details retained. It's a tossup whether those details are better than 3-2. More crushing of brights (maybe fixable in the capture device's proc amp).

    At first glance I'd say it's a tossup between 3-2 and 3-3. But one would need to see video samples and new caps with the proc amp calibrated.
    Quote Quote
  11. Originally Posted by LMotlow View Post
    According to my experience and those of other users, the default (neutral) position for Panny's sharpen filter is in the middle of the scale. If you see too much noise, push it farther left -- but there's always some noise on tape, and the left-hand position does soften somewhat.
    That's not my experience. I have mine moved all the way to the left. There's the least amount of edge enhancement (only what might be on the tape), with any other setting increasing it. Also the least amount of noise. I'm not using this particular Panasonic model, though, but a PAL version. I'd think they'd be the same.

    You seem to be implying there's some magical setting at maybe around 1/4 where both Sharpen and Smooth are zeroed. I don't believe that to be the case.
    Quote Quote
  12. Member
    Join Date: May 2014
    Location: Tennessee, US
    Search Comp PM
    No I don't think there's a magic set point, but I've just left mine in the middle forever. I've seen varied testimony on this, but so far I haven't had a noise or edge enhancement problem. Thanks for the tip, though, I'll keep my eyes open for any effects. I'm just accustomed to noisy VHS, I guess, no matter what you do to it.
    -ann's brother
    Quote Quote
  13. Hehe, noisy VHS. Yeah, it's a fact of life. I'd still take the noise from a Panasonic-produced capture over the mess made from a JVC capture. And the noise can be tamed in AviSynth. It's a shame that with the 1980, to use the TBC you have to also use the DNR. But with mine the two are independent, a much better solution.
    Quote Quote
  14. Member
    Join Date: Aug 2007
    Location: United Kingdom
    Search Comp PM
    Ah, the sharpening slider. As of this week I have been asking family and visitors what image they preferred (movement of the slider) as what I prefer is not always what other people prefer (when making them DVD copies of tape material). Almost unanimous was peoples liking for the sharpening to be at maximum! Whilst I saw halos and ringing they see a crisp image with 'definition'. I think its how we have trained our eyes - anything not sharp is 'faulty' and I was this way too once. There is a point on the slider where the image sharpens up a little but not enough to show halos - on my Panasonic PAL VCR's this is about 1/4 - 1/3 of the way between full left and centre detent. That is where I leave it for most captures.
    Quote Quote
  15. Member
    Join Date: May 2014
    Location: Tennessee, US
    Search Comp PM
    Most people can't see worth a damn unless what they see is in-your-face effects. Seriously. Look at the way most TVs are set up in what is called Volcano Mode. If you want to sharpen stuff, get a cleaner capture without halos and ringing or other junk, then later use some good Avisynth sharpeners that avoid all that garbage. Sharpening during capture makes tape noise and other analog defects all but impossible to clean up.
    -ann's brother
    Quote Quote
  16. Originally Posted by Masejoer View Post
    I've tried playing with contrast, but I can't get any more detail than what my USB stick's default settings provide - washout doesn't improve.
    This is a problem with the ATI 600, unfortunately. It hard clips below 255 and lowering the Contrast proc amp control just compresses the existing range without recovering any brights.

    Other capture devices allow brighter input levels to be captured, as they don't clip until they hit 255 and lowering their Contrast settings do recover brights.

    That said, it may be the camera that produced bloomed whites. If you posted some short AVI samples it would be easy to check for hard, flat digital clipping.
    Quote Quote
  17. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    Yeah, I am gathering video clips right now. I'm going to use wood grain texture as a comparison subject.
    Quote Quote
  18. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    There are a couple good comparison frames (for detail) in the following clips - and most of these VHS tapes are shaky, amateur shots. I set the JVC to "edit", panasonics to full "smooth" and "normal". All I've ever found has been mixed opinions on auto/edit and normal/edit modes for VCR's, so I am still as confused as I was a year ago on the topic of which settings provide the purest/unprocessed recording of what are on the cassettes. It seems the JVC is quite "sharp" when in edit mode.

    When comparing different VCR's, it seems randomly the three different units will display a frame that is different. At the very beginning of these three clips, the JVC is showing the different framing. In this same area, the 5710 matches the 1980's frames - different than what I was seeing in the other ~1990 clip.

    TBC enabled on all three. This tape has some waviness at the top without it enabled.

    From 1997:

    Panasonic 1980 Clip
    Panasonic 5710 Clip
    JVC S9800 Clip

    Panasonic Settings
    JVC Settings #1
    JVC Settings #2

    Edit:
    The following clip has the camcorder placed on a solid object, so it is steady. There is good detail and some color in-frame.

    Panasonic 1980 Clip #2
    Panasonic 5710 Clip #2
    JVC S9800 Clip #2
    Last edited by Masejoer; 7th Sep 2014 at 15:54.
    Quote Quote
  19. I take it these were captured with the Contrast set lower than default? The samples are hard-clipped to a luma range of 16-198 according to ColorYUV(analyze=true).
    Quote Quote
  20. Member
    Join Date: Jan 2014
    Location: United States
    Search PM
    Originally Posted by vaporeon800 View Post
    I take it these were captured with the Contrast set lower than default? The samples are hard-clipped to a luma range of 16-198 according to ColorYUV(analyze=true).
    I thought they weren't, but you are correct! No idea why contrast was set to 26. I can gather the recordings again. This one has a relatively short duration.

    Should I be using "normal" or "edit" on the Panasonics? Keep smooth/sharpen slider at far left?
    Quote Quote
  21. I have no idea, sorry.

    Thanks for the samples. These are my comments based on clip #1. Early in the clip are the most obvious differences IMO; the JVC capture doesn't bloom as much so portions of the house that are washed away in the other two can actually be seen.

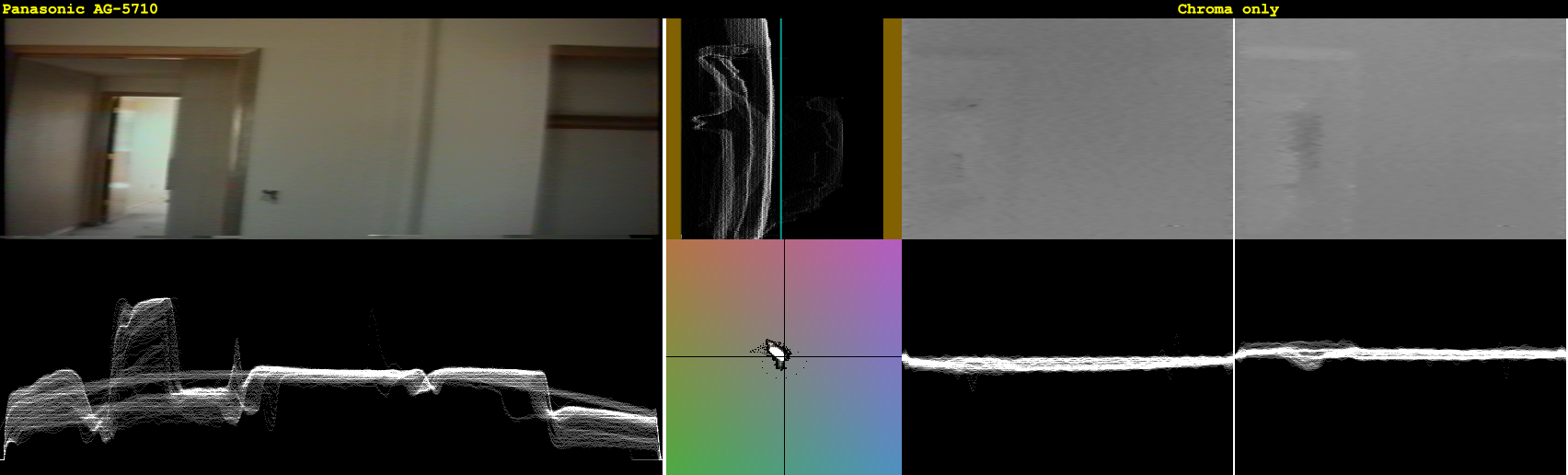

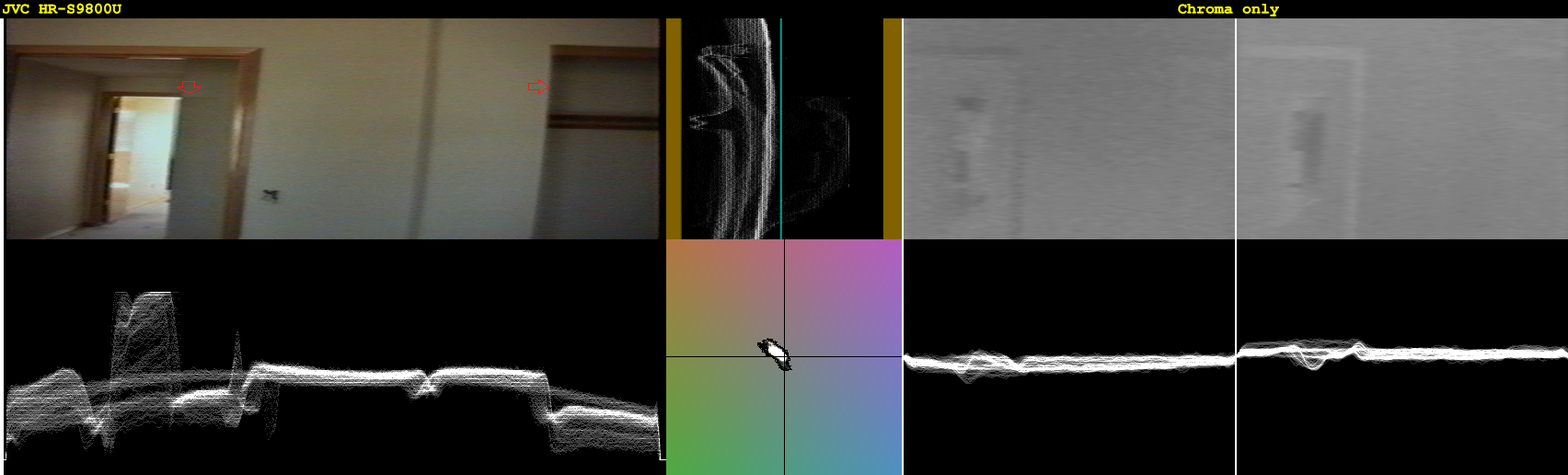

    I took a screenshot showing the other things that irk me. I aligned the JVC to the others by adding 4 pixels to the left of it, and trimming one field from the start of both Panasonic captures. Odd-numbered fields still aren't aligned vertically; I just chose to show an even field rather than align those as well.

    Click image for larger version

Name:	VHS1000576.png
Views:	35
Size:	433.0 KB
ID:	27318 Click image for larger version

Name:	VHS2000576.png
Views:	35
Size:	361.4 KB
ID:	27319 Click image for larger version

Name:	VHS3000576.png
Views:	35
Size:	478.5 KB
ID:	27320

    You can see some side effects of the temporal DNR: as the camera pans left, 2-3 ghost images of the wall shadow are visible and objects lack color until it catches up because in the previous frames those pixel positions were white. The AG-5710 chroma DNR looks different than the AG-1980's.

    Meanwhile, the JVC has some black halos and noisy edges.
    Quote Quote
  22. I think you'll get better results from the JVC. Although the time base jitter is a little worse it's not too bad. And the halos are minimal. It flickers less that the others too.
    Last edited by jagabo; 7th Sep 2014 at 23:15.
