  1. I goofed up. Transcoded a bunch of 1080p videos using Handbrake to watch on my PS3. Handbrake changed the resolutions to 1920x1088 and the PS3 refuses to play them. Can I crop the videos a few pixels without having to re-encode them? Or am I SOL?

    Apologies if this is technically the wrong board to post this.
    Quote Quote
  2. Originally Posted by ninj4Naoto View Post
    Can I crop the videos a few pixels without having to re-encode them?
    No.
    Quote Quote
  3. Member
    Join Date: Aug 2013
    Location: Central Germany
    Search PM
    In general, you can't change the video without changing the video...

    There is indeed a header field in AVC to crop the display area, which is quite usual for the case that HD 1080 video was encoded with 1088 lines height to have a "mod 16" dimension, but will only displayed with 1080 lines. But I don't know if there are any "patchers" with this capability (maybe h264info).

    Furthermore, I wonder if only the height would be the reason to refuse this video. It could possibly also be a Profile@Level value exceeding the limits of the player (probably Level 4.1), if you did not restrict it.
    Quote Quote
  4. Originally Posted by LigH.de View Post
    In general, you can't change the video without changing the video...

    There is indeed a header field in AVC to crop the display area, which is quite usual for the case that HD 1080 video was encoded with 1088 lines height to have a "mod 16" dimension, but will only displayed with 1080 lines. But I don't know if there are any "patchers" with this capability (maybe h264info).

    Furthermore, I wonder if only the height would be the reason to refuse this video. It could possibly also be a Profile@Level value exceeding the limits of the player (probably Level 4.1), if you did not restrict it.
    Here's the MediaInfo log for one of the files. At first I thought it was the audio but I've made other videos with the same audio settings that work.
    Code:
    General
    Format                                   : MPEG-4
    Format profile                           : Base Media / Version 2
    Codec ID                                 : mp42
    File size                                : 938 MiB
    Duration                                 : 24mn 30s
    Overall bit rate mode                    : Variable
    Overall bit rate                         : 5 355 Kbps
    Encoded date                             : UTC 2014-08-11 07:04:07
    Tagged date                              : UTC 2014-08-11 09:01:23
    Writing application                      : HandBrake 0.9.9 2013052900

    Video
    ID                                       : 1
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L4.0
    Format settings, CABAC                   : Yes
    Format settings, ReFrames                : 4 frames
    Codec ID                                 : avc1
    Codec ID/Info                            : Advanced Video Coding
    Duration                                 : 24mn 30s
    Bit rate                                 : 5 041 Kbps
    Width                                    : 1 920 pixels
    Height                                   : 1 088 pixels
    Display aspect ratio                     : 16:9
    Frame rate mode                          : Variable
    Frame rate                               : 24.346 fps
    Minimum frame rate                       : 20.000 fps
    Maximum frame rate                       : 30.303 fps
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : Progressive
    Bits/(Pixel*Frame)                       : 0.099
    Stream size                              : 883 MiB (94%)
    Writing library                          : x264 core 130 r2273 b3065e6
    Encoding settings                        : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=3 / lookahead_threads=1 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=240 / keyint_min=24 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=crf / mbtree=1 / crf=16.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00
    Encoded date                             : UTC 2014-08-11 07:04:07
    Tagged date                              : UTC 2014-08-11 09:01:21
    Color primaries                          : BT.709
    Transfer characteristics                 : BT.709
    Matrix coefficients                      : BT.709

    Audio
    ID                                       : 2
    Format                                   : AAC
    Format/Info                              : Advanced Audio Codec
    Format profile                           : LC
    Codec ID                                 : 40
    Duration                                 : 24mn 30s
    Bit rate mode                            : Variable
    Bit rate                                 : 308 Kbps
    Maximum bit rate                         : 390 Kbps
    Channel(s)                               : 2 channels
    Channel positions                        : Front: L R
    Sampling rate                            : 48.0 KHz
    Compression mode                         : Lossy
    Stream size                              : 54.0 MiB (6%)
    Language                                 : Japanese
    Encoded date                             : UTC 2014-08-11 07:04:07
    Tagged date                              : UTC 2014-08-11 09:01:20

    Menu
    ID                                       : 3
    Codec ID                                 : text
    Duration                                 : 24mn 30s
    Encoded date                             : UTC 2014-08-11 07:04:07
    Tagged date                              : UTC 2014-08-11 09:01:21
    Bit rate mode                            : CBR
    Quote Quote
  5. if mkv is used as container, one can also add crop values to the container tags
    (see: https://www.bunkus.org/videotools/mkvtoolnix/doc/mkvmerge.html#d4e2410)

    Problem: This is probably not supported by all players. (VLC supports it, not sure if MPC does)
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  6. Member
    Join Date: Aug 2013
    Location: Central Germany
    Search PM
    Variable framerate may be a reason for hardware players to refuse this file:

    Code:
    Frame rate mode                          : Variable
    Frame rate                               : 24.346 fps
    Minimum frame rate                       : 20.000 fps
    Maximum frame rate                       : 30.303 fps
    Quote Quote

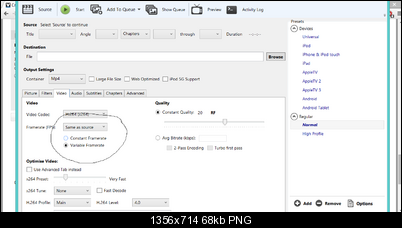

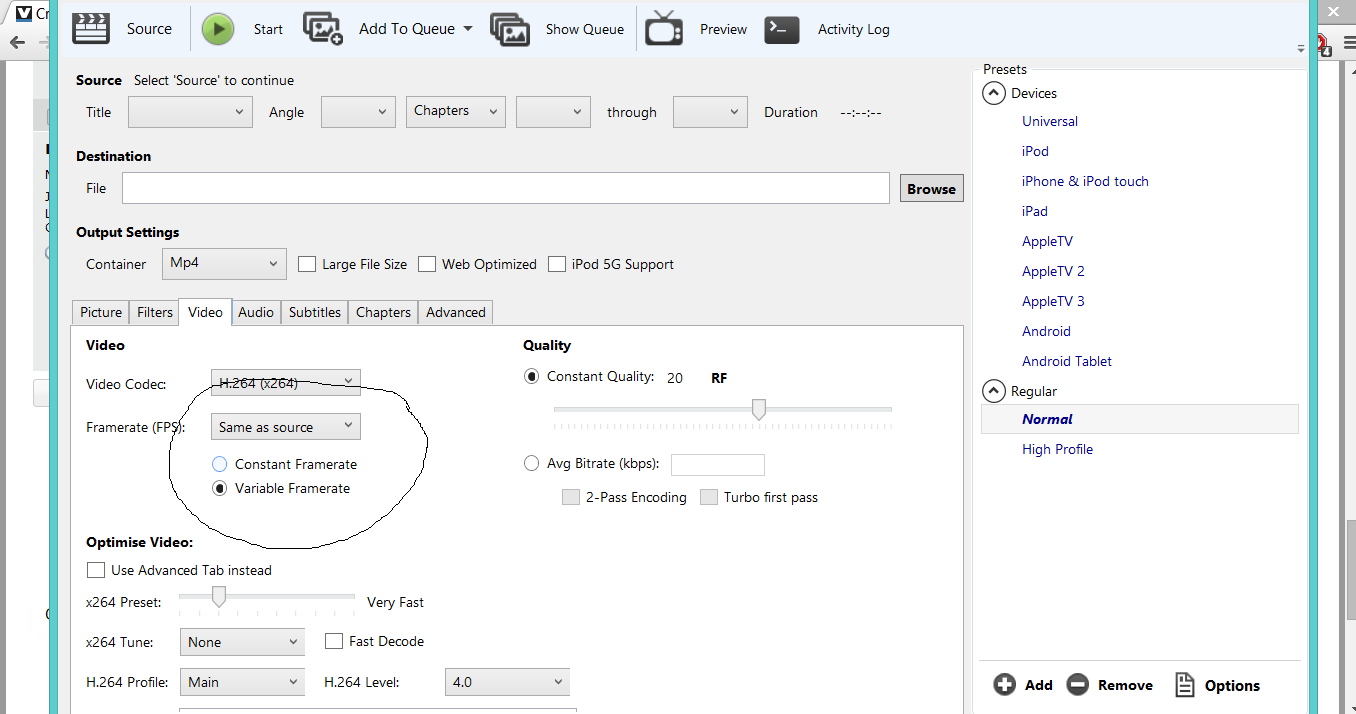

  7. I also think that could be variable fps ( change it in handbrake picture )Click image for larger version

Name:	Untitled.png
Views:	15
Size:	68.3 KB
ID:	26980
    Quote Quote
  8. Originally Posted by LigH.de View Post
    Variable framerate may be a reason for hardware players to refuse this file:

    Code:
    Frame rate mode                          : Variable
    Frame rate                               : 24.346 fps
    Minimum frame rate                       : 20.000 fps
    Maximum frame rate                       : 30.303 fps
    It can't be that. I just transcoded one of the source files with a slightly lower resolution (everything else the same) and it played.

    Guess I will have to transcode the original files again. *sigh* My desktop isn't very powerful, which is why I didn't want to have to go this route.

    Thanks for the responses, everyone.
    Last edited by ninj4Naoto; 20th Aug 2014 at 05:27.
    Quote Quote
  9. Member
    Join Date: Jul 2008
    Location: Old Dominion
    Search Comp PM
    Originally Posted by ninj4Naoto View Post
    I goofed up. Transcoded a bunch of 1080p videos using Handbrake to watch on my PS3. Handbrake changed the resolutions to 1920x1088 and the PS3 refuses to play them. Can I crop the videos a few pixels without having to re-encode them? Or am I SOL?

    Apologies if this is technically the wrong board to post this.
    Have you tried this, which supposedly doesn't re-encode:

    Code:
    http://www.videohelp.com/tools/GOTSent
    Quote Quote
  10. Over 300kbps for two channel aac is pathetically high.
    Quote Quote
  11. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Originally Posted by LigH.de View Post

    There is indeed a header field in AVC to crop the display area, which is quite usual for the case that HD 1080 video was encoded with 1088 lines height to have a "mod 16" dimension, but will only displayed with 1080 lines. But I don't know if there are any "patchers" with this capability (maybe h264info).
    roozhou's patched ffmpeg build can modify the crop flag

    http://forum.doom9.org/showthread.php?t=152419
    Quote Quote
