  1. Terminal n00b
    Join Date: Jul 2014
    Location: SE PA
    Search Comp PM
    I'm rescuing old cassettes to DVD's with a Sony RDR-VX560. Making dubs works well. However, there is some slight tearing at the bottom of the image. I'm using a small 19" HD Sharp TV as a monitor; it's tied to the VX-560 with HDMI. The tearing isn't as noticeable there but I can find it. It's much more obvious in the DVD's. The obvious question is "can I make it go away"?

    The tearing doesn't make the image unusable. It's just an annoyance. I tried tweaking tracking but that didn't make any difference to the tearing (it did booger picture, of course). The VX-560 came from eBay; I have no information on its history.

    A friend suggested the heads may want a bath. With reasonable care, can I wash them with alcohol? I don't have a cleaning cassette; my recollection from when I made my tapes is most cassettes made matters worse, anyway. FWIW, I spool the tapes forward and back before playing them.
    Common sense isn't.
    Quote Quote
  2. Member hech54's Avatar
    Join Date: Jul 2001
    Location: Yank in Europe
    Search Comp PM
    The lines at the bottom are overscan. 90% of my captures or records from VHS have them. I leave them there simply because the act or removing them WILL result in re-encoding and quality loss.
    Quote Quote
  3. Terminal n00b
    Join Date: Jul 2014
    Location: SE PA
    Search Comp PM
    OK, I understand overscan. My main concern is making sure I'm getting as much image as possible.
    Common sense isn't.
    Quote Quote
  4. Member DB83's Avatar
    Join Date: Jul 2007
    Location: United Kingdom
    Search Comp PM
    What hech54 is saying is that when you play back on a tv, its overscan will cover the 'tearing'

    The 'tearing' is a product of the VHS head-drum. It is always there. You can 'remove' it by adding a black border to cover it. No one recommends that you crop it away and resize your image.
    Quote Quote
  5. Terminal n00b
    Join Date: Jul 2014
    Location: SE PA
    Search Comp PM
    My question was essentially "is that jiggy stuff at the bottom of the screen lost image or 'the wages of TV'". Heck, if it came down to it, I could put a strip of black tape across the screen to cover the overscan. And, of course, in the bad old days of CRT tv's, that basically what happened. The image was made large enough to cover over the curious bits at the top and bottom.
    Common sense isn't.
    Quote Quote
  6. Member
    Join Date: Mar 2008
    Location: United States
    Search Comp PM
    Originally Posted by RBEmerson View Post
    My question was essentially "is that jiggy stuff at the bottom of the screen lost image or 'the wages of TV'". Heck, if it came down to it, I could put a strip of black tape across the screen to cover the overscan. And, of course, in the bad old days of CRT tv's, that basically what happened. The image was made large enough to cover over the curious bits at the top and bottom.
    Can you provide a screen shot showing the problem ?
    Quote Quote
  7. Terminal n00b
    Join Date: Jul 2014
    Location: SE PA
    Search Comp PM
    I'll give it a shot (er, no pun intended).
    Common sense isn't.
    Quote Quote
  8. Terminal n00b
    Join Date: Jul 2014
    Location: SE PA
    Search Comp PM

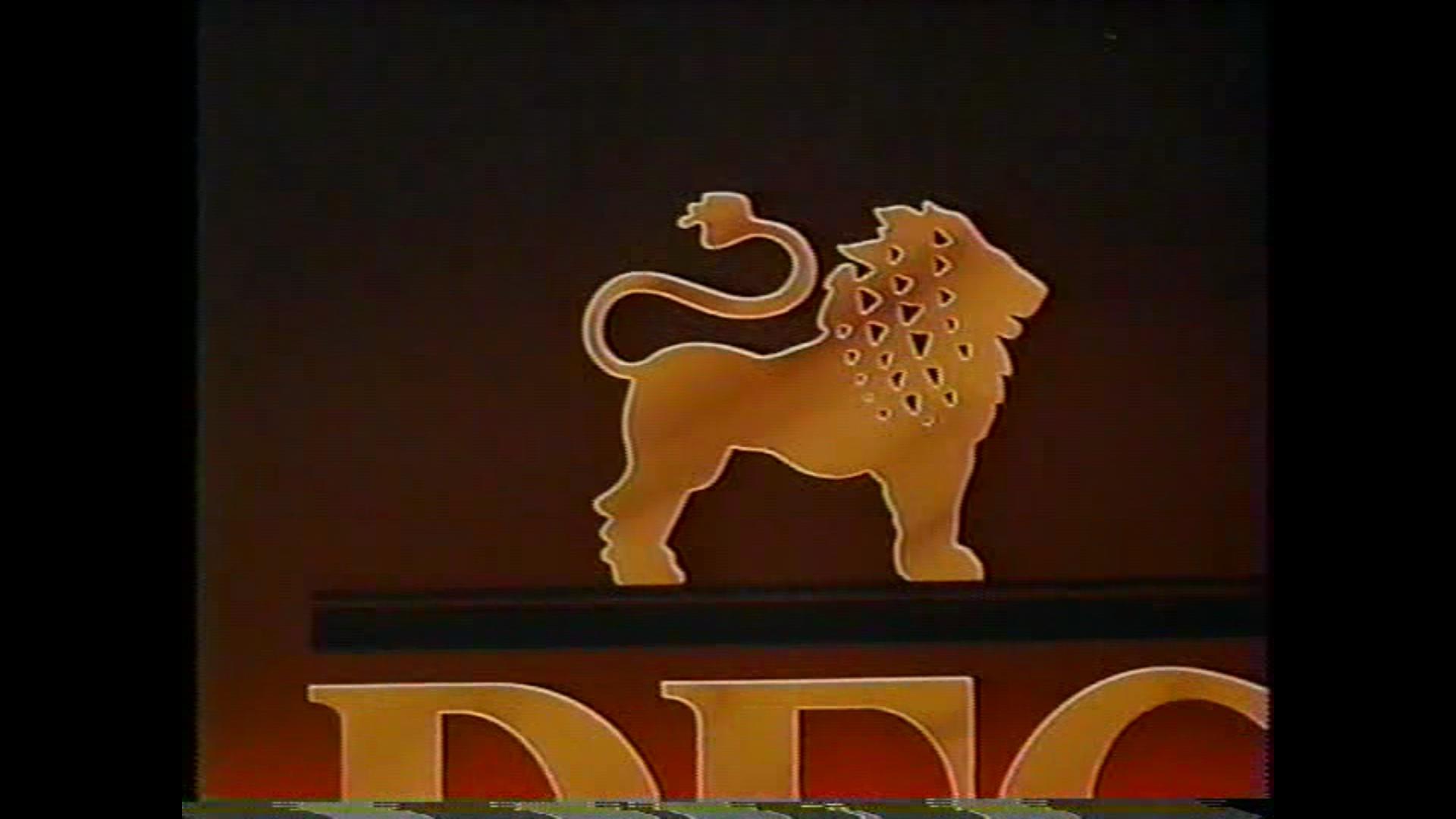

    This is a good representation of the problem:

    Click image for larger version

Name:	OverScan.jpg
Views:	18
Size:	75.6 KB
ID:	26652

    The tape (from 200n?) was made with a capture from a wire (vs. FiOS) cable connection, all very much pre-HD. The conversion was done on the VX-560 onto a DVD-R. The image was captured from viewing the video with VLC. The scene is a zoom out of the logo shown. That's all probably a little OCD but there it is.
    Common sense isn't.
    Quote Quote
  9. Yes it is technically lost picture information, but there is nothing you can do to restore it without adding additional hardware or possibly messing with the internals of your unit. Cleaning the heads is unrelated. Your machine distorts more lines than the average VCR, there are some that distort only a couple, and a few that were specifically designed to recover as much image as possible. (Some further reading from my quests through this topic.)

    I would be more concerned by the ridiculous amount of artifacting in the rest of the picture, but if it doesn't bother you, consider yourself lucky.
    Quote Quote
  10. Terminal n00b
    Join Date: Jul 2014
    Location: SE PA
    Search Comp PM
    OK, gotit on the tearing. Life goes on.

    But artifacting? It may help to point out this tape is about 15 years old, was captured off a Comcast wire connection (vs. fiber) before HD was an option. This is the bad old 512 scan line stuff. Aside from the miserable resolution (IMHO the VX-560 does a passable, if not great, job of trying to heal the miserable image) and the 4:3 aspect ratio, the results are surprisingly good. I think much of what you're reacting to is a classic case of GIGO. The signal Comcast shoved down the wire wasn't that good to begin with, and it all went downhill from there, so there's no surprise the DVD winds up with a less than stellar set of images.
    Common sense isn't.
    Quote Quote
