  1. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    have a dvdr probably made of a VHS recording of a TV broadcast. Seems to be hard telecine of blended fields. I wanted to make an MKV conversion, but when I IVTC (TFM/TDecimate) and crop/resize to make it widescreen, some scenes look pretty bad - very bouncy sharp/blurry images. I dont think it's phaseshifted; deblending with Srestore didnt improve it. Attaching clip of original letterbox video.
    Attached Files
    Quote Quote
  2. Looks like normal hard 3:2 pulldown to me. The video was oversharpened on the vertical axis at some point. So try adding pp=0 to TFM() -- to reduce some of the bad post processing. You'll still have some aliasing problems though.
    Last edited by jagabo; 18th Jul 2014 at 23:05.
    Quote Quote
  3. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    wow, that was a big improvement! I, er, dont always read the usage notes on these filters.
    I looked for aliasing fixes before posting, but didnt find anything that seemed applicable. Any suggestions?
    Quote Quote
  4. Santiag(), AAA(), daa3(), etc.
    Quote Quote
  5. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    thanks, I'll check them out.
    Have another question - I cropped this with
    crop(8,110,-12,-112) #700x258
    It's suppose to be Cinemascope, so I resized 700x298 (2.35:1)for making an MKV. Is this incorrect?

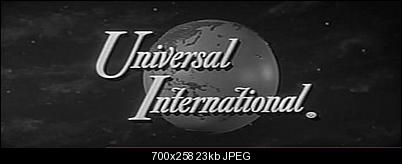

    Cropped only
    Name:  cropped only.jpg
Views: 136
Size:  23.2 KB

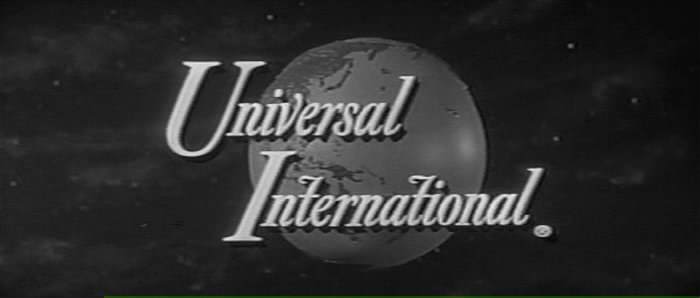

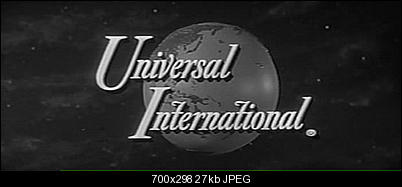

    Cropped, resized
    Name:  crop, resize.jpg
Views: 139
Size:  26.9 KB
    Quote Quote
  6. Looks about right.
    Quote Quote
  7. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    thanks. that's a nice change for me (getting something right).
    Quote Quote
  8. Though I don't like the mod2 frame size. You may run across devices that don't like it.
    Quote Quote
  9. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    I thought with MKV, as long as you got the DAR right, it didnt matter?
    Quote Quote
  10. Some decoders don't like mod2 frame sizes. They will crash, render a distorted picture, or refuse to play the video. It's safest to stay with mod 4 or higher.
    Quote Quote
  11. Member
    Join Date: May 2014
    Location: Tennessee, US
    Search Comp PM
    Originally Posted by spiritgumm View Post
    I thought with MKV, as long as you got the DAR right, it didnt matter?
    Not quite. Almost all standard BD, AVCHD, DVD has mod-8 frames. Many encoders and filters don't work properly unless they see 8x8 pixel blocks. Some say it can be mod-4 minimum, but I don't trust 'em. I've used some Avisynth filters that give an error if 8x8 isn't there.
    - My sister Ann's brother
    Quote Quote
  12. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    what if I change my crop values to mod16 (black borders are barely visible), and set the encoder DAR to 2.35?
    crop(6,112,-10,-112)#704x256, mod16
    and
    Megui custom setting: --sar 17:20

    I understand that resizing would be better compatibility
    spline36resize(688,292)#mod16
    but doesnt it effect the picture quality? And the cropped version above is mod16 - just not the right DAR.
    Last edited by spiritgumm; 19th Jul 2014 at 14:19.
    Quote Quote
  13. I would just go with 700x296 (mod4, mod16). That's less than a 1 percent error. Not worth worrying about. Or if you're going to use SAR flags just crop and use the SAR of your source, 10:11 in this case. The SAR of the pixels doesn't change when cropping. Just like cutting off the edges of a piece of graph paper leaves the grid exactly the same size it was before you cropped.
    Quote Quote
  14. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Originally Posted by jagabo View Post
    The SAR of the pixels doesn't change when cropping. Just like cutting off the edges of a piece of graph paper leaves the grid exactly the same size it was before you cropped.


    The graph paper analogy makes sense intuitively, but mathematically it does change when you crop

    In this example , I'm going to call these Display Aspect Ratio, Frame Aspect Ratio, Sample Aspect Ratio
    DAR = FAR * SAR

    Lets' say I have a regular 4:3 DAR NTSC 720x480, and I am using non ITU aspect ratios:

    ok, no problem, the --sar is 8:9
    4/3 = 720/480 * 8/9

    Lets say I have noisy side borders, and I crop 8 pixels from each side, for a final width of 704
    4/3 = 704/480 * 10/11

    The --sar is now 10:11 . If I had used the same --sar 8:9 , the DAR would be 1.304 instead of 1.333
    Quote Quote
  15. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    regarding Jagabo's last post, I'm confused. I thought mod16 was a priority, so cropping to that size would be better than resizing.
    If cropping without resizing, and entering Sar 10:11 in Megui, I get 2.50, not 2.35, according to mediainfo. The source was fullscreen, and cropped, it's not the correct aspect ratio.
    Quote Quote
  16. Originally Posted by spiritgumm View Post
    regarding Jagabo's last post, I'm confused. I thought mod16 was a priority, so cropping to that size would be better than resizing.
    All h.264 decoders work with mod16. Pretty much all h.264 decoders work with mod8 (because the 1080 in 1920x1080 is mod8). Almost all h.264 decoders work with mod4.

    Originally Posted by spiritgumm View Post
    If cropping without resizing, and entering Sar 10:11 in Megui, I get 2.50, not 2.35, according to mediainfo. The source was fullscreen, and cropped, it's not the correct aspect ratio.
    Because DAR is a product of FAR and SAR:

    Code:
    DAR = FAR * SAR
    If you crop away a little of the picture or leave a little black border you will not have the original DAR. But the picture will display properly because it is missing a few rows/columns or has small black borders. Just like your original 4:3 DVD with small black borders left and right and large black borders top and bottom is displayed properly on the TV.
    Quote Quote
  17. Oops, duplicate post.
    Quote Quote
  18. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    Wont a computer media player display it according to the DAR as reported by Mediainfo? Like the images I posted (taken with MPC-HC)?
    Quote Quote
  19. You left a little of the black bars at the sides. And I think you cropped a little off the top or bottom of the picture. So the full picture (including the remaining small black borders) is slightly wider than 2.35:1. Also, don't trust what MediaInfo says about aspect ratios.
    Quote Quote
  20. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    I'm lost. I thought my original cropping 700x258 (mod4,mod2) was inadequate because of the mod2, so changing at least the vertical to 256 would fix that.
    Instead of hypotheticals, please tell me how the equation above works with my video. And if mediainfo isnt to be trusted, what's the point of using it, and what else should we use? Gspot doesnt seem to work with mkv.
    Quote Quote
  21. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Probably confused you by mentioning the equation.

    Well. forget the equation. For what you are doing, the equation is not useful. Mediainfo isn't useful. The equation is just explaining to you what is going on, because that's what the media player goes by. That's what mediainfo is reporting



    Basically you're confusing the DAR, with the actual aspect ratio of the content

    By definition, the Display Aspect Ratio is
    The aspect ratio of a display is the proportional relationship between the width of a display and its height
    When you crop by a non proportional w:h ratio, you have a new DAR by definition - if you want to retain the aspect ratio of the actual content. Don't confuse the Display Aspect Ratio with the actual content aspect ratio. Mediainfo cannot tell you anything about the actual content. Megui cannot tell you anything about the actual content

    Yes, the software mediaplayer will go by that math equation (and usually what mediainfo says about DAR). It basically "stretches" or "squeezes" the image to a square pixel equivalent.

    e.g. a 16:9 NTSC DVD is stored at 720x480, but the square pixel equivalent for display will "stretch" it to ~854x480 display area . The nonITU sar is --sar 32:27 .
    16/9 = 720/480 * 32/27

    But when you've cropped the image, the remaining active image area is no longer supposed to fit in the same square pixel equivalent dimension of 854x480 (or other 16:9 ratio), or it will be stretched or distorted




    Here is a drastic example. Lets say you have that 16:9 NTSC DVD, but really noisy junk on the left and right , and you crop away a massive 156 pixels each side , leaving you 408px width total

    If you solve for that equation
    16/9 = 408/480 * SAR , --sar is about 20915:10000

    But if you encode with that crop and sar value, that centre image will stretch to ~854x480, which will make the image too fat. Think of jagabo' s grid analogy - you're changing the width of the little squares from ~ 1.185 (32:27) to ~ 2.091 in order to "fill" the 854x480.

    If you use the old SAR of 32:27

    DAR = 408/480 * 32/27, you get a DAR ~1.007 . That's because it's the new , correct DAR. That's the value mediainfo is reporting, that the mediaplayers are using, because that's the value where jagabo's little squares retain their "little square" shapes instead of becoming "rectangles"
    Quote Quote
  22. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    ahhh! hypotheticals again!
    I started with a 4:3, 740x480 letterboxed video. It was filmed in Cinemascope. I want to encode to MKV (h264).
    After cropping the black borders, in order for it to look right, I need to either resize or encode with flagging (whichever looks better) so the result is 2.35.
    Can you show me what you're talking about using my video?
    Quote Quote
  23. Originally Posted by poisondeathray View Post
    Originally Posted by jagabo View Post
    The SAR of the pixels doesn't change when cropping. Just like cutting off the edges of a piece of graph paper leaves the grid exactly the same size it was before you cropped.


    The graph paper analogy makes sense intuitively, but mathematically it does change when you crop

    In this example , I'm going to call these Display Aspect Ratio, Frame Aspect Ratio, Sample Aspect Ratio
    DAR = FAR * SAR

    Lets' say I have a regular 4:3 DAR NTSC 720x480, and I am using non ITU aspect ratios:

    ok, no problem, the --sar is 8:9
    4/3 = 720/480 * 8/9

    Lets say I have noisy side borders, and I crop 8 pixels from each side, for a final width of 704
    4/3 = 704/480 * 10/11

    The --sar is now 10:11 . If I had used the same --sar 8:9 , the DAR would be 1.304 instead of 1.333
    No the SAR didn't change. Your, or a player's, assumption about the SAR or DAR may have changed but the SAR didn't really change. If the source's SAR was really 8:9 before cropping the new video is indeed 1.304 DAR.
    Last edited by jagabo; 19th Jul 2014 at 22:33.
    Quote Quote
  24. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Originally Posted by jagabo View Post

    No the SAR didn't change. Your, or a player's, assumption about the SAR or DAR may have changed but the SAR didn't really change. If the source was really 8:9 before cropping the new video is indeed 1.304 DAR.
    Yes, you're right. The SAR doesn't change if you want to keep the content aspect ratio. It's explained poorly. I wrote out a longer explanation in the next post

    The DAR changes when you crop with a non-proportional w:h value. That's normal , because you want to retain the actual content aspect ratio. To keep circles looking like circles instead of ovals

    The "new SAR" is the value required to keep the old DAR, which of course doesn't work when you crop. Things become distorted. The reason for that (bad) example is he's fixated on the DAR, which is not useful
    Last edited by poisondeathray; 19th Jul 2014 at 22:39.
    Quote Quote
  25. Originally Posted by spiritgumm View Post
    Instead of hypotheticals, please tell me how the equation above works with my video.
    Your source was obviously captured according to the ITU spec. With that the 4:3 picture is contained in a 704x480 portion of the 720x480 frame, and the SAR is 10:11.

    Code:
    DAR = 704:480 * 10:11
    DAR = 704/480 * 10/11
    DAR = 1.3333
    You only trimmed the frame, leaving 704x256:

    Code:
    DAR = 704:256 * 10:11
    DAR = 704/256 * 10/11
    DAR = 2.5
    Quote Quote
  26. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    still lost, so I visited this old nightmare thread: http://forum.videohelp.com/threads/308552-Resolution-vs-Aspect-Ratio
    I see there's two different SARs (Sample and Storage) - very considerate of software writers for the extra confusion.

    Regarding my video, when I enter the d2v into AvsP, and click on Resize Calculator tool, it says the pixel aspect ratio is 8:9, which is what I thought the SAR was...but as per Jagabo's explanation, it's a given that the SAR is the 10:11.

    So, bottom line. The original video looked okay (sphere looked round), so after cropping, I only need to enter the original SAR when encoding with MEGui. No need to resize, etc., or worry about the DAR, correct?
    For both computer and standalone compatibility, I would like to avoid the Mod2 (as Jagabo suggested). So instead of cropping 700x258, will crop an extra line at bottom for 700x256.
    Last edited by spiritgumm; 20th Jul 2014 at 15:57. Reason: after more research
    Quote Quote
  27. Originally Posted by spiritgumm View Post
    I see there's two different SARs (Sample and Storage) - very considerate of software writers for the extra confusion.
    Let's define our usage here. We'll use the more modern terminology:

    Code:
    DAR = FAR * SAR

    DAR = Display Aspect Ratio, the final shape of the displayed picture
    FAR = Frame Aspect Ratio, the width and height of the stored video, in # of pixels
    SAR = Sample Aspect Ratio, the relative width:height of individual pixels
    Originally Posted by spiritgumm View Post
    Regarding my video, when I enter the d2v into AvsP, and click on Resize Calculator tool, it says the pixel aspect ratio is 8:9, which is what I thought the SAR was...but as per Jagabo's explanation, it's a given that the SAR is the 10:11.
    The confusion between 10:11 and 8:9 has to do with the difference between the MPEG 2 spec (use by DVD) and the ITU 601 spec which is commonly used by broadcasters when digitizing 4:3 NTSC video.

    Basically, rec.601 specifies the 4:3 image is captured in a 704x480 frame. An extra 8 pixels is usually captured at the left and right edges in case the picture isn't perfectly centered. So the full 720x480 frame represents a picture that's slightly wider than 4:3.

    The DVD spec refers to the MPEG 2 spec regarding aspect ratios. MPEG 2 (as far as DVD is concerned) doesn't directly specify the SAR, only the DAR, 4:3 or 16:9. And it says the full 720x480 frame comprises that aspect ratio. So in MPEG 2 video a 720x480 4:3 DAR frame has a SAR of 8:9.

    When ITU captured video is made into a DVD the difference in SAR between the ITU spec and the MPEG 2 spec is usually ignored. The 720x480 10:11 SAR frame is simply written to the DVD. To be 100 percent correct the ITU frame should be cropped down to 704x480, or the inner 704x480 of the ITU frame should be stretched out to 720x480. But nobody in the industry seems to care about the difference (most probably don't even know). And virtually nobody notices the ~2% error when they watch DVDs. Even many DVD players are schizophrenic with respect to this, using the ITU spec on the analog outputs (composite, s-video) but the MPEG 2 spec for the HDMI output (ie the full 720x480 frame is upscaled to 1280x720 or 1920x1080 at the HDMI port).

    Originally Posted by spiritgumm View Post
    So, bottom line. The original video looked okay (sphere looked round), so after cropping, I only need to enter the original SAR when encoding with MEGui. No need to resize, etc., or worry about the DAR, correct?
    For both computer and standalone compatibility, I would like to avoid the Mod2 (as Jagabo suggested). So instead of cropping 700x258, will crop an extra line at bottom for 700x256.
    Since your video appears to be captured from video tape and has ~8 pixel black borders left and right I would assume the SAR is 10:11, not 8:9. But either way, the difference isn't noticeable unless you measure something on screen. And if you're using a CRT display... the CRT probably has a bigger aspect ratio error than that.
    Quote Quote
  28. Originally Posted by spiritgumm View Post
    So, bottom line. The original video looked okay (sphere looked round), so after cropping, I only need to enter the original SAR when encoding with MEGui. No need to resize, etc., or worry about the DAR, correct?
    If you're using MeGUI, are you enabling the anamorphic encoding option in MeGUI's script creator? If so, you don't need to specify the SAR/DAR yourself. Leave the SAR set to "default" in the x264 encoder configuration and MeGUI will take care of the rest.
    When you create a script for encoding using MeGUI's script creator, the only aspect ratio choice you really need to make is choosing the Input DAR for DVDs (ITU or non-ITU). When you open a DVD, the Input DAR will probably default to "ITU 4:3 NTSC" or "ITU 16:9 NTSC" etc. You can change it to straight 16:9 or 4:3 resizing if you want to, but it seems ITU 4:3 is likely correct in this case. If you use any of the anamorphic encoding options which don't resize (there's only one which does) you won't change the SAR (pixel aspect ratio)* see note. You can simply crop to mod4 or mod8 or to whatever your particular level of mod paranoia might be. If I'm using anamorphic encoding I usually try to stick to a mod4 width, but the height doesn't seem to matter (I've never had a playback problem using a mod2 height).

    Alternatively, you can enable the anamorphic encoding option which lets you resize. That way instead of cropping extra to make the width/height mod4, you can crop exactly what you want to and resize to mod4 instead. MeGUI will adjust the pixel aspect ratio (SAR) accordingly if you use the resize anamorphic option.

    * There's one setting in MeGUI you might want to change. It's hidden away in the AVS Profile configuration, under the extra setup tab, and it's labelled "acceptable anamorphic aspect error". It's set to 1% by default, which lets MeGUI fudge the aspect ratio a little so you can crop a few pixels and still output nice 4:3 and 16:9 aspect ratios fairly easily.... but if you change it to 0% MeGUI won't do any aspect ratio fudging.

    Along the lines of what's been posted earlier......
    If you enable MeGUI's anamorphic encoding and switch to the Script tab, you'll see MeGUI has added a DAR to the script. It uses the DAR, along with the output resolution, to set the correct SAR. If you crop with anamorphic encoding enabled the DAR in the script will change accordingly. If you just resize though, the DAR in the script won't change. For example:

    If you take a 4:3 video and crop half the width away, the remaining video would be 2:3. Half the width is gone. However you can resize to whatever resolution you like (without cropping) and the DAR won't change. It doesn't matter if you encode a DVD at 720x480, or 640x354, or 966x200, it's got to have a 4:3 (or 16:9) aspect ratio to display correctly. Not that you'd resize that way.... it's just an example. If you did though, MeGUI would change the SAR (pixel aspect ratio) accordingly so the DAR remains unchanged.

    My rule of thumb.... pretty much all 4:3 DVDs use ITU resizing. Most 16:9 DVDs don't. If a 16:9 DVD has a picture which covers the whole 720 width (minus a pixel or two) then most likely, straight 16:9 resizing would be correct. If there's a reasonable amount of black/crud down the sides (8 pixels or more) then it's probably 16:9 ITU.

    Originally Posted by spiritgumm View Post
    For both computer and standalone compatibility, I would like to avoid the Mod2 (as Jagabo suggested). So instead of cropping 700x258, will crop an extra line at bottom for 700x256.
    For h264, I really don't know how much it matters. I tend to stick to a mod4 width out of habit, but that's mostly because DirectShow decoding doesn't always behave properly when the width is mod2, but I've never had a problem playing the encoded video. The height.... I've never had a mod2 playback problem.

    For the record.... I checked some video which came from itunes. For whatever reason, it's often not exactly 720p or 1080p. A few of the files I looked at were 1280x718, and 1276x718 wouldn't be unusual (I'd need to do some more checking, but I think they stick to mod4 widths).
    Last edited by hello_hello; 21st Jul 2014 at 08:40.
    Quote Quote
  29. Member spiritgumm's Avatar
    Join Date: Jan 2004
    Location: United States
    Search Comp PM
    wrong thread
    Last edited by spiritgumm; 3rd Oct 2014 at 18:36. Reason: wrong thread -delete message
