  1. Hello all,

    So I'm looking for an alternative encoder to MeGui for my AviSynth script. For some reason since my footage is 1440x1080 MeGui always outputs the encode as 4:3 instead of 16:9. I don't want any more quality loss due to another re-encode 1st to 1920x1080, so I'm looking for an alternative to it. My script if you can find something wrong with it is here:

    Code:
    global MeGUI_darx = 16
    global MeGUI_dary = 9
    LoadPlugin("C:\Users\Denis\Desktop\Megui\tools\avisynth_plugin\VSFilter.dll")
    LoadPlugin("C:\Users\Denis\Desktop\Megui\tools\dgindex\DGDecode.dll")
    LoadPlugin("C:\Users\Denis\Desktop\Megui\tools\ffms\ffms2.dll")
    FFvideosource("C:\Users\Denis\Desktop\encode\Sequence 01.mp4")
    TextSub("C:\Users\Denis\Desktop\encode\text.ass")
    Quote Quote
  2. force SAR in Megui, Config/Misc/Force SAR/4:3
    Quote Quote
  3. I need it to force 16:9, the path you provided does not have 16:9 only 16:11 :/
    Quote Quote
  4. Try the x264 cli encoder. You can drag/drop your AVS script onto a simple batch file.

    Code:
    x264 --preset=slow --crf=18 --sar=4:3 --output %1.mkv %1
    Quote Quote
  5. SAR is not a width/height ratio, ... in case of SAR=4:3, your 1440 is going to be multiplied by 4/3=1.333, to get 1920 on screen, that is what you want

    SAR 16:9 is a nonsense, 16:9 video has SAR=1:1, in that case videos are square pixel. Not anamorphic, and your video is anamorphic.
    Quote Quote
  6. 1440 / 1080 * 4 / 3 = 1.777...
    Quote Quote
  7. ok now I finally get SAR never did before. But still no matter what I force, the videos till comes out in 4:3.
    Quote Quote
  8. Originally Posted by shorto View Post
    Hello all,

    So I'm looking for an alternative encoder to MeGui for my AviSynth script. For some reason since my footage is 1440x1080 MeGui always outputs the encode as 4:3 instead of 16:9. I don't want any more quality loss due to another re-encode 1st to 1920x1080, so I'm looking for an alternative to it. My script if you can find something wrong with it is here:

    Code:
    global MeGUI_darx = 16
    global MeGUI_dary = 9
    LoadPlugin("C:\Users\Denis\Desktop\Megui\tools\avisynth_plugin\VSFilter.dll")
    LoadPlugin("C:\Users\Denis\Desktop\Megui\tools\dgindex\DGDecode.dll")
    LoadPlugin("C:\Users\Denis\Desktop\Megui\tools\ffms\ffms2.dll")
    FFvideosource("C:\Users\Denis\Desktop\encode\Sequence 01.mp4")
    TextSub("C:\Users\Denis\Desktop\encode\text.ass")
    To be honest it's more likely you're doing something you shouldn't than it is MeGUI is getting it wrong.

    If the above script is the whole script, there's no reason why the output resolution shouldn't be the same as the input resolution and the output aspect ratio shouldn't be 16:9. You always leave anamorphic encoding enabled?

    Don't force anything. The display aspect ratio in the script is 16:9 as it should be. MeGUI uses that display aspect ratio and the output video dimensions (after any cropping and resizing) to calculate and set the correct SAR (pixel aspect ratio) when encoding. If you've set the SAR in MeGUI's x264 encoder configuration, don't. Leave it at "default".

    When you load a script for encoding and open the video preview, the correct display aspect ratio should be displayed at the bottom of the preview window (ie 1.777777). There's a checkbox which causes MeGUI to resize the preview to the correct display aspect ratio (as would happen when playing the encoded video). Is the aspect ratio being shown as 16:9 (1.7777777) in the preview?

    Also..... there's a drop down box in the preview window (the one which opens after loading a script for encoding) which allows you to change the display aspect ratio. 99.9999999999999999999999999999999999999999% of the time the display aspect ratio will be correct and you shouldn't change it (unless you know you need to). Changing it there before adding the encoding job to the queue over-rides the display aspect ratio added to the script which in turn changes the SAR (pixel aspect ratio) MeGUI calculates when encoding. It's one way to over-ride the display aspect ratio but generally it's not something you'd need to do.

    If none of the above helps...... try posting your MeGUI log file. That'll show the SAR (pixel aspect ratio) being set, which in your case should be 4:3 for the video to display as 16:9. If not, the log file should provide a clue as to why.

    Are you sure it's the display aspect ratio not being set correctly when encoding rather than it being ignored on playback for some reason?
    Last edited by hello_hello; 18th Jun 2014 at 15:13.
    Quote Quote
  9. Originally Posted by _Al_ View Post
    force SAR in Megui, Config/Misc/Force SAR/4:3
    Originally Posted by shorto View Post
    I need it to force 16:9, the path you provided does not have 16:9 only 16:11 :/
    In your case 4:3 would be correct but the x264 encoder configuration only lets you set a few pre-defined SARs (pixel aspect ratios) anyway. Mostly it's better to leave it set to "default", enable anamorphic encoding if you don't want to resize to square pixels, crop and resize as you normally would (if need be) and let MeGUI take care of the SAR.
    Quote Quote
  10. Originally Posted by shorto View Post
    ok now I finally get SAR never did before. But still no matter what I force, the videos till comes out in 4:3.
    Some players don't respect SAR or DAR flags. Some players have settings that allow to to ignore them and play at the original frame size. Check your players.
    Quote Quote
  11. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    Originally Posted by jagabo View Post
    Originally Posted by shorto View Post
    ok now I finally get SAR never did before. But still no matter what I force, the videos till comes out in 4:3.
    Some players don't respect SAR or DAR flags. Some players have settings that allow to to ignore them and play at the original frame size. Check your players.
    Wow. Takes me back to the good ol' days with the old DivX "compatible" players and the AVI square pixel assumption.

    Some players, but not all - but always good times regardless!
    Last edited by PuzZLeR; 19th Jun 2014 at 08:33. Reason: Grammar
    I hate VHS. I always did.
    Quote Quote
  12. Hum mkay I have BSPlayer, MPC, VLC, QuickTime and Normal Windows Media Player installed, the only one that shows the aspect ratio I want is VLC.

    Is there any ways for me to force the encode to be 1920x1080 not 1440x1080 with MeGui?
    Last edited by shorto; 19th Jun 2014 at 05:52.
    Quote Quote
  13. MPC, MPCHC, VLC, WMP, KMPlayer, PotPlayer, SMPlayer all support h.264 SAR flags. Many of those players can be set to use internal or external readers, splitters, and codecs. It might be that you have them configured to use an external reader/splitter and that reader/splitter isn't passing the SAR flag along. MPC(HC) can show you the list of filters that are used to play the video. Right click on the window while playing and hover over Filters to see the list. Select any of them to see their properties and any internal settings.

    Also, aspect ratio information can be embedded in the video stream as well as flagged at the container level. Some players may use one or the other. I don't know if MeGUI sets both the embeded flags and the container flags.
    Quote Quote
  14. Originally Posted by shorto View Post
    Hum mkay I have BSPlayer, MPC, VLC, QuickTime and Normal Windows Media Player installed, the only one that shows the aspect ratio I want is VLC.

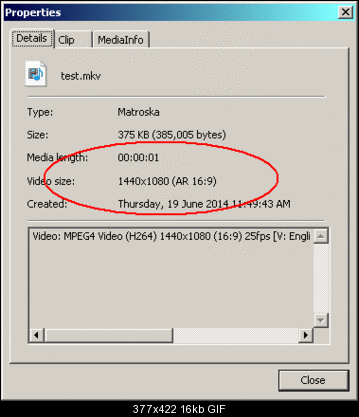

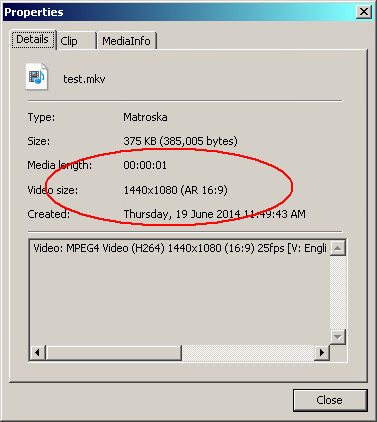

    So if you open the encoded video with MPC-HC and use the File/Properties menu, do you see this:

    Name:  mpc-hc.gif
Views: 260
Size:  16.1 KB

    If you do and it's not displaying the correct aspect ratio, you should try resetting MPC-HC (under Options/Miscellaneous). If you don't, the aspect ratio isn't being set correctly when encoding.

    Originally Posted by shorto View Post
    Is there any ways for me to force the encode to be 1920x1080 not 1440x1080 with MeGui?
    When using the script creator to create the script, don't enable anamorphic encoding. Click on the Config button next to the Avisynth Profile drop down box. In there you'll find a checkbox to allow "upsizing". Once it's checked, you can enable resizing in the script creator and it'll let you resize to 1920x1080. Or create a script and paste this at the end of it (before loading the script for encoding):

    Spline36Resize(1920,1080)
    Quote Quote
  15. Originally Posted by jagabo View Post
    Also, aspect ratio information can be embedded in the video stream as well as flagged at the container level. Some players may use one or the other. I don't know if MeGUI sets both the embeded flags and the container flags.
    It does. The pic in my previous post was from a MeGUI encode. I'm pretty sure the aspect ratio I highlighted is the container aspect ratio.
    By default, that's the one MPC-HC uses.
    Quote Quote
  16. What are those two variables in that Megui's Avisynth script for?
    Code:
    global MeGUI_darx = 16
    global MeGUI_dary = 9
    I'd take those two lines away and set SAR 4:3, this should be standard procedure to encode anamorphic video.
    Quote Quote
  17. Originally Posted by _Al_ View Post
    What are those two variables in that Megui's Avisynth script for?
    Code:
    global MeGUI_darx = 16
    global MeGUI_dary = 9
    I'd take those two lines away and set SAR 4:3, this should be standard procedure to encode anamorphic video.
    MeGUI adds them based on the input display aspect ratio (if anamorphic encoding is enabled), and uses them, along with the output resolution, to calculate the correct SAR.
    If you crop when creating a script, MeGUI will adjust those values accordingly so the SAR, and therefore output display aspect ratio, should always be correct. The system works fine, so why it appears not to be in this case, I'm not really sure. I had the impression shorto had already tried setting the SAR to 4:3 in MeGUIs encoder configuration and it didn't help, so maybe it's a playback problem.

    I assume he's using the x264 encoder and not Xvid...... although MeGUI will encode anamorphically using either.
