  1. Member
    Join Date: Nov 2010
    Location: DC
    Search Comp PM
    I've been working on restoring some old music videos transferred to DVD-R from a U-Matic tape (from April 1983). The audio/video quality's great for the time (the music and the videos range from OK to hilariously awkward, on the other hand :P ). However, I've noticed that there's a strange smearing, almost like color-bleed. None of my chroma-shift filters have any real effect on it, so I'm guessing it's a luma issue. Strangely, it only appears on certain portions, which leads me to believe it's either a production error (proper greenscreens mustn't have been invented 'til 1990 ), or a recording issue with the original tape.

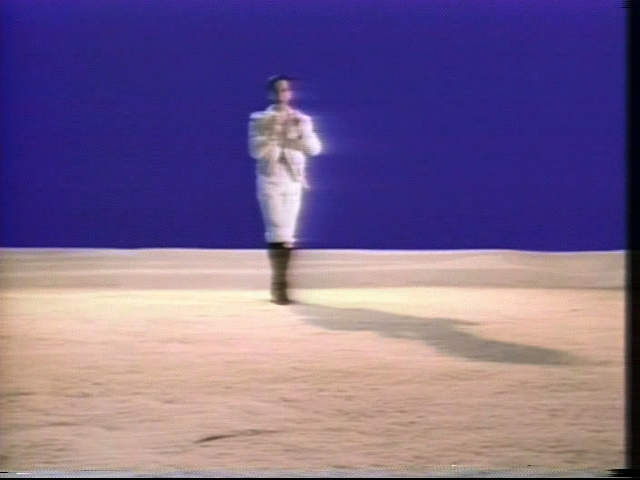

    Smearing:

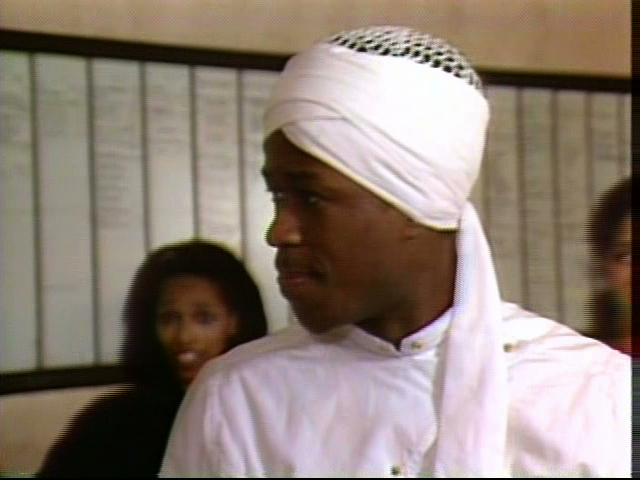

    No Smearing:



    So...can this be fixed? I mean, it's not a super-huge issue, but if it can be fixed easily, then so much the better
    Attached Files
    Quote Quote
  2. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM

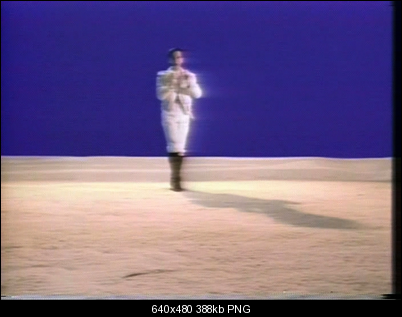

    Well the 1st one screenshot does have some color bleed. You can use avisynth filters to address improve the bleed a little

    e.g
    mergechroma(awarpsharp2(depth=36))
    Name:  0.png
Views: 142
Size:  388.1 KB



    But the black & white one obviously doesn't have color bleed That just looks like low resolution to me and exposure issues. Can't do anything about low luma resolution. You can local contrast enhancements, or try to sharpen a bit, but you will get halos

    EDIT:
    In the video sample, you have highlight areas that look to be previously clipped. That can lead to this "luma bleeding" effect , also details will be obscured in those bright areas . You can try to selectively bring down the highlights to recover some details, but most of the damage is permanent. It's tough to get rid of the actual "glow" or luma bleeding around objects in those overexposed sections, short of some rotoscoping / masking work
    Last edited by poisondeathray; 17th Jun 2014 at 18:21.
    Quote Quote
  3. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Lots of machines from that era, particularly U-matic & VHS/Beta, exhibited "overshoot" smear, where a bright or dark object left a small & slight trail to the right. The brighter/darker, the worse it got.
    This is likely caused by the electronics not being fast enough to accommodate the rise/fall time in the voltage changes of the signal. It goes to the right because that is how it is scanned (both in analog & digital) - that is "later".

    I see exhibits of that in all of those clips, though least in the last clip (2 clips, since it's from the same source).

    AVISynth is your best bet. Which filter to use...I'm not your best guide there.

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  4. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    And some of the original footage from that era had smear because of CCD smearing or Tube camera smearing . There are filters and techniques to recreate the 80's look, but few that work well to get rid of it
    Quote Quote
  5. Member
    Join Date: Nov 2010
    Location: DC
    Search Comp PM

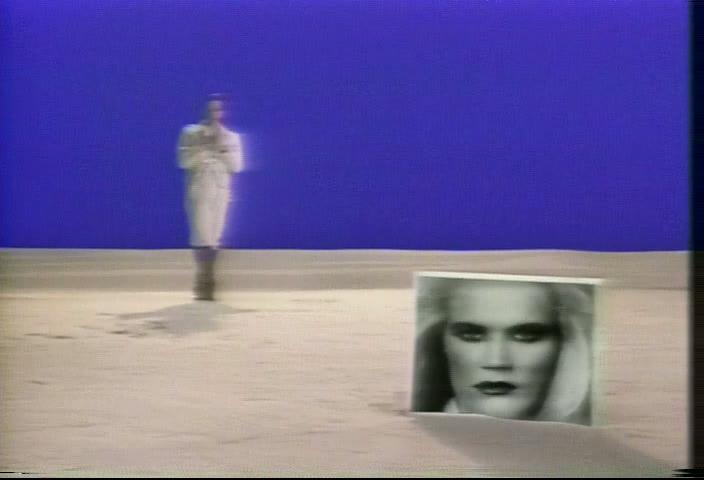

    I just tried something called Exorcist (which is meant for ghosting) and a simple color shift filter, and it seems to have ameliorated the situation:
    Attached Thumbnails Click image for larger version

Name:	Ex+Shift.png
Views:	28
Size:	871.1 KB
ID:	25789

    Quote Quote
  6. Member
    Join Date: Nov 2010
    Location: DC
    Search Comp PM
    Originally Posted by poisondeathray View Post

    EDIT:
    In the video sample, you have highlight areas that look to be previously clipped. That can lead to this "luma bleeding" effect , also details will be obscured in those bright areas . You can try to selectively bring down the highlights to recover some details, but most of the damage is permanent. It's tough to get rid of the actual "glow" or luma bleeding around objects in those overexposed sections, short of some rotoscoping / masking work
    I've tried that, and all it did was make the highlights look like crap. I did lower the contrast just enough to make the video safe, and for whatever reason, that didn't harm the video much.

    I actually just looked up the VEVO upload of the first video, and you can just make out a bit of smearing on that copy, too (in addition to some chroma noise on the blue shots). So, I guess it's safe to say it was there to begin with and it's only compounded since I have an nth generation dub instead of the master.
    https://www.youtube.com/watch?v=tX55HEX0hb0

    Anyways, here's a fully filtered copy of the video.
    Attached Files
    Last edited by John97; 17th Jun 2014 at 19:16.
    Quote Quote
  7. Member
    Join Date: Oct 2004
    Location: Freedonia
    Search Comp PM
    Maybe our resident AviSynth genius, jagabo, will join with an idea or two. He knows how to use some really crazy and obscure filters that can help on a lot of video problems.
    Quote Quote
  8. Video Restorer lordsmurf's Avatar
    Join Date: Jun 2003
    Location: dFAQ.us/lordsmurf
    Search Comp PM
    From what I see, it mostly need a chroma shift.

    I'd post the script, but I'm on the wrong computer.
    Quote Quote
  9. Member
    Join Date: Nov 2010
    Location: DC
    Search Comp PM
    Originally Posted by jman98 View Post
    Maybe our resident AviSynth genius, jagabo, will join with an idea or two. He knows how to use some really crazy and obscure filters that can help on a lot of video problems.
    Ehhh, I've tried AVIsynth and I could never really get it to work at all. I'm probably doing it wrong Keep in mind I'm on a Mac, so I'm running PC programs via Wine. Virtualdub works just fine (albeit a tad slow, especially with MPEG-2 files and NeatVideo), but command-line programs like AVIsynth are, alas, out of the question

    Originally Posted by lordsmurf View Post
    From what I see, it mostly need a chroma shift.
    It doesn't seem to be a chroma issue, since the chroma shift filters don't seem to affect that specific aspect of the video.
    Quote Quote

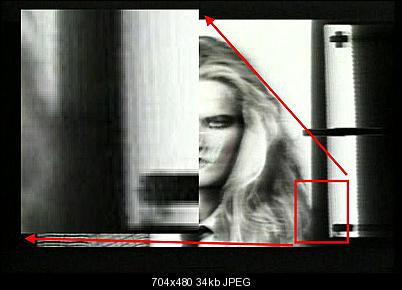

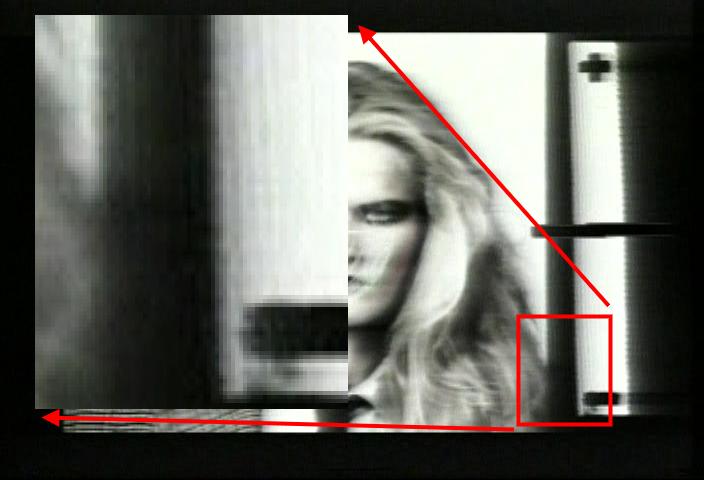

  10. You can run AviSynth under wine. I've done it before. But i'm not sure what you're talking about. These severe echos from an oversharpening filter?

    Name:  echos.jpg
Views: 114
Size:  33.6 KB

    Those appear in both your videos. On all the sharp, high contrast, vertical edges.
    Quote Quote
  11. Member
    Join Date: Nov 2010
    Location: DC
    Search Comp PM
    Hmm, maybe I've just had bad luck :\

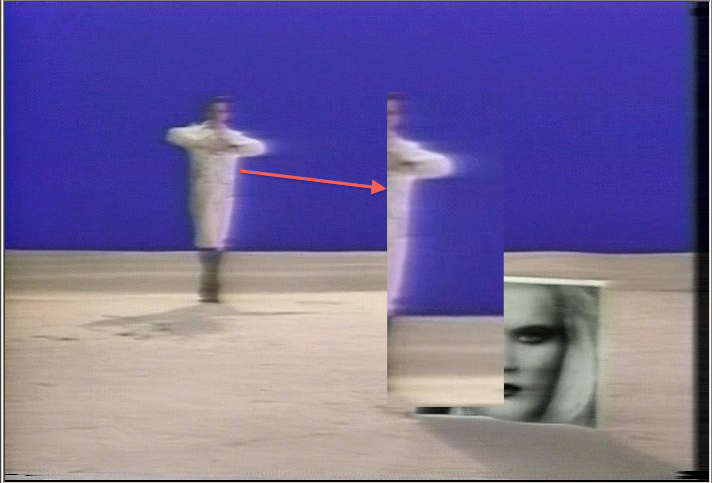

    That's not really what I was talking about. That ringing is easily filtered using a standard DotCrawl filter. This is what I'm talking about. As you can see, the chroma shift doesn't do anything to it.
    Attached Images
    Quote Quote
  12. You need to sharpen the chroma as well as shift it.

    Name:  sharp+shift.jpg
Views: 102
Size:  24.7 KB
    Last edited by jagabo; 18th Jun 2014 at 18:20.
    Quote Quote
  13. Member
    Join Date: Nov 2010
    Location: DC
    Search Comp PM
    How do I go about doing that? Is there a special filter for it?
    Quote Quote
  14. I did it with AviSynth:

    Code:
    MergeChroma(src, src.aWarpSharp(depth=24).aWarpSharp(depth=24).ChromaShift(C=-2))
    MergeChroma() combines the luma channel of one video (the first) with the chroma channels of another (the second). aWarpSharp() is a sharpening filter (both luma and chroma but we don't use the luma in this example). I used it twice in a row. ChormaShift(c=-2) shifts the chroma 2 pixels to the left (I may have used 4 in the uploaded sample image).

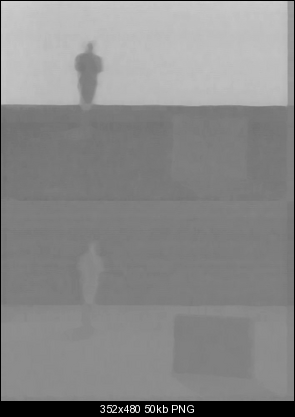

    Here are the U (top) and V (bottom) channels before sharpening:

    Name:  uvbef.png
Views: 84
Size:  49.3 KB

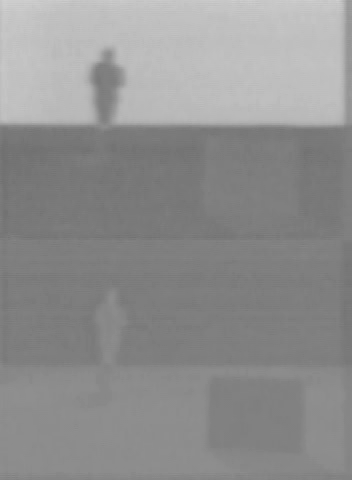

    and after:

    Name:  uvaft.png
Views: 82
Size:  49.7 KB

    You may be able to do this with an NLE by creating two version of the video, one normal, the other highly sharpened (a big unsharp mask). Then overlay the chroma from the sharpened video onto to the luma of the normal video.

    Note that I treated the video as if it was progressive here. That's OK since this is basically a still shot and this is just a demonstration. But for general use you should use proper interlaced handling.
    Last edited by jagabo; 19th Jun 2014 at 10:53.
    Quote Quote
  15. Video Restorer lordsmurf's Avatar
    Join Date: Jun 2003
    Location: dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by jagabo View Post
    You need to sharpen the chroma as well as shift it.
    Yep. Shift is first. When that fails, sharpen it.

    @John97
    But it's a smear issue, so we can only make it better -- not remove it 100%.
