VideoHelp Forum
+ Reply to Thread
Results 1 to 17 of 17
Thread
  1. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    I put 2048 under "Lock size" and "kbps" automatically go to a negative number. I just ignored that and tried to do the conversion, but I get a conversion time of 14 seconds and no final results.

    --------------------------------------------------

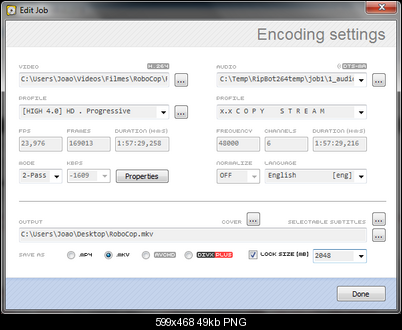

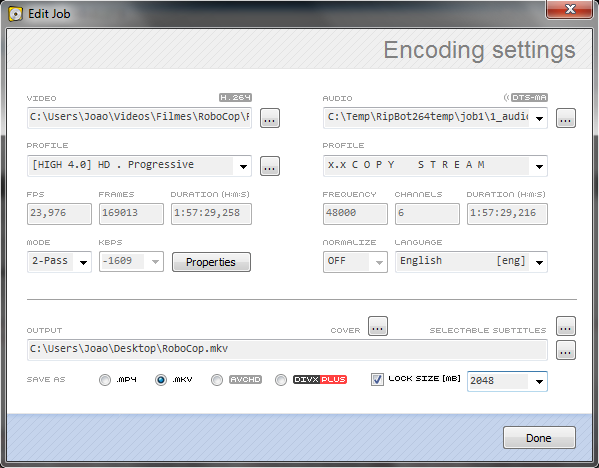

    Print screen project:
    Name:  Sem tÃ*tulo.png
Views: 161
Size:  49.4 KB

    Log:
    -------------------------

    C:\>"C:\Program Files (x86)\RipBot264_1.17.5\tools\avs2yuv\avs2yuv.exe" "C:\Temp\RipBot264temp\job1\job1.avs" -o - | "C:\Program Files (x86)\RipBot264_1.17.5\tools\x264\x264_x64.exe" --pass 1 --bitrate -1609 --stats "C:\Temp\RipBot264temp\job1\job1.stats" --fps 24000/1001 --force-cfr --min-keyint 24 --keyint 240 --frames 169012 --sar 1:1 --level 4.0 --aud --nal-hrd vbr --vbv-bufsize 25000 --vbv-maxrate 25000 --b-pyramid none --stdin y4m --output NUL -

    y4m [info]: 1920x800p 1:1 @ 10000000/417083 fps (cfr)

    x264 [error]: bitrate not specified

    x264 [error]: x264_encoder_open failed




    C:\Temp\RipBot264temp\job1\job1.avs: 1920x800, 10000000/417083 fps, 169012 frames

    error: wrote only 2285802 of 2304000 bytes


    C:\>"C:\Program Files (x86)\RipBot264_1.17.5\tools\avs2yuv\avs2yuv.exe" "C:\Temp\RipBot264temp\job1\job1.avs" -o - | "C:\Program Files (x86)\RipBot264_1.17.5\tools\x264\x264_x64.exe" --pass 2 --bitrate -1609 --stats "C:\Temp\RipBot264temp\job1\job1.stats" --fps 24000/1001 --force-cfr --min-keyint 24 --keyint 240 --frames 169012 --sar 1:1 --level 4.0 --aud --nal-hrd vbr --vbv-bufsize 25000 --vbv-maxrate 25000 --b-pyramid none --stdin y4m --output "C:\Temp\RipBot264temp\video.264" -

    y4m [info]: 1920x800p 1:1 @ 10000000/417083 fps (cfr)

    x264 [error]: bitrate not specified

    x264 [error]: x264_encoder_open failed




    C:\Temp\RipBot264temp\job1\job1.avs: 1920x800, 10000000/417083 fps, 169012 frames

    error: wrote only 2285802 of 2304000 bytes


    C:\>"C:\Program Files (x86)\RipBot264_1.17.5\tools\mkvtoolnix\mkvmerge.exe" -o "C:\Users\Joao\Desktop\RoboCop.mkv" --compression 0:none --title "RoboCop" --default-duration 0:24000/1001fps "C:\Temp\RipBot264temp\video.264" --compression 0:none --language 0:eng --sync 0:0 "C:\Temp\RipBot264temp\job1\1_audio_English.dt s"

    mkvmerge v6.6.0 ('The Edge Of The In Between') built on Dec 1 2013 17:55:00


    Error: The file 'C:\Temp\RipBot264temp\video.264' has unknown type. Please have a look at the supported file types ('mkvmerge --list-types') and contact the author Moritz Bunkus <moritz@bunkus.org> if your file type is supported but not recognized properly.

    -------------------------

    Elapsed Time: 00h:00m:14s
    --------------------------------------------------

    Please help! Thanks
    Quote Quote
  2. Member hech54's Avatar
    Join Date: Jul 2001
    Location: Yank in Europe
    Search Comp PM
    What are you talking about?
    Quote Quote
  3. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    Originally Posted by hech54 View Post
    What are you talking about?
    I want my film to stay with 2 gb, so I put in "lock size" 2048 mb. Ok, but when I start convert, I get this log and no results. What I think may be it is the value of "kbps" be negative, but I don't know why this happens. Is there a minimum amount that I can put in "lock size"?
    Quote Quote
  4. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    Try and see if it's the audio that causes it. Try change it from copy to some other audio codec.

    Or else might Ripbot264 calculate the average bitrate incorrect. You can then adjust the video bitrate manually with help of a bitrate calculator ...if you just know the bitrate for the dts audio track.
    Quote Quote
  5. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    Originally Posted by Baldrick View Post
    Try and see if it's the audio that causes it. Try change it from copy to some other audio codec.

    Or else might Ripbot264 calculate the average bitrate incorrect. You can then adjust the video bitrate manually with help of a bitrate calculator ...if you just know the bitrate for the dts audio track.
    Hey Baldrick, THANKS!
    It seems that the change of the audio profile worked for me, the number in "kbps" was positive, about 2000. Moved to the "5.1 FHG AAC-LC 320 kbps [abr]" profile. Now I'm converting the movie, let's see if it will work ...
    Now just wanted to understand why this worked, it would be because of the giant size of the type of DTS format I was trying to copy?
    Quote Quote
  6. Member
    Join Date: Sep 2012
    Location: Australia
    Search Comp PM
    You told it you wanted 2048kbps total, but the DTS-MA audio was already more than that. If you take the DTS-MA bit rate away from the 2048kbps then the video has to be encoded at -1609kbps to make up the difference... Now THAT"S compression!
    Quote Quote
  7. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    What is the dts-ma bitrate?
    Quote Quote
  8. vanished El Heggunte's Avatar
    Join Date: Jun 2009
    Location: Misplaced Childhood
    Search Comp PM
    LOL. Atak will have to fix the "feature" a.s.a.p.
    Last edited by El Heggunte; 3rd Jun 2014 at 16:21. Reason: ..........
    Quote Quote
  9. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    Originally Posted by ndjamena View Post
    You told it you wanted 2048kbps total, but the DTS-MA audio was already more than that. If you take the DTS-MA bit rate away from the 2048kbps then the video has to be encoded at -1609kbps to make up the difference... Now THAT"S compression!
    No, it means 2048 MB. Total file size. Not 2048kbits. But it's still probably too low for 2 hours dts-ma.
    Quote Quote
  10. Member
    Join Date: Sep 2012
    Location: Australia
    Search Comp PM
    Originally Posted by Baldrick View Post
    Originally Posted by ndjamena View Post
    You told it you wanted 2048kbps total, but the DTS-MA audio was already more than that. If you take the DTS-MA bit rate away from the 2048kbps then the video has to be encoded at -1609kbps to make up the difference... Now THAT"S compression!
    No, it means 2048 MB. Total file size. Not 2048kbits. But it's still probably too low for 2 hours dts-ma.
    That would make even more sense. I just extracted the DTS-MA audio from The Dark Knight Rises and it's total size is 4.61GB with a duration of 2:44:00 and a total bit-rate of about 4018kbps.
    Quote Quote
  11. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    Originally Posted by Baldrick View Post
    What is the dts-ma bitrate?
    Baldrick, follows the specifications of the original film, you can see that it is very big, 11.9 gb, and I think that is because of the dts audio...

    ------------------------------
    General
    Unique ID : 223105509918717886295707458425499849320 (0xA7D88EE83A78A720B44E1A4610429268)
    Complete name : C:\Users\Joao\Videos\Filmes\RoboCop\RoboCop.mkv
    Format : Matroska
    Format version : Version 4 / Version 2
    File size : 11.9 GiB
    Duration : 1h 57mn
    Overall bit rate mode : Variable
    Overall bit rate : 14.5 Mbps
    Encoded date : UTC 2014-06-03 02:57:47
    Writing application : mkvmerge v6.9.1 ('Blue Panther') 64bit built on Apr 18 2014 18:23:38
    Writing library : libebml v1.3.0 + libmatroska v1.4.1

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4.1
    Format settings, CABAC : Yes
    Format settings, ReFrames : 5 frames
    Codec ID : V_MPEG4/ISO/AVC
    Duration : 1h 57mn
    Width : 1 920 pixels
    Height : 800 pixels
    Display aspect ratio : 2.40:1
    Frame rate mode : Constant
    Frame rate : 23.976 fps
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Language : English
    Default : Yes
    Forced : No

    Audio
    ID : 2
    Format : DTS
    Format/Info : Digital Theater Systems
    Format profile : MA / Core
    Mode : 16
    Format settings, Endianness : Big
    Codec ID : A_DTS
    Duration : 1h 57mn
    Bit rate mode : Variable
    Bit rate : Unknown / 1 509 Kbps
    Channel(s) : 6 channels
    Channel positions : Front: L C R, Side: L R, LFE
    Sampling rate : 48.0 KHz
    Bit depth : 24 bits
    Compression mode : Lossless / Lossy
    Language : English
    Default : Yes
    Forced : No
    ------------------------------
    Quote Quote
  12. Member
    Join Date: Sep 2012
    Location: Australia
    Search Comp PM
    1 920x800. Not the original source either.

    One more version of MKVMerge and that output will tell us EVERYTHING we need to know and more...
    Quote Quote
  13. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    Originally Posted by ndjamena View Post
    1 920x800. Not the original source either.

    One more version of MKVMerge and that output will tell us EVERYTHING we need to know and more...
    Well, that's what I downloaded, man. And I think the problem is with the audio and not the video...
    Quote Quote
  14. Member
    Join Date: Sep 2012
    Location: Australia
    Search Comp PM
    You can't see the bit-rate from that MediaInfo output, since both the h.264 video and MA component of the DTS Audio are variable bit-rate. Currently, MKVMerge doesn't log the bps or number of bits and won't until the next version. You'd have to remux the DTS-MA into it's own container to have any idea what the bit-rate is, but since that would include the container overhead, it would only be semi-accurate anyway. MKVInfo -t is the only way to get accurate information about tracks for the moment.
    Quote Quote
  15. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    Originally Posted by ndjamena View Post
    You can't see the bit-rate from that MediaInfo output, since both the h.264 video and MA component of the DTS Audio are variable bit-rate. Currently, MKVMerge doesn't log the bps or number of bits and won't until the next version. You'd have to remux the DTS-MA into it's own container to have any idea what the bit-rate is, but since that would include the container overhead, it would only be semi-accurate anyway. MKVInfo -t is the only way to get accurate information about tracks for the moment.
    Is this what you need?

    -----------------------------------
    (MKVInfo) + EBML head
    (MKVInfo) |+ EBML version: 1
    (MKVInfo) |+ EBML read version: 1
    (MKVInfo) |+ EBML maximum ID length: 4
    (MKVInfo) |+ EBML maximum size length: 8
    (MKVInfo) |+ Doc type: matroska
    (MKVInfo) |+ Doc type version: 4
    (MKVInfo) |+ Doc type read version: 2
    (MKVInfo) + Segment, size 12811794496
    (MKVInfo) |+ Seek head
    (MKVInfo) | + Seek entry
    (MKVInfo) | + Seek ID: 0x15 0x49 0xa9 0x66 (KaxInfo)
    (MKVInfo) | + Seek position: 4099
    (MKVInfo) | + Seek entry
    (MKVInfo) | + Seek ID: 0x16 0x54 0xae 0x6b (KaxTracks)
    (MKVInfo) | + Seek position: 4258
    (MKVInfo) | + Seek entry
    (MKVInfo) | + Seek ID: 0x1c 0x53 0xbb 0x6b (KaxCues)
    (MKVInfo) | + Seek position: 12811756334
    (MKVInfo) |+ EbmlVoid (size: 4043)
    (MKVInfo) |+ Segment information
    (MKVInfo) | + Timecode scale: 1000000
    (MKVInfo) | + Muxing application: libebml v1.3.0 + libmatroska v1.4.1
    (MKVInfo) | + Writing application: mkvmerge v6.9.1 ('Blue Panther') 64bit built on Apr 18 2014 18:23:38
    (MKVInfo) | + Duration: 7049.217s (01:57:29.217)
    (MKVInfo) | + Date: Tue Jun 03 02:57:47 2014 UTC
    (MKVInfo) | + Segment UID: 0xa7 0xd8 0x8e 0xe8 0x3a 0x78 0xa7 0x20 0xb4 0x4e 0x1a 0x46 0x10 0x42 0x92 0x68
    (MKVInfo) |+ Segment tracks
    (MKVInfo) | + A track
    (MKVInfo) | + Track number: 1 (track ID for mkvmerge & mkvextract: 0)
    (MKVInfo) | + Track UID: 1
    (MKVInfo) | + Track type: video
    (MKVInfo) | + Lacing flag: 0
    (MKVInfo) | + MinCache: 1
    (MKVInfo) | + Codec ID: V_MPEG4/ISO/AVC
    (MKVInfo) | + CodecPrivate, length 40 (h.264 profile: High @L4.1)
    (MKVInfo) | + Default duration: 41.708ms (23.976 frames/fields per second for a video track)
    (MKVInfo) | + Video track
    (MKVInfo) | + Pixel width: 1920
    (MKVInfo) | + Pixel height: 800
    (MKVInfo) | + Display width: 1920
    (MKVInfo) | + Display height: 800
    (MKVInfo) | + A track
    (MKVInfo) | + Track number: 2 (track ID for mkvmerge & mkvextract: 1)
    (MKVInfo) | + Track UID: 2808778954803057284
    (MKVInfo) | + Track type: audio
    (MKVInfo) | + Codec ID: A_DTS
    (MKVInfo) | + Default duration: 10.667ms (93.750 frames/fields per second for a video track)
    (MKVInfo) | + Audio track
    (MKVInfo) | + Sampling frequency: 48000
    (MKVInfo) | + Channels: 6
    (MKVInfo) |+ EbmlVoid (size: 1107)
    (MKVInfo) |+ Cluster
    -----------------------------------
    Quote Quote
  16. Member
    Join Date: Nov 2013
    Location: São Paulo - Campinas
    Search Comp PM
    Converted movie. Excellent audio quality. Excellent video quality. Final file with 1.99 gb.
    Following specifications of the converted video.
    Thanks guys

    ------------------------------
    General
    Unique ID : 236639670900008985695299448582576614242 (0xB207248FF5484F81B80E444D67152B62)
    Complete name : C:\Users\Joao\Videos\Filmes\RoboCop\RoboCop.mkv
    Format : Matroska
    Format version : Version 4 / Version 2
    File size : 2.00 GiB
    Duration : 1h 57mn
    Overall bit rate mode : Variable
    Overall bit rate : 2 432 Kbps
    Movie name : RoboCop
    Encoded date : UTC 2014-06-04 00:15:10
    Writing application : mkvmerge v6.6.0 ('The Edge Of The In Between') built on Dec 1 2013 17:55:00
    Writing library : libebml v1.3.0 + libmatroska v1.4.1

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4.0
    Format settings, CABAC : Yes
    Format settings, ReFrames : 3 frames
    Codec ID : V_MPEG4/ISO/AVC
    Duration : 1h 57mn
    Bit rate mode : Variable
    Nominal bit rate : 2 112 Kbps
    Maximum bit rate : 25.0 Mbps
    Width : 1 920 pixels
    Height : 800 pixels
    Display aspect ratio : 2.40:1
    Frame rate mode : Constant
    Frame rate : 23.976 fps
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.057
    Writing library : x264 core 135 r2345 f0c1c53
    Encoding settings : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=6 / lookahead_threads=1 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=0 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=240 / keyint_min=24 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=2pass / mbtree=1 / bitrate=2112 / ratetol=1.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / vbv_maxrate=25000 / vbv_bufsize=25000 / nal_hrd=vbr / ip_ratio=1.40 / aq=1:1.00
    Default : Yes
    Forced : No

    Audio
    ID : 2
    Format : AAC
    Format/Info : Advanced Audio Codec
    Format profile : LC
    Codec ID : A_AAC
    Duration : 1h 57mn
    Channel(s) : 6 channels
    Channel positions : Front: L C R, Side: L R, LFE
    Sampling rate : 48.0 KHz
    Compression mode : Lossy
    Language : English
    Default : Yes
    Forced : No
    ------------------------------
    Quote Quote
  17. Member
    Join Date: Sep 2012
    Location: Australia
    Search Comp PM
    It takes a while to get there but this is the ultimate output of MKVInfo -t:

    Code:
    Statistics for track number 1: number of blocks: 236713; size in bytes: 29590727531; duration in seconds: 9872.9; approximate bitrate in bits/second: 23977322
    Statistics for track number 2: number of blocks: 925675; size in bytes: 4959156708; duration in seconds: 9873.87; approximate bitrate in bits/second: 4018005
    Statistics for track number 3: number of blocks: 115710; size in bytes: 4183143653; duration in seconds: 9873.92; approximate bitrate in bits/second: 3389246
    Statistics for track number 4: number of blocks: 308559; size in bytes: 236973312; duration in seconds: 9873.89; approximate bitrate in bits/second: 192000
    Statistics for track number 5: number of blocks: 308559; size in bytes: 552937728; duration in seconds: 9873.89; approximate bitrate in bits/second: 448000
    Statistics for track number 6: number of blocks: 3826; size in bytes: 17242121; duration in seconds: 9809.55; approximate bitrate in bits/second: 14061
    You didn't add the -t and just gave us the forward headers.
    Quote Quote
