  1. Hello,
    I have a video recorded from TV with a specific language that i want to export it as an ac3 audio track and sync with my already owned DVD as an extra audio language.
    What are the proper tools and method to sync them because they are out of sync and duration is a bit different as well like intro and credits stuff.

    Thank you.
    Quote Quote
  2. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    There is no simple way to do this.

    You can cut/stretch audio with audio editors like audacity but you can't preview it together with the video. You could try compare it against the other synced audio track.

    Or get an advanced video editor like vegas so you can both preview the video with the audio. But it might be tricky to import the ac3 audio and dvd video in the video editor.

    Extract audio with demultiplexers: http://www.videohelp.com/tools/sections/video-de-multiplexers
    Quote Quote
  3. I'm using a trial of TMPGEnc Video Mastering Works 5 but i'm unable to sync properly, i can stretch and move the audio on the timeline but if it was good at the beginning at the end it gets out of sync or in the middle and if i fix it from the end it gets out of sync in the beginning again. :/
    Quote Quote
  4. As said There is no simple way to do this.

    But have you considered dividing your audio into segments and making a piecewise sync.
    Quote Quote
  5. No i didn't, how to do that?
    Quote Quote
  6. Member hech54's Avatar
    Join Date: Jul 2001
    Location: Yank in Europe
    Search Comp PM
    With an audio editor.
    Quote Quote
  7. I don't know about TMPGEnc Video Mastering Works but it's normally quite strait forward. You make cuts on your audio track at appropriate points and try to sync the segments.
    Quote Quote
  8. Ok i will try the dividing method, thank you.
    @hech54, you don't say!
    Quote Quote
  9. Member Budman1's Avatar
    Join Date: Jul 2012
    Location: NORTHWEST ILLINOIS, USA
    Search Comp PM

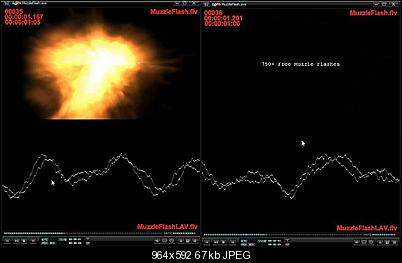

    It is possible to create a video of the soundtrack using LAV filter and display against the video.
    Click image for larger version

Name:	Part1.jpg
Views:	23
Size:	67.1 KB
ID:	25170
    Click image for larger version

Name:	part2.jpg
Views:	24
Size:	67.0 KB
ID:	25169

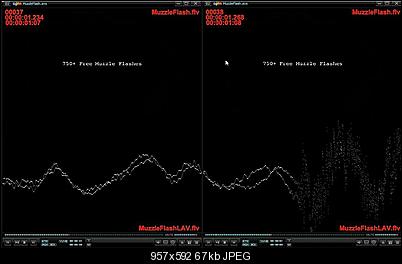

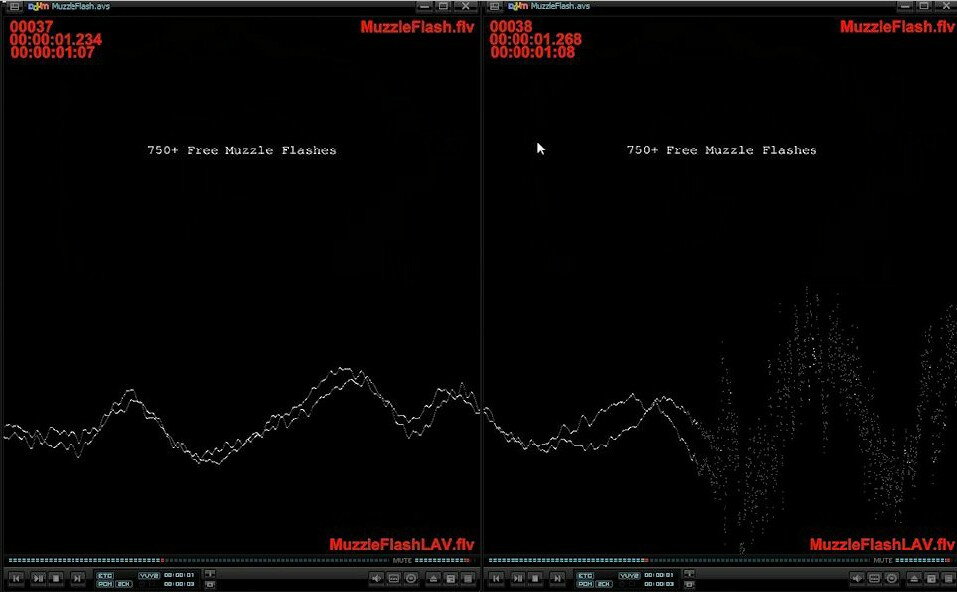

    Above shows the sound is delayed approximately 100 ms

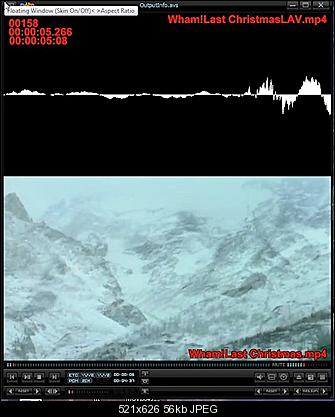

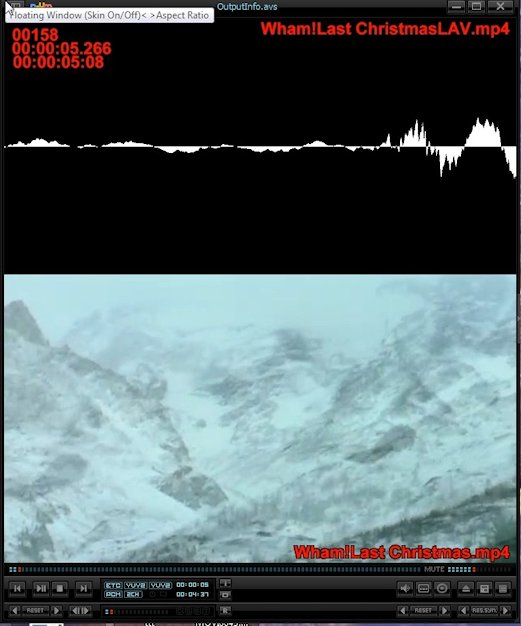

    You can also view as lines instead of points:
    Name:  part3.jpg
Views: 171
Size:  55.8 KB
    Last edited by Budman1; 12th May 2014 at 09:20.
    Quote Quote
  10. Can you explain further please, i'm not an expert.
    Quote Quote
  11. Member Budman1's Avatar
    Join Date: Jul 2012
    Location: NORTHWEST ILLINOIS, USA
    Search Comp PM
    This is done with FFMpeg and AVISynth. If you are familiar with these then use the following script, making sure it is same size, format, etc as the original:

    ffmpeg -ss 00:00:00.000 -f lavfi -i "amovie=../../../../../../../../../Users/Bud/Desktop/NameOfVideo.mp4,asplit[out0],showwaves=r=29.970=640x320:mode=line[out1]" -r 29.970 -s 640x320 -vcodec libx264 -vsync 1 -y "C:\Users\Bud\Desktop\NameOfVideoLAV.mp4"

    Then just Stack them using AVISynth:

    v1=DirectShowSource("C:\Users\Bud\Desktop\mpg test\NameOfVideo.mp4", Pixel_Type="yuy2")
    v2=DirectShowSource("C:\Users\Bud\Desktop\mpg test\NameOfVideoLAV.mp4", Pixel_Type="yuy2")
    stackvertical(v2, v1)
    Subtitle("NameOfVideoLAV.mp4", font="Arial", size=24, text_color=$ff0000, align=9)
    Subtitle("NameOfVideo.mp4", font="Arial", size=24, text_color=$ff0000, align=3)
    ShowFrameNumber(scroll=true, x=10, y=27, font="Arial", size=24, text_color=$ff0000)
    ShowTime(x=72, y=44, font="Arial", size=24, text_color=$ff0000)
    ShowSMPTE(fps=30, x=68, y=61, font="Arial", size=24, text_color=$ff0000)

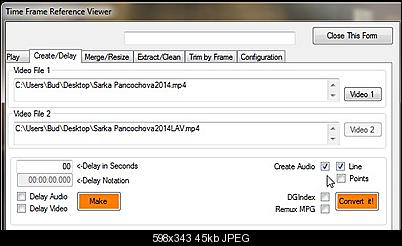

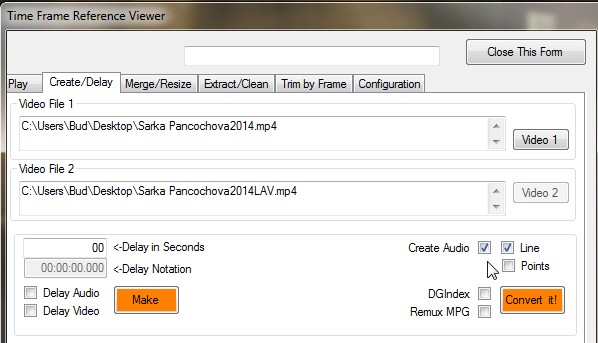

    I am currently debugging beta that does it for me:
    Name:  create audio.jpg
Views: 156
Size:  45.0 KB
    Last edited by Budman1; 12th May 2014 at 09:41. Reason: Smiley is :s
    Quote Quote
  12. Member hech54's Avatar
    Join Date: Jul 2001
    Location: Yank in Europe
    Search Comp PM
    Originally Posted by Budman1 View Post
    This is done with FFMpeg and AVISynth.
    Just what every newbie needs.....yet another suggestion involving AviSynth.
    Quote Quote
  13. I used some avs inside Virtualdub scripts but i'm not expert in the code itself, anyway i understand from your suggestion that it's comparing both video frame by frame to sync the audio?
    Quote Quote
  14. Member Budman1's Avatar
    Join Date: Jul 2012
    Location: NORTHWEST ILLINOIS, USA
    Search Comp PM
    Yes, I UNDERSTOOD from your post that you were not an expert but were somewhat familiar with scripts. Thars why I said it is POSSIBLE . Yes the ffmpeg script creates a video of the audio portion and you only need avisynth to stack them as in my example. Do you use either ffmpeg or avisynth?
    Quote Quote
  15. I'm not sure but all i have used in the past is an avs scripts that allows me to open an mkv file inside VirtualDub natively, i don't even know if those apps has a gui or just encoders so if you properly guide me i would be appreciated.
    Quote Quote
  16. Member turk690's Avatar
    Join Date: Jul 2003
    Location: ON, Canada
    Search Comp PM
    Originally Posted by danswano View Post
    I'm using a trial of TMPGEnc Video Mastering Works 5 but i'm unable to sync properly, i can stretch and move the audio on the timeline but if it was good at the beginning at the end it gets out of sync or in the middle and if i fix it from the end it gets out of sync in the beginning again. :/
    This is not uncommon with audio and video clips of the same program that came from different sources. But like baldrick said you have to use something proper like vegas or premiere.
    What I'd do in premiere is this: lay audio and video on tracks in a sequence. Preview and note where there are stretches of silence or parts of audio like incidental music (these do not critically have to be in sync); cut/splice on them, ending with separate shorter clips, ideally each no more than 5 to 10mins long. Play the timeline and attempt to move these clips so they sync with the corresponding video. Export when satisfied. What was achieved here included
    • no stretching/compressing of audio
    • easy to sync short cut clips to corresponding video at that timeline point
    • out-of-sync is no more than 1 to 3 frames worth (hopefully) anywhere for the duration of the movie, not noticed
    BTW this is exactly what videobruger above is saying
    Last edited by turk690; 12th May 2014 at 15:04.
    Stop feeling suicidal just because he unfriended you on fezbuk.
    Quote Quote
  17. Awesome details, thank you turk690
    Quote Quote
