    Hi

    considering my source https://dl.dropboxusercontent.com/u/39871584/C0020.mxf

    I use ffmpeg to:

    ffmpeg -i c0020.mxf -vcodec mjpeg -pix_fmt yuv422p -q:v 0 -an output.avi

    convert .mxf in mjpeg

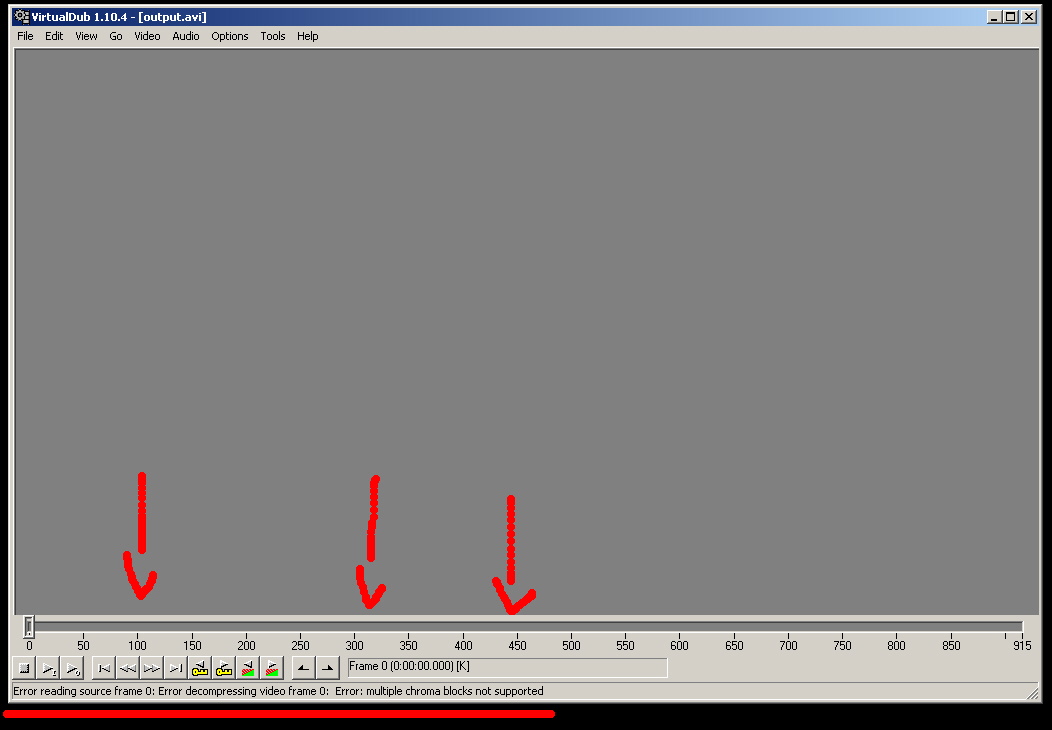

    But when I try to open it in virtualdub I get this error:

    Attachment 24636

    multiple chroma blocks not supported.


    Can I enhance the encoding in FFMPEG so virtualdub can open output.avi correctly, of course keeping the mjpeg encoding ?


    thanks

    ps. to decompress, in virtualdub, I use the internal decompressor (option, pref., avi-->prefer internal decoders)
    please I like to use internal mjpeg decompressor, not other decompressor
    Quote Quote

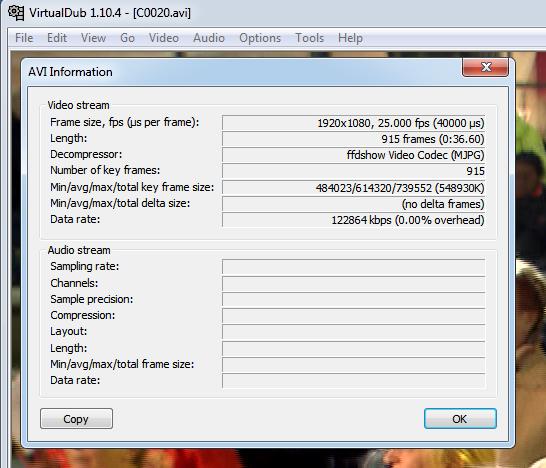

  2. I used your command line on the same source file. VirtualDub had no problem opening the AVI. ffmpeg was used to decode it.

    Name:  C0020.jpg
Views: 126
Size:  47.5 KB

    I suspect VirtualDub's internal MJPEG decoder doesn't support YUV 4:2:2.
    Last edited by jagabo; 24th Apr 2014 at 10:03.
    Quote Quote
  3. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Why do you want to use internal mjpeg decoder ?
    Quote Quote
  4. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Originally Posted by jagabo View Post

    I suspect VirtualDub's internal MJPEG decoder doesn't support YUV 4:2:2.
    Seems to decode ok with other MJPEG encoders, eg.. picvideo at 4:2:2


    marcorocchini - this doesn't affect results of vdub's internal decoder, but you can increase ffmpeg's mjpeg encoding quality by locking the min/max quantizers . If you don't specify min/max, the quantizer will still be variable

    -q:v 1 -qmin 1 -qmax 1
    Quote Quote
  5. Member
    Join Date: Apr 2013
    Location: Italy
    Search PM
    mmmmmmmmmmmmmmmmmmmmmmmmmmmm interesting. Absolute interesting.

    the -q:v 1 -qmin 1 -qmax 1 to increase quality.

    However it's strange that virtualdub can not decode with internal mjpeg decoder, wich means "multiple chroma blocks not supported" ?

    In effects does not seems a problem of 422, because ohters encoding (eg picvideo) in 422 are well opened by virtualdub. This problem is specific of the ffmpeg mjpeg. I have try to encode in mjpeg with virtualdub using the FFdshow mjpg and the risults is the same of the ffmpeg encoding ... what a terrible thing
    Quote Quote
