  1. Member
    Join Date: Apr 2013
    Location: Italy
    Search PM
    Hi

    considering my source https://dl.dropboxusercontent.com/u/39871584/C0020.mxf

    I use virtualdub (Virtualdub 1.10.04+FFmpeginputdriverplugin V0.8.1.4) in fast recompress mode to encode video with morgan mjpeg codec with this parameters:

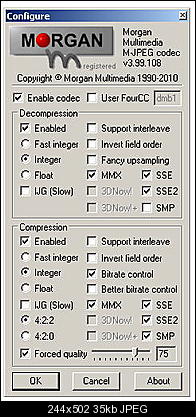

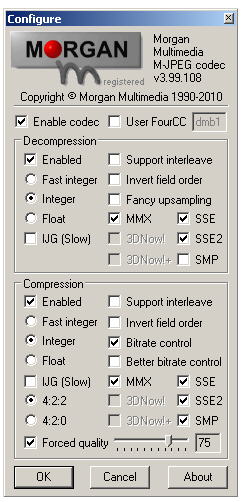

    Name:  MORGAN.JPG
Views: 175
Size:  35.1 KB

    General
    Complete name : D:\vd.avi
    Format : AVI
    Format/Info : Audio Video Interleave
    File size : 269 MiB
    Duration : 36s 600ms
    Overall bit rate : 61.7 Mbps
    Writing library : VirtualDub build 35491/release

    Video
    ID : 0
    Format : JPEG
    Codec ID : MJPG
    Duration : 36s 600ms
    Bit rate : 61.7 Mbps
    Width : 1 920 pixels
    Height : 1 080 pixels
    Original height : 1 088 pixels
    Display aspect ratio : 16:9
    Frame rate : 25.000 fps
    Color space : YUV
    Chroma subsampling : 4:2:2
    Bit depth : 8 bits
    Scan type : Interlaced
    Scan order : Top Field First
    Compression mode : Lossy
    Bits/(Pixel*Frame) : 1.190
    Stream size : 269 MiB (100%)

    But now I try to use mencoder as this:

    mencoder C0020.mxf -ovc vfw -xvfwopts codec=m3jpeg32.dll:compdata=dialog -nosound -o outputMencoder.avi

    and set in the dialog the same parameters used in virtualdub

    MEncoder sherpya-r36986+g9c99bc1-4.8 (C) 2000-2014 MPlayer Team
    success: format: 0 data: 0x0 - 0x106e6e60
    libavformat version 55.34.100 (internal)
    libavformat file format detected.
    [lavf] stream 0: video (mpeg2video), -vid 0
    [lavf] stream 1: audio (pcm_s24le), -aid 0
    [lavf] stream 2: audio (pcm_s24le), -aid 1
    [lavf] stream 3: audio (pcm_s24le), -aid 2
    [lavf] stream 4: audio (pcm_s24le), -aid 3
    [lavf] stream 5: audio (pcm_s24le), -aid 4
    [lavf] stream 6: audio (pcm_s24le), -aid 5
    [lavf] stream 7: audio (pcm_s24le), -aid 6
    [lavf] stream 8: audio (pcm_s24le), -aid 7
    VIDEO: [MPG2] 1920x1080 0bpp 25.000 fps 0.0 kbps ( 0.0 kbyte/s)
    [V] filefmt:44 fourcc:0x3247504D size:1920x1080 fps:25.000 ftime:=0.0400
    Loading codec DLL: 'm3jpeg32.dll'
    Loaded DLL driver m3jpeg32.dll at 10000000
    HIC: 2671b98
    568 - 568 - 568
    Compressor type: 63646976
    Compressor subtype: 47504a4d
    Compressor flags: 3, version 65536, ICM version: 260
    Flags: quality
    ICCompressGetFormatSize ret: 68
    Opening video filter: [expand osd=1]
    Expand: -1 x -1, -1 ; -1, osd: 1, aspect: 0.000000, round: 1
    ================================================== ========================
    Opening video decoder: [ffmpeg] FFmpeg's libavcodec codec family
    libavcodec version 55.52.102 (internal)
    Selected video codec: [ffmpeg2] vfm: ffmpeg (FFmpeg MPEG-2)
    ================================================== ========================
    Could not find matching colorspace - retrying with -vf scale...
    Opening video filter: [scale]
    Opening video filter: [flip]
    Movie-Aspect is 1.78:1 - prescaling to correct movie aspect.
    [swscaler @ 01474f00]using unscaled yuv422p -> bgr24 special converter
    Opening video filter: [expand]
    Expand: -1 x -1, -1 ; -1, osd: 0, aspect: 0.000000, round: 1
    Starting compression:
    Input format:
    biSize 40
    biWidth 1920
    biHeight 1080
    biPlanes 1
    biBitCount 24
    biCompression 0x0 ('')
    biSizeImage 6220800
    Output format:
    biSize 40
    biWidth 1920
    biHeight 1080
    biPlanes 1
    biBitCount 24
    biCompression 0x47504a4d ('MJPG')
    biSizeImage 6220800
    Output format after query/begin:
    biSize 40
    biWidth 1920
    biHeight 1080
    biPlanes 1
    biBitCount 24
    biCompression 0x47504a4d ('MJPG')
    biSizeImage 6220800
    Fontconfig error: Cannot load default config file 0mb A-V:0.000 [0:0]

    Fontconfig failed to select a font. Trying without fontconfig...
    New_Face failed. Maybe the font path is wrong.
    Please supply the text font file (~/.mplayer/subfont.ttf).
    subtitle font: load_sub_face failed.
    Fontconfig failed to select a font. Trying without fontconfig...
    New_Face failed. Maybe the font path is wrong.
    Please supply the text font file (~/.mplayer/subfont.ttf).
    subtitle font: load_sub_face failed.
    Writing header...
    ODML: vprp aspect is 16:9.
    Writing header...
    ODML: vprp aspect is 16:9.
    Pos: 0.1s 3f ( 1%) 0.00fps Trem: 0min 34mb A-V:0.000 [0:0]
    [VD_FFMPEG] DRI failure.
    Pos: 36.6s 916f (99%) 27.25fps Trem: 0min 293mb A-V:0.000 [67178:0]

    Skipping frame!
    Pos: 36.6s 917f (99%) 27.28fps Trem: 0min 293mb A-V:0.000 [67178:0]

    Flushing video frames.
    Writing index...
    Writing header...
    ODML: vprp aspect is 16:9.

    Video stream: 67178.013 kbit/s (8397251 B/s) size: 307339408 bytes 36.600 sec
    s 917 frames


    Resultant ouputMencoder.avi is:

    General
    Complete name : D:\outputMencoder.avi
    Format : AVI
    Format/Info : Audio Video Interleave
    File size : 293 MiB
    Duration : 36s 600ms
    Overall bit rate : 67.2 Mbps
    Writing application : MEncoder sherpya-r36986+g9c99bc1-4.8
    Writing library : MPlayer

    Video
    ID : 0
    Format : JPEG
    Codec ID : MJPG
    Duration : 36s 600ms
    Bit rate : 67.2 Mbps
    Width : 1 920 pixels
    Height : 1 080 pixels
    Original height : 1 088 pixels
    Display aspect ratio : 16:9
    Frame rate : 25.000 fps
    Color space : YUV
    Chroma subsampling : 4:2:2
    Bit depth : 8 bits
    Scan type : Interlaced
    Scan order : Top Field First
    Compression mode : Lossy
    Bits/(Pixel*Frame) : 1.296
    Stream size : 293 MiB (100%)


    But I demand: is shure the outputMencoder.avi is really YUV and not an RGB video file?

    If is RGB how can I change the commandline of mencoder to avoid YUV/RGB conversion (or internal hide conversion), can I encode in yuvj422p also to have correct video levels? ouputMencoder.avi have the black too stretched, meanwhile the virtualdub one (vd.avi) is correct
    Quote Quote
  2. vanished El Heggunte's Avatar
    Join Date: Jun 2009
    Location: Misplaced Childhood
    Search Comp PM
    Try adding the switch -vc mpeg12 to the command-line
    (according to the manpage at least, -vc is not an "Mplayer-only" option).

    Also, instead of opening the MXF file directly, you could use an intermediate Avisynth script
    Quote Quote
  3. Member
    Join Date: Apr 2013
    Location: Italy
    Search PM
    -vc mpeg12 does not work, however I have to achieve a mjpeg file

    with avisynt I have installed FFDshow (output YUY2) + LavSplitter to frameserve avisynth

    gatto.avs is :
    DirectShowSource("d:\c0020.mxf")
    ConvertToYUY2()

    and then:

    mencoder C:\gatto.avs -ss 0 -endpos 50 -ovc vfw -xvfwopts codec=m3jpeg32.dll:compdata=dialog -nosound -o outputMencoder.avi

    but seems nothing change, levels are bad.

    Hoewever I have try mencoder hoping preserve timecode and vtag=MJPG but also mencoder seems too problematic
