  1. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    Recently I acquired some 1st generation VHS that belonged to a friend mine who has passed. These are episodes of the Cher Show (solo) that re-aired on VH1 in 1998/1999. This series has never been on DVD and any advice on cleaning it up would surely be appreciated. I'm fairly familiar with VirtualDub and I'm becoming more familiar with avisynth using avspmod. Thanks

    https://www.mediafire.com/?vcg8v6llu3oufra

    15 second sample utvideo codec
    Quote Quote
  2. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:19.
    Quote Quote
  3. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:20.
    Quote Quote
  4. Member
    Join Date: Mar 2014
    Location: United States
    Search PM
    Using a VCR with S-Video output, or a running the composite through a better comb filter could help the checkerboarding.

    Some of it's just noisy analog cable, though.
    Quote Quote
  5. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:20.
    Quote Quote
  6. Member
    Join Date: Mar 2014
    Location: United States
    Search PM
    I think the herringbone was in the original signal. The angular hash/checkerboarding is poor capture/chroma decoding, the comb filter should be low-pass filtering the chroma so that it doesn't look like a sine wave.
    Quote Quote
  7. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:20.
    Quote Quote
  8. Member
    Join Date: Mar 2014
    Location: United States
    Search PM
    I don't know avsynth, but in YUV color space applying a low pass filter (0.5mhz should be fine for VHS captures) to the color components should fix this.
    Quote Quote
  9. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:20.
    Quote Quote
  10. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    I think the heringbone effect you're seeing must be coming into play in the capture somewhere? What would cause this. I don't think I've ever noticed it in my captures before. I'm playing through a Sony VCR and am passing through my Panasonic DVD-R (which I believe one of y'all here told me has a built in TBC on Line 1) and out the S-Video to VC500. I can definitely try to recapture with the blacks better. I thought I had the histogram going the whole time & it wasn't going into the red at all but I could be wrong. Maybe even settings in the Panasonic that need to be tweaked. I dunno.
    Quote Quote
  11. Member
    Join Date: Mar 2014
    Location: United States
    Search PM
    Which Panasonic DVD-R is it? And how does a DVD recording look? In XP mode it might be better.
    Quote Quote
  12. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:21.
    Quote Quote
  13. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:21.
    Quote Quote
  14. Member
    Join Date: Mar 2014
    Location: United States
    Search PM
    I suggested it since there's *something* wrong with this chain, causing the chroma checkerboarding, particularly noticable on the reds at 9.3 seconds, and the pink shirt around 12.7 seconds.

    Figured it'd be good to try some variations to see what was messing up the chroma decoding there.
    Last edited by happycube; 6th Mar 2014 at 18:22.
    Quote Quote
  15. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    It is a DMR E55. Oh I guess I misread what you were saying, sanlyn. So you're saying I didn't record the blacks black enough? That should be a easy fix
    Quote Quote
  16. Member
    Join Date: Mar 2014
    Location: United States
    Search PM
    The DMR-E55 is one of the older, good Panasonics, so try connecting the composite out into the VC500 and see if it does better?
    Quote Quote
  17. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    The composite versus the S-video?
    Quote Quote
  18. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:21.
    Quote Quote
  19. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    ok i'll try another capture and report back. What's funny is some of the other episodes taped from VH1 do not have the "herringbone" distortion. Maybe it was just a bad connection that day I dunno or maybe it's something on my end. I'll tinker around to be sure.
    Quote Quote
  20. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:21.
    Quote Quote
  21. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    I seem to recall noticing this issue once before when the "Line in NR" was set to "Off". I'll post another sample tomorrow. Thanks for all the help
    Quote Quote
  22. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    Herringbone pattern is apparent - flaws inherent from VHS source and capture, or maybe analog cable (as mentioned) and some crosstalk on those reds and pinks (also as mentioned).

    Looks like a job for a couple of resizes (down to 360x480 with precise bilinear then back up to 720x480 with lanczos to eliminate the crosstalk) and a strong dose of Neat Video with the temporal filter for that wavy noise.

    Not perfect but, for it being the middle of the night here, it will do.

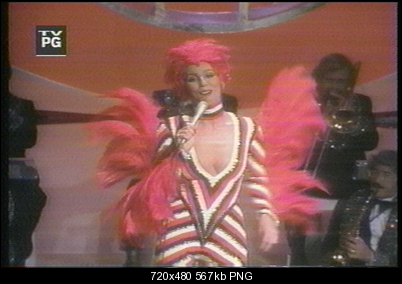

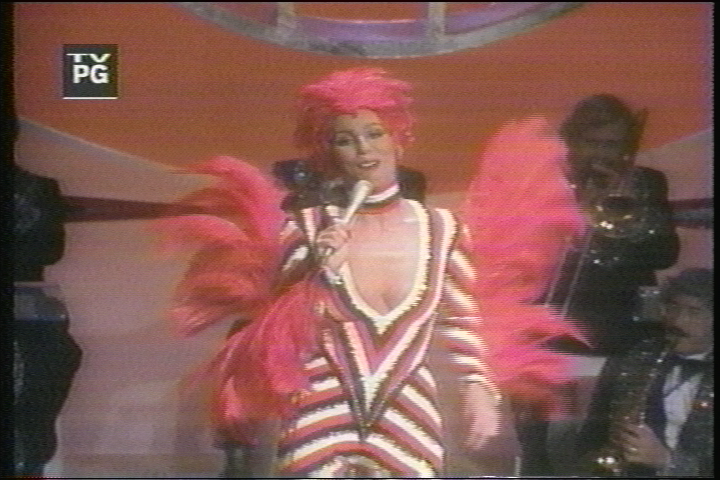

    Source:
    Name:  Source.png
Views: 757
Size:  567.1 KB

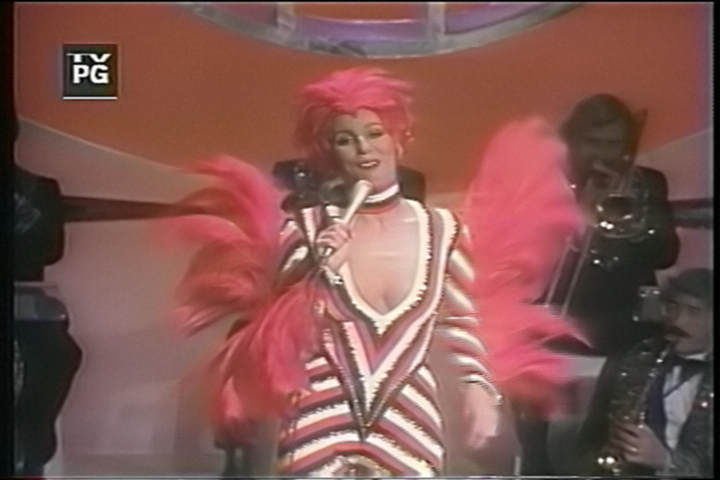

    Processed:
    Name:  Processed.png
Views: 748
Size:  412.0 KB

    Originally Posted by happycube View Post
    Using a VCR with S-Video output, or a running the composite through a better comb filter could help the checkerboarding.
    Are you suggesting a hardware solution? If so, what would you recommend?
    I hate VHS. I always did.
    Quote Quote
  23. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    Is this one any better?
    Attached Files
    Quote Quote
  24. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    A bit, but I'm being subjective. Blacks look nicer, and a few less artifacts. (Maybe less sharpening on this capture?) I believe Sanlyn would have better input on this.

    As for post processing, it's not really going to be easier or more difficult. It still has those herringbone and dot crawl artifacts. As well, don't worry too much about the coloring. As long as you don't oversaturate to clipped levels, or underdo it to near zero chroma it can always be corrected with the wide variety of color filters available, for VirtualDub and Avisynth.

    Having said that, it goes without saying that removing as many of the artifacts at the capture level as you can is ideal, but it's also quite normal to believe that every VHS capture will have its issues and need processing regardless.

    It's just the nature of the beast when dealing with an analog format being converted to digital.
    I hate VHS. I always did.
    Quote Quote
  25. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    That is true. Sanlyn just suggested I try a second capture with darker blacks. I think the few less artifacts may come from the Line in NR being turned on. I'm open to suggestions as to whether we like this or not lol
    Quote Quote
  26. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    Originally Posted by sanlyn View Post
    First try and a quickie. Still has a long way to go but I ran short of time. Some of the herringbone is still there. I doubt you'll get rid of it completely without ruining everything. Others can have a field day playing with it. Will have to fix this in 3 steps. Maybe 4. Maybe 5. Had to go to 16-bit plugins to prevent banding. Maybe you could get a better capture ? ? ? Looks over filtered right now, especially in MPC-BE player. I'll have to work on that.

    What happened to the audio? Kinda tinny, even for VHS.


    ED: OK. Re-posted.

    Later.
    Not sure what could be wrong with the audio. It's being fed into my Kenwood VR209 and passed through the cassette deck for attenuation and out to my E-MU 0202 USB for capture. I didn't think it sounded too shoddy. It is mono.
    Quote Quote
  27. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 03:22.
    Quote Quote
  28. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    I found this filter which seems to be what we may need but it may as well be written in Japanese. Figuring the parameters sounds like some technical math involved lol

    http://avisynth.org.ru/defreq/defreq.html
    Quote Quote
  29. Member
    Join Date: Apr 2005
    Location: USA
    Search Comp PM
    If the highlights being burned would be relative to the contrast right? I monitored the histogram the whole time while recording this clip & didn't see the right side (highlights) go into the red at all. *scratches head*

    Edit: nevermind I see where you say that lowering the black some more with fix this. I'll try again
    Quote Quote
  30. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    Originally Posted by sanlyn
    What happened to the audio? Kinda tinny, even for VHS.
    Originally Posted by Cherbette
    Not sure what could be wrong with the audio. It's being fed into my Kenwood VR209 and passed through the cassette deck for attenuation and out to my E-MU 0202 USB for capture. I didn't think it sounded too shoddy. It is mono.
    What you can try is capturing through your soundcard instead. VirtualDub allows this in the audio menu settings. Yeah, I know that such units, like the 0202, are meant to improve things, and I thought so myself when using Behringer mixers, etc. But they can be overkill for baseband VHS audio, and some tapes just sound so much better without them. A simple onboard soundcard, using 48k/16bit/stereo, is good enough for VHS audio.


    Originally Posted by Cherbette
    I found this filter which seems to be what we may need but it may as well be written in Japanese. Figuring the parameters sounds like some technical math involved lol

    http://avisynth.org.ru/defreq/defreq.html
    Looks promising and worth a try. I wonder how it will do on dropouts, which seems to be one of the bigger challenges in restoration.

    Originally Posted by sanlyn
    I think the main purpose of the exercise is to see if a poor connection might have caused the big problem, or if that stripey junk is really on the original source. I do have a couple of old VHS cable recordings where the damn cable station had similar Fm "hash" (crosshatching) in the signal. Cleaning it 100% produced an unwatchable video. I got rid of a lot of it, and just live with the rest.
    This is quite challenging to determine, especially if the original recorder is no longer with us, but I see your point if it benefits at the capture level.

    Some of the grain is too fine to be part of the source, but the wavy lines issue can be either way. But it makes little difference in post processing if you can not determine the root cause to solve it earlier in the workflow.

    And yes, post processing is, in many ways, a path of compromise, especially when it comes to VHS video. The problem with VHS video, and capturing it - unlike, for example, DV tape - is that it was never designed for the digital age. I've accepted that, therefore I captureth and restoreth as bestest possible and moveth on...
    Last edited by PuzZLeR; 7th Mar 2014 at 12:22.
    I hate VHS. I always did.
