    Apologies if this has already been asked before... I searched through, but couldn’t find anything specific to my setup.

    Equipment I have:

    Laserdisc Player - Sony MDP A550
    Output: 1X RCA (Audio/Video)
    NTSC only
    AC 220-240V
    50/60HZ
    40W
    http://movie-memorabilia-emporium.blogspot.co.uk/2014/02/sony-mdp-a550-laserdisc-player.html

    Pioneer DVD Recorder
    DVR-420
    Output: 2 x SCART Output
    Output: 1 RCA (Audio/Video)
    Output: 1 S-Video
    Output: Optical Digital Audio
    80GB Hard Disk Drive
    Switchable between PAL / NTSC (recording and burning)
    http://www.pioneer.eu/uk/products/archive/DVR-420H-S/page.html

    Acer Laptop
    Windows 7
    i3 / 4GB RAM
    250GB Hard Disk Drive
    Input: USB

    Apple Mac Pro
    Snow Leopard
    Dual-Core Intel Xeon
    2.66 GHz
    2GB RAM
    250GB Hard Disk Drive
    Input: USB
    Input: Firewire



    What I want to do:

    I have a bunch of NTSC laserdiscs I want to back up.
    Previously I have hooked the laserdisc player up to the DVD Recorder via RCA phonos (as the laserdisc player only has RCA phono output)
    Then recorded the Laserdisc to the DVD Recorder HD and then used the DVD Recorders (rudimentary) editing features to trim and organise.
    Name the individual videos (main title, trailer, deleted scenes etc) and then author to DVD-R using the DVD recorder.

    However, I now want to cut out the DVD Recorder and go straight from the Laserdisc player to either the Mac or the Win 7 laptop.
    • on the assumption that I can get a better looking and sounding backup of the laserdisc
    • so that I have more editing features and can create more professional looking menus and navigation before authoring to DVD-R

    So, the big question is:

    Which should I use? The Mac or the Win 7 laptop? Given that the Win 7 laptop only has USB inputs and the Mac has USB and Firewire inputs as well as a bunch of empty PCI slots free at the back.

    On the Mac I have i-Movie and i-DVD.
    On the Win 7 Laptop I have no image capture software or DVD menu creation software that I am aware of.

    I have been looking at the following hardware:

    August VGB200
    USB 2.0 Video and Audio Capture Card for MAC and PC - S Video / RGB to USB Transfer Cable - External Grabber Lead for Window 7 / XP / Vista / Mac OS X v10.5 or above
    http://www.amazon.co.uk/gp/product/B008FK5NOA/sr=8-2/qid=1393501222/ref=olp_product_de...productDetails

    And from what I can tell from the reviews and youtube, it captures video to the HD, so I can then edit, trim etc before authoring to DVD-R.

    Additional Questions:

    With a budget of £20 - £30: will this product suffice? Or can I do better?
    Would I be better using this device with the Mac or the Win 7 Laptop?

    Based on the answer to the above question:
    Should I use the Mac with i-Movie and i-DVD?
    What programs (preferably free) on the Win 7 Laptop should I use?

    Any help or advice would be greatly appreciated.
    Quote Quote
  2. Member hech54's Avatar
    Join Date: Jul 2001
    Location: Yank in Europe
    Search Comp PM
    Me personally.....I would stick to the recorder if it is possible to pull the data from the recorder's HDD directly to a computer instead of burning to a DVD in the recorder.
    Quote Quote
  3. Member
    Join Date: Feb 2014
    Location: Wales UK
    Search Comp PM
    Originally Posted by hech54 View Post
    Me personally.....I would stick to the recorder if it is possible to pull the data from the recorder's HDD directly to a computer instead of burning to a DVD in the recorder.
    I did consider this... however:

    • I have no idea what format the files would be in (although I assume MPEG)
    • I have no idea what format the HDD is in and whether or not it would be readable on a Mac / Win 7 (although I would assume it would be either NTFS or Fat 32

    and the big one...
    • I would have to open up and pull out the HDD every time I want to transfer a file to the Mac / Win 7

    But I am open to suggestions
    Quote Quote
  4. Member
    Join Date: Oct 2004
    Location: Freedonia
    Search Comp PM
    As an IT guy with years of experience with Windows, Mac and Linux/Unix, I can tell you that EVERYTHING is HARDER on a Mac. You'd be better off to go with Windows.

    You get what you pay for with capture devices and no offense, but people like you are always assuming that only suckers pay more for capture devices and you can get just as good results with some cheap crap that nobody has ever heard of. Many reviews on Amazon are shills or from know nothing customers who are ecstatic that the thing worked at all and care nothing about quality. If you fall into the "just get it done as quickly as possible" category and getting it done quickly and easily is far more important to you than any other considerations like quality, then I suppose you could consider that, but I'm not personally seeing how any device that small could be anything but a POS. Don't come back here expecting a lot of device specific help if you do get it because none of our experienced members have ever used it.

    Whatever you get, you should do all your captures via old style composite video (typically this has a yellow connector) and not via S-video as laserdisc was not designed to use S-video correctly.

    Many if not all DVD recorders that use hard drives encrypt what they record. You'll have to research whether it's even possible to work the data once it's on a hard drive if you want to consider hech54's suggestion. And note that the hard drives are often in some file system used under Linux that neither Mac nor Windows will natively support. I know that you aren't very enthused about that idea with good reason.

    To be blunt, if you fall into the "just want to get it done as quickly as possible" camp, you'd probably be a lot better off to just use the DVD recorder than buy a cheap capture device, go to a ton more effort to edit your captures and make DVDs out of them only to find out that the quality is worse.
    Quote Quote
  5. Member
    Join Date: Feb 2014
    Location: Wales UK
    Search Comp PM
    Originally Posted by jman98 View Post
    You get what you pay for with capture devices and no offense, but people like you are always assuming that only suckers pay more for capture devices and you can get just as good results with some cheap crap that nobody has ever heard of.
    Erm... Im not sure if that is an insult or not? 'People like me'?
    Care to explain?

    Am I not up to your standards because I don't own a high end Windows editing PC?

    Im a bit baffled by your response... Also by you lack of help, despite the 5 paragraphs telling me how dumb I am.
    You offer me no practical advice... given the equipment I've got and my reluctance to open up the DVD recorder and putting aside your issues with Mac hardware / software... do you actually have any specific practical suggestions?
    Quote Quote
  6. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 04:31.
    Quote Quote
  7. Member
    Join Date: Feb 2014
    Location: Wales UK
    Search Comp PM
    Originally Posted by sanlyn View Post
    Going the capture to PC route might of course take far more time and effort and usually yields better results, but laserdisc shouldn't need all that much fixing unless the source has real problems (and many of them do). Whether or not the DVD recorder has a hard drive, if you plan to do any editing, cutting, cleanup, etc., you can record to either HDD or disc at highest bitrates and copy (not record) that recording to a PC if you want to do more work with it. If the video is too long to fit on a DVD-R at highest quality but you want to edit, you can get it to the computer in one of two ways: record as much as you can, say the first hour or so, and copy that recording from disc to PC. Then record the rest and do the same thing with the rest of the video. Or: record at the hard drive at the highest quality, then use the DVD recorder's editing features to cut the video into two or more parts that will each fit on a DVD disc, then copy what's on that DVD disc to your PC.

    Assuming you want it all on one disc with no further work, set the bitrate accordingly and accept the results you get on a single disc.

    I agree with jman98. Cheapo capture devices are cheap. Period. You don't have to spend a fortune, but going with the bottom of the barrell won't save you anything and you won't like the results. Working with a laptop, too, is another way to make life long and hard, and a Mac will make it more difficult. As people say, it's not 1984 any more and the playing field has changed considerably.
    So lets say I connect the Laserdisc to the DVD Recorder and record to the Recorded HDD in the highest quality possible and then figure out how much video will then fit on a DVD-R 4.7gb without quality loss and then run off as many - lets say - 1hr long DVD-R 4.7gb discs as need be...

    Then I have a bunch of DVD-R's in VIDEO_TS format (the recorder does not record to AVI or MPEG format as far as I know)

    So what is the next step? What's the best way to then convert the VIDEO_TS to something workable? AVI MPEG (I assume) etc
    And then, what do I use to stitch and / or edit these files?
    And then, what should I use to author a DVD with menus? (chapters, special features etc)

    NB: Im only after the audio commentary channels, so there will be no need for multiple audio, unless there are multiple audio commentaries - but I'll cross that bridge if and when I come to it...
    Quote Quote
  8. Banned
    Join Date: Oct 2004
    Location: New York, US
    Search Comp PM
    -30-
    Last edited by sanlyn; 19th Mar 2014 at 04:31.
    Quote Quote
  9. Member
    Join Date: Feb 2014
    Location: Wales UK
    Search Comp PM
    Originally Posted by sanlyn View Post
    DVD recorders record DVD (MPEG2). They do not record AVI. AVI is a container, not a format.

    DVD recorders don't record VIDEO_TS folders with video VOB files inside a folder. They record a single full-length MPEG2. When you burn that video to disc, the recorder's edit features create the necessary folders and indexes and converts that MPEG to a "DVD" for disc playback. The exact file and sector format of the HDD itself is different for different recorders.

    To get the disc content onto a PC, you can use free or paid stuff to copy the VOB files into a single MPEG on your PC. Note that the video is copied, not recorded or captured. From there you can use free or paid editors/re-encoders\authoring\burning software to do whatever you want. Keep in mind that color correction, noise reduction, timeline editing, etc. etc., involve decoding and re-encoding the video. Re-encoding involves a generation loss, unless you use a smart-rendering MPEG editor to make simple cuts and joins. The more complicated you get, the more complex the software you'll have to use and the more you'll have to learn about processing video. Some of the best software that you can use for this processing is free, some of it isn't.

    MPEG, like AVCHD and BluRay, are not designed as "editable" formats in the sense of complicated correction or timeline work. They are designed as lossy-compressed final delivery formats. Video encoding/re-encoding is a lossy process; it's not like ZIP or RAR.

    So getting your VOB's onto a computer is a simple copying process. VOB2MPG is one free utility that can perform that work. What you'll need after that step depends on what you want to do with the video.

    You can check our "Software" section for various tools. It is possible to edit MPEG without re-encoding, using smart-rendering editors. Smart rendering means that the cut sections are re-encoded only partially to join a few frame groups to your final output, rather than re-encoding the entire video. Most editors will re-encode a video in its entirety, which involves re-encoding loss. The better smart editors have quality rendering engines that make those cuts transparent during normal playback. Smart-rendering editors such as TMPGenc MPEG Smart Renderer and few freebies have a few more features than simpler free editors, while expensive stuff from Vegas and Adobe cost more but have oodles of features (and if you don't know what you're doing, some of those features can wreck a video). The software section also features free and paid authoring and burning programs. You will get better results from apps that specialize at what they do: edit, author, or burn. A one-in-all that does everything and produces high quality output will cost plenty and involves a considerable learning curve.

    If you are using a Mac, your choices are severely limited.
    Many thanks sanlyn
    That was a really helpful post.
    I'll go with the Laserdisc to DVD Recorder to DVD-R to VOB2MPG process and then I'll research and figure out which editing software I use. (Win 7 route me thinks)

    Many thanks for all the links. Really helpful.
    Quote Quote
  10. Member hech54's Avatar
    Join Date: Jul 2001
    Location: Yank in Europe
    Search Comp PM
    The most important thing is DO NOT let the recorder squash down the "Fine" recording to fit on a single layer DVD. If you need to take 1/2 hour pieces of video per DVD.....DO IT. Even good quality Verbatim DVDs are inexpensive.


    Oh....and I happen to own a DVD recorder that can do a straight transfer from the HDD to my computer. That is the only reason I mentioned it. I understand there are not many that can do that. Sorry for the confusion.
    Quote Quote
  11. Member
    Join Date: Feb 2014
    Location: Wales UK
    Search Comp PM
    Originally Posted by hech54 View Post
    The most important thing is DO NOT let the recorder squash down the "Fine" recording to fit on a single layer DVD. If you need to take 1/2 hour pieces of video per DVD.....DO IT. Even good quality Verbatim DVDs are inexpensive.


    Oh....and I happen to own a DVD recorder that can do a straight transfer from the HDD to my computer. That is the only reason I mentioned it. I understand there are not many that can do that. Sorry for the confusion.
    Ahhh... gotcha
    Quote Quote
  12. Member
    Join Date: Aug 2014
    Location: Europe
    Search Comp PM
    I was searching a zero quality loss method and found this:
    http://www.laserdiscarchive.co.uk/laserdisc_archive/sony/sony_viw-5000/sony_viw-5000.htm
    http://bit.ly/YgmksE

    Probably it's not related to what op asked but it's interesting, I wonder if that player could be disconnected and plugged to a normal desktop PC, that would make things a lot easier, there is another solution but for Pioneer players only:
    https://web.archive.org/web/20030919062348/http://www.osn.state.oh.us/5_help/default.asp?pg=6.3

    Did anyone ever manage to read a LD from a PC interface? I really want to convert my LD to Blu-ray but at the same time I don't wanna lose any quality
    Quote Quote
  13. The PC can only control the transport of that player (seek, play, pause, etc.). It can't access the picture.

    Capturing laserdisc output can't be "lossless". The signal stored on the laserdisc is analog composite video. It has to be digitized one way or another. The quality of that digitization (and any subsequent filtering) determines the quality.

    The analog recording on the laserdisc is composite video. The s-video output from laserdisc players is usually pretty poor -- the comb filter leaves a lot of dot crawl artifacts. The dot crawl filter of most composite capture devices is superior.
    Quote Quote
  14. Member
    Join Date: Aug 2014
    Location: Europe
    Search Comp PM
    so it's like vhs? some time ago I read somewhere that the audio can be extracted lossless, I don't remember exactly how but I thought it would be the same for the video, too bad if it's analog...
    Quote Quote
  15. A few laserdiscs to have digital audio. But the video is always analog composite.
    Quote Quote
  16. Member
    Join Date: Oct 2004
    Location: Freedonia
    Search Comp PM
    Originally Posted by Tonnad View Post
    Did anyone ever manage to read a LD from a PC interface? I really want to convert my LD to Blu-ray but at the same time I don't wanna lose any quality
    Nope. Nobody has ever reported a way to do this.

    All the capture devices I know of will only record LD in standard definition resolutions so you don't really gain anything by going to BluRay unless you need the larger disc size. You'll still be dealing with standard definition video on BluRay unless you do your own upscaling and I don't recommend that.
    Quote Quote
  17. Originally Posted by jman98 View Post
    Originally Posted by Tonnad View Post
    Did anyone ever manage to read a LD from a PC interface? I really want to convert my LD to Blu-ray but at the same time I don't wanna lose any quality
    Nope. Nobody has ever reported a way to do this.

    All the capture devices I know of will only record LD in standard definition resolutions so you don't really gain anything by going to BluRay unless you need the larger disc size. You'll still be dealing with standard definition video on BluRay unless you do your own upscaling and I don't recommend that.
    There was a brief experiment by Philips in the early '80s - yes the 1980s! - with content on LD accessible through a computer. It was a computer that had its own harddisk! That probably tells you how long ago it was. But in theory this was an LD-ROM.
    This is nøt å signåture.™
    Quote Quote
  18. Originally Posted by Pineapples101 View Post
    What I want to do:

    I have a bunch of NTSC laserdiscs I want to back up.
    Previously I have hooked the laserdisc player up to the DVD Recorder via RCA phonos (as the laserdisc player only has RCA phono output)
    Then recorded the Laserdisc to the DVD Recorder HD and then used the DVD Recorders (rudimentary) editing features to trim and organise.
    Name the individual videos (main title, trailer, deleted scenes etc) and then author to DVD-R using the DVD recorder.
    Just a note, you might also check if the videos, when you manage to transfer them, still have the "CC" subtitles. I know of a number of films that have English subtitles (and 4 channel surround) ONLY on LaserDisc.

    OK, English subs for English audio aren't essential. But for some films, like "Return of the Musketeers", I would have found it really helpful if I had been able to extract the Closed Captioning from the US LaserDisc (there are no subtitles available anywhere else).

    (Oh other films I wouldn't mind the captions of are Being Human (Robin Williams, 1994) and Jupiter's Darling. Just in case anyone has these LDs lying around. )
    This is nøt å signåture.™
    Quote Quote
  19. Member 2Bdecided's Avatar
    Join Date: Nov 2007
    Location: United Kingdom
    Search Comp PM
    Originally Posted by Spiny Norman View Post
    There was a brief experiment by Philips in the early '80s - yes the 1980s! - with content on LD accessible through a computer. It was a computer that had its own harddisk! That probably tells you how long ago it was. But in theory this was an LD-ROM.
    There was something produced that was far more than an experiment - many libraries and a few schools in the UK had one...
    http://en.wikipedia.org/wiki/BBC_Domesday_Project

    It was quite a project transferring the video and data to a newer format...
    http://www.ariadne.ac.uk/issue36/tna

    It's not really relevant to capturing normal laserdiscs though.

    Cheers,
    David.
    Quote Quote
  20. Originally Posted by 2Bdecided View Post
    There was something produced that was far more than an experiment - many libraries and a few schools in the UK had one...
    http://en.wikipedia.org/wiki/BBC_Domesday_Project

    It was quite a project transferring the video and data to a newer format...
    http://www.ariadne.ac.uk/issue36/tna

    It's not really relevant to capturing normal laserdiscs though.

    Cheers,
    David.
    No, it was a bit of trivia only. But apart from the Domesday book there was another setup with the Philips VP831 or VP835. I've seen it at a national library, where it was used to store images of medieval manuscripts. No longer functioning but no-one had noticed yet. This is the player model (apparently the port at the back - not pictured here - was a serial port of some sort):

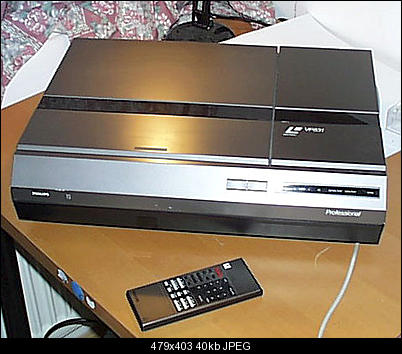

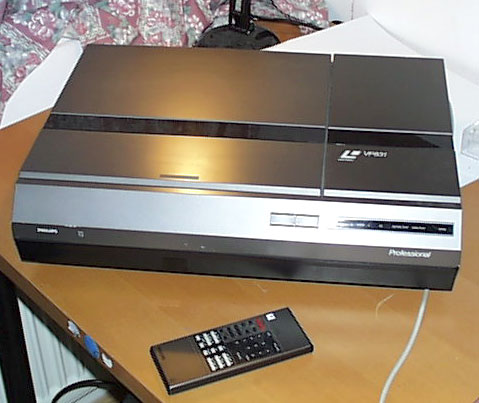

    Name:  vp831.jpg
Views: 165

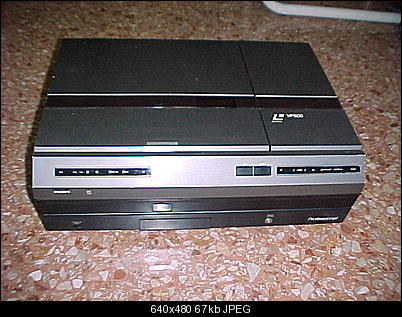

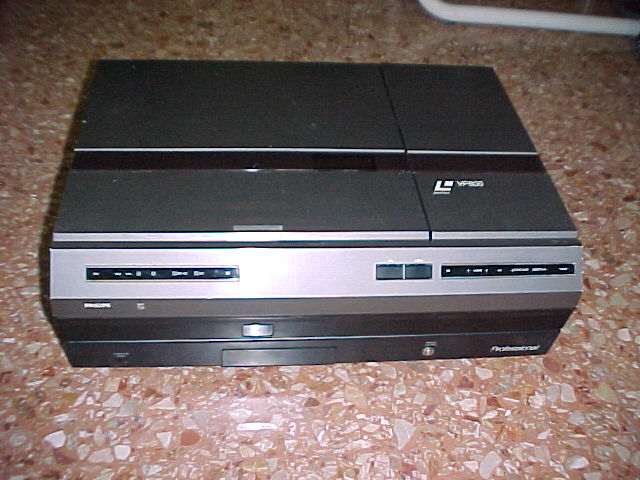

Size:  40.2 KBName:  vp835.jpg
Views: 164
Size:  66.7 KB
    This is nøt å signåture.™
    Quote Quote
  21. Member
    Join Date: Oct 2004
    Location: Freedonia
    Search Comp PM
    My bad. So if you can go back in time AND don't have a movie laserdisc there may be a way to connect a laserdisc to a 1980s era PC and have it read. Although how you get that data into 2014 is an exercise left for the reader.

    By the way Spiny Norman, I found these English subs for Return Of The Musketeers in like 1 minute. Are they right?

    1
    00:00:00,968 --> 00:00:04,288
    The year 1649, a year of the monarchies of Europe
    disorders.

    2
    00:00:04,289 --> 00:00:08,040
    In England, Charles I is overthrown by the people of Oliver Cromwell
    .

    3
    00:00:08,140 --> 00:00:12,140
    In France, King Louis XIV child is
    monarch, but the country is ruled by his mother,


    Whether they're right or wrong, I'm not sending them to you. But if they're right, too bad.
    Quote Quote
  22. Member 2Bdecided's Avatar
    Join Date: Nov 2007
    Location: United Kingdom
    Search Comp PM
    Spiny Norman, that's interesting, thanks.

    FWIW and AFAICT, the video from these devices didn't go through the 1980s computers in the sense of being digitised - the two separate outputs (computer and LD) were mixed/switched in the analogue domain. I think.
    Quote Quote
  23. Member
    Join Date: Oct 2004
    Location: Freedonia
    Search Comp PM
    Originally Posted by 2Bdecided View Post
    FWIW and AFAICT, the video from these devices didn't go through the 1980s computers in the sense of being digitised - the two separate outputs (computer and LD) were mixed/switched in the analogue domain. I think.
    That's not the point, nor was the point to actually provide something useful to Tonnad who asked the question I answered. The point was to prove me wrong. So Whiny Norman 1, Jman98 0. This whole thing is just collateral damage from an argument we got into on another thread. At least I actually tried to provide useful into to Tonnad when all Whiny Norman has done is try to prove me wrong even though such is completely useless to the thread and doesn't help Tonnad in any way. But Whiny Norman won and THAT was the point.
    Quote Quote
  24. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Actually, he didn't win.

    As 2Bdecided just mentioned, both citings from S.N. deal with Computer-controlled LD players. One worked with a modified LD disc where the audio channel was partly replaced (L vs. R) by packets of data. The data included positional info about the media (timestamp addresses, if you will) and database metadata, so that a database search engine residing on the PC (originally microcontroller) talked via RS-232 serial cable to the data readout at the position of the picture/video/audio in question. This was what was known as (and S.N. didn't get this right either, even though it was mentioned in the article he cited): LV-ROM. The other citing didn't even modify the disc, but used a standard CAV LD disc chock full of still pictures (and possibly some additional audio/video) and used the standard Timecode as access points. Regardless, none of these devices and methods used DIGITAL MEDIA anywhere. Digital control/meta data, yes in one instance, but no digital media. LD was, and remains, an ANALOG-ONLY format. As such, it is impossible to import/export/interact with a PC (then, or now). The PCs as cited were just glorified remote controls. And just like 2Bdecided said, they were switched/combined in the analog domain.

    So Tonnad's question "was it analog like VHS"? Yes, better quality for sure, but yes.

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  25. Just go play Dragon's Lair.
    Quote Quote
  26. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Oh, yeah, I remember Dragon's Lair. Thanks for that blast-from-the-past, jagabo.

    Yeah, another computer-controlled LD. Probably one of the best examples.

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  27. vanished El Heggunte's Avatar
    Join Date: Jun 2009
    Location: Misplaced Childhood
    Search Comp PM
    Nah, Mad Dog II was much more fun

    http://en.wikipedia.org/wiki/Mad_Dog_II:_The_Lost_Gold
    Quote Quote
  28. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Hmm... never heard of that one.
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  29. Member 2Bdecided's Avatar
    Join Date: Nov 2007
    Location: United Kingdom
    Search Comp PM
    Originally Posted by Cornucopia View Post
    none of these devices and methods used DIGITAL MEDIA anywhere. Digital control/meta data, yes in one instance, but no digital media. LD was, and remains, an ANALOG-ONLY format. As such, it is impossible to import/export/interact with a PC (then, or now). The PCs as cited were just glorified remote controls. And just like 2Bdecided said, they were switched/combined in the analog domain.
    While the A/V was analogue, I'm fairly sure (but not 100% certain) that actual computer code (i.e. at least parts of the computer program itself) was stored on the LD. My recollection was that the BBC Micro booted from the LD as a drive. I could be wrong. It was a long time ago.

    This is still irrelevant to cpying movie discs, but I find this early multimedia/computer work amazing - not least because (like most school children in the UK) there's something I wrote somewhere on those discs - a feat that seemed far more amazing back then than it did once anyone could put information on the internet.

    Cheers,
    David.
    Quote Quote
  30. Originally Posted by jman98 View Post
    My bad. So if you can go back in time AND don't have a movie laserdisc there may be a way to connect a laserdisc to a 1980s era PC and have it read. Although how you get that data into 2014 is an exercise left for the reader.

    By the way Spiny Norman, I found these English subs for Return Of The Musketeers in like 1 minute. Are they right?

    1
    00:00:00,968 --> 00:00:04,288
    The year 1649, a year of the monarchies of Europe
    disorders.

    2
    00:00:04,289 --> 00:00:08,040
    In England, Charles I is overthrown by the people of Oliver Cromwell
    .

    3
    00:00:08,140 --> 00:00:12,140
    In France, King Louis XIV child is
    monarch, but the country is ruled by his mother,


    Whether they're right or wrong, I'm not sending them to you. But if they're right, too bad.
    Haha, I just can't resist replying to this simply because it's so good. Do you think you're the only one who knows about google? Or do you think this samply (even in just 3 lines) doesn't have "CRAPPY COMPUTER TRANSLATION" written all over it?
    Thank you. You may have been trying to thwart me, but you have actually performed a service: You've made my day. Well done!
    This is nøt å signåture.™
    Quote Quote



Similar Threads
