I have been recording old home movies to my computer using the elgato video capture device. I have also tried with a tv tuner card. Both give the same results.
The issue is that the video capture records a severe jiggle when camera is being moved around a lot. However, it doesn't show up when I play directly to the tv.

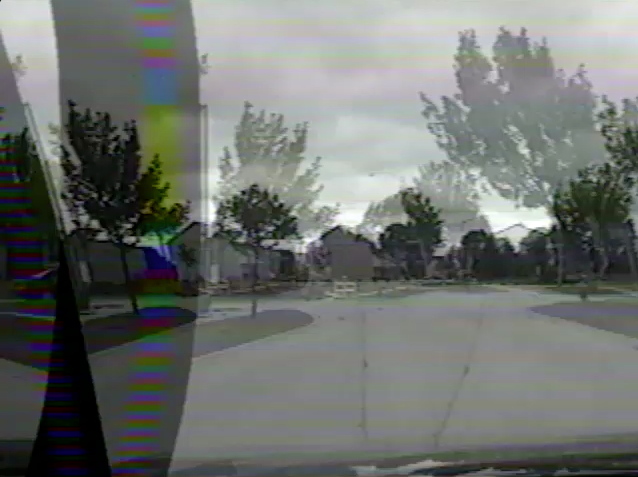

Here is an example: http://www.youtube.com/watch?v=wFAJba3VxFY
Any help would be appreciated. Any software or hardware that can help with this? I tried running it through the tv then to the card, but it didnt work. The jiggle still shows up. I assume the Tv out is just a pass through. Something on the tv is stabilizing it. What can i put between the VCR and the tuner / elgato device to do the same? or is thee some software for this?
Thank in advance
+ Reply to Thread
Results 1 to 10 of 10
Thread: VHS to Digital Artifacts
please provide capture device configuration, please provide video standard used as a source (or in other words, what color standard is on tapes - PAL/SECAM/NTSC and what is configuration for capture)
His YouTube profile states USA, so assume NTSC. At a minimum an external full frame TBC between the VCR and capture device is needed. Video that "looks fine" on a TV, but captures garbled is usually false Macrovision detection.
The sync signals aren't clean enough for your capture card (TVs are much more forgiving). A different VCR or a different caputre device might work better. If not, you need a time base corrector.
I am in the USA (NTSC)
The capture device is this: http://www.elgato.com/elgato/na/mainmenu/products/Video-Capture/product1.en.html
I am capturing using component video (SVideo output if not available on my VRC or old camcorder)
The included capture software has no settings.
I was going to try yet another capture device. Can someone recommend a good external capture device? I already spent 80 on this elgato, and I would hate to have to spend even more to have same result.
I have another TV tuner card I can dig out, but it only accepts a coaxial input. It's a Hauppauge Hvr 1600 I will try with that to see if I get the same result to rule out the capture device as the source of the issue.
If I need to go the TBC route, does anyone have a suggestion on devices?
IMHO before you spend next $ first you should contact with technical support for elgato, this can be problem related to software configuration (like slow/fast clamping settings) - perhaps they can advise something.
I assume you're working in Windows. ? ? ? The image you posted has been cropped.Our inventions are wont to be pretty toys, which distract our attention from serious things. They are but improved means to an unimproved end. -- Henry David Thoreau
