is there any better way to restore the crushed blacks or repair the luminance?
i had tried with gradation curve but didn't get any satisfied results
i got confused whether smoothlevels could help me out in such occations
i'll be really grateful if u can teach me to enhance the color too, actually i'm ripping this movie.....so any type of suggestions are really welcome
thanx in advance
+ Reply to Thread
Results 1 to 30 of 54
There's no detail in the darkest areas to restore.
try something like that:
if you wanna learn use the histogram with its levels mode to begin and also coloryuv(analyze=true) , play with the values for each filter mainly ylevels,and coloryuv and see what happens
ColorYUV and/or Y/Levels won't help that much. You'd need something like gradation curves in RGB to severely limit the range of brightening, otherwise the night scene will start looking like daylight. I agree with jagabo, there's scant detail "down there" anyway, if anything.
The images below have the black letterboxing clipped off to aid corrections and histogram use. I don't know if anyone noticed, but (1) the darks are green, (2) the highlights on the seat's headrest are blown away (clipped). Original frame 362:
With a little ColorYUV: Raised gamma_y and gain_y by 15, then used gradation curves to raise the darkest areas by about 5 RGB points between RGB 20 and RGB 50, plus took the green cast out of the shadows. The darkest shadows are about NTSC RGB16 or so, the headrest clipping was lowered a bit but it didn't help-, so I it remains clipped.
All one has to do is raise the darkest colors just a tad to see that (a) no more detail, and (b) nothing but noise and color corruption below the darkest "blacks":
Crushing doesn't just wipe out detail. It corrupts everything below the crush point, and does the same thing to clipped highlights. By the way, opening a VOB or MPEG directly into VirtualDub often produces ugly results. Below is what the video looks like if opened directly in VirtualDub without the help of Avidynth:
If opened correctly in VirtualDub, the darkest blacks are right at RGB16 -- although everything is pretty much smashed against the left RGB16 border, indicating some level of dark crush in production. Although the original does look a bit dark, it seems to be that way purposely. A bit overdone, though. IMHO.
Last edited by sanlyn; 5th Nov 2012 at 17:29. Reason: the usual stream of typos!Our inventions are wont to be pretty toys, which distract our attention from serious things. They are but improved means to an unimproved end. -- Henry David Thoreau
There's a terrific amount of noise in the dark areas (not unusual with crushed darks). So here's another "learning lesson" video. Still trying to figure out if it's telecined, blended, interlaced, or what. Any take on the noise and combing is welcome. One of these days I'm going to get all this down pat -- it's a tough row to hoe, this Avisynth. But it's the only way.Our inventions are wont to be pretty toys, which distract our attention from serious things. They are but improved means to an unimproved end. -- Henry David Thoreau
Yes, it looks like a field blended frame rate conversion. Yadif(mode=1, order=0).SRestore(frate=25).
Ah, yes! Srestore! Thanks, jagabo, about time I learned to recognize these configurations and handle them. I think QTGMC instead of yadif, maybe some of that noise will go away. Will try both.
After playing tricks with hurricane Sandy, looks like I'll be outta power and internet again with a Nor'Easter tomorrow. Just when I was getting back into the game!Our inventions are wont to be pretty toys, which distract our attention from serious things. They are but improved means to an unimproved end. -- Henry David Thoreau
thanx to all for ur efforts
actually i selected the darkest portion of the movie
throughout the film i can see lots of dark and lack of details, i just want to know if the other bright or dark parts (which are not so dark) can be improvised or not
i know the source is one of the worsts, but there should be some areas which can be improvised by some extent, like sharpness or color or details

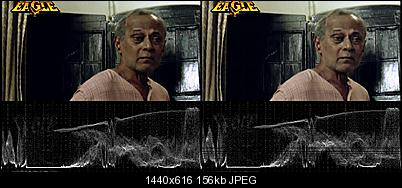

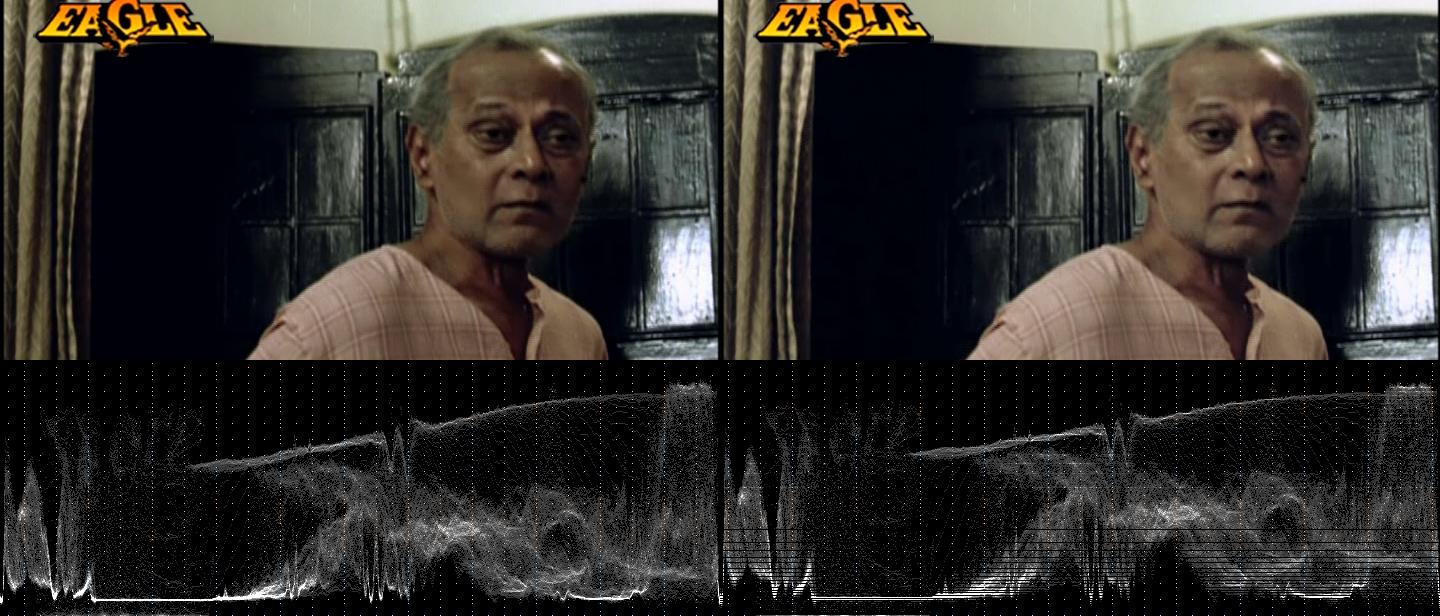

Of course you can lighten up some of the shadow detail with a gamma and offset adjustment of the luma channel.
You may have to pump the saturation up a bit too (gamma decreases saturation). And the colors need some other adjustments.
If you're going to attempt this all in VirtualDub apply the Brightness/Contrast filter first. It can work in YUV, letting you bring out a little detail in the Y<16 areas (the source extends down to about Y=14).
thanx but i couldn't understand the graph like image
i think its histogram! how can i use i it?
in the above exmple how could u know from the graph that "yeah!!! this seems legit!"?
and more thing..." do u think, that seesaw can help me out from this type of source? i've heard that seesaw only works with good source
i've made a script (off course with ur help) and got this result
do u think its useless or other filters could give me better results in terms of sharpness/details/noise removal/picture enhancement?
backward_vec2 = last.MVAnalyse(isb = true, delta = 2, pel = 2, overlap=4, sharp=1, idx = 1)
backward_vec1 = last.MVAnalyse(isb = true, delta = 1, pel = 2, overlap=4, sharp=1, idx = 1)
forward_vec1 = last.MVAnalyse(isb = false, delta = 1, pel = 2, overlap=4, sharp=1, idx = 1)
forward_vec2 = last.MVAnalyse(isb = false, delta = 2, pel = 2, overlap=4, sharp=1, idx = 1)
b = a.FFT3DFilter(sigma=3, sharpen=1.0)
SeeSaw(a,b, NRlimit=3, NRlimit2=5,Sstr=2, Slimit=7, bias=60, Szp=16, sootheT=40)
Last edited by baunduley; 10th Dec 2012 at 12:50.
I'm playing with the two samples today while I can, before another storm hits the Long Island shore. Will post some levels and color ideas later. The main point is that the video should be opened using Avisynth and DGIndex in order to fix basic black levels and contrast problems in YUV before going to RGB for more detail. Opening the clips directly in VirtualDub would make matters worse. I'm opening the files this way to get the video into RGB properly, first using DGINdex to make a d2v project and then running an avs script in VirtualDub to protect black levels and highlight clipping (change the path statements in this sample script to specify the path and name of the clip to be opened):
# Use ColoryuV, etc., to correct levels in YUV
# (The statement below is a sample fix)
# ***** do some necessary YUV processing here . . . .
# ******* convert to RGB for VirtualDub work *****
# **** (change the "interlace" parameter if needed) *****
You must learn to use histograms and pixel samplers to see what's happening with RGB levels and colors. There are histograms for YUV, but because much of the work will be done in VirtualDub (RGB) I'm using RGB histograms to view the results of colorspace conversions:
Image and RGB histogram, VOB opened directly in VirtualDub without proper RGB conversion. Luma and chroma crushed against left-hand side of histogram. Similar cruishing and clipping would occur when converting to color system on TV:
Image histogram resulting from sample Avisynth script. Levels are corrected for NTSC 16-235. There is more work to be done in VirtualDub (letterbox borders are red, colors and low-detail gamma are off) but this would be a starting point:
Back later. Gotta get ready for another storm.
RGB histogram for VirtualDub: http://trevlac.us/colorCorrection/clrtools.vdf
The web page is here: http://trevlac.us/colorCorrection/colorTools.html
The original Doom9 post is here: http://forum.doom9.org/showthread.php?p=458048#post458048
The best way to learn to use RGB histograms and other types of 'scopes is Google for free internet tutorials for graphics apps like Photoshop. These sites are for digital cameras and still photo, but the color and black/white level principles are the same for video. Here is one such tutorial, with samples of crushed and clipped luma and color values:
Part 1: http://www.cambridgeincolour.com/tutorials/histograms1.htm
Part 2: http://www.cambridgeincolour.com/tutorials/histograms2.htm
Avisynth has several histograms for use in YUV. IMO it's easier for newcomers to learn RGB first, but many use YUV only. Both color systems have their pros and cons. I'm using RGB histograms here because I feel some of the color problems are best fixed in RGB. You'll find plenty of debate on using various methods.
You can't trust eyeball alone to visualize problems and solutions. Hopefully you're working with a properly calibrated monitor. In any case, most people would use some sort of pixel sampler to read RGB pixel values in apps like VirtualDub. One such free tool for the desktop is here: http://www.netreach.net/~gavin/gavsfreeware/files/csamp21.zip .
The very simple and basic CSamp web page, for what it's worth: http://www.netreach.net/~gavin/gavsfreeware/csamp.htm
Your latest samples are improvements, with a few glitches -- but nice work. I have to beg your indulgence, we are just now recovering from hurricane Sandy here and another storm is its way tonight and tomorrow. I'm certain other members are tracking this thread and will chime in.
In the image I posted earlier I use VideoScope(), not Histogram(). VideoScope doesn't mark the "illegal" regions of Y<16, and Y>235.
jagabo, I used yadif and QTGMC both (QTGMC really helped with the dark-level noise!), but Srestore is giving me jerky playback at 23.97 and 25 fps. I think Srestore's parameters are giving me a problem here. The video appears to be field-blended as well as telecined, and the effect in some areas looks like dropped frames. I'm on doom9 now looking for more insight into SRestore.
SRestore() is never perfect. Of course, the clips don't have a lot of motion, and the motion they do have isn't nice and linear where's it's easiest to see jerks, but they look pretty smooth here.
OK, I'll keep working with it. Looks like one of those frame-by-frame projects in certain spots. Moving on! And thanks.
actually, i couldn't get u first
i can't force u in such situations.......
inspite of ur condition what u did is just...........
please take ur time and pardon me for my ignorance
Ignorance? Some members are ahead of others, but we're all learning here. Especially me!
So here's a first effort on the dark video. Far from perfect (so whaddya want from a re-encode of a low-bitrate original?). Could fiddle and tweak forever, but this is a start. Removed many spots and streaks, somer bad frames around frame 220 or so. Couldn't get all the spots, sorry. You can cleqarly see the effects of low bitrate and crushed details in the darkest areas, and some of the noise in large flat areas is still a problem; will have to learn more about the dither plugin to work with that. There's some odd frame movement and object wiggling in frames 213-220 or so.
Can't get the whole script together right away. It's a mess right now. But in summary:
Avisynth filters: QTGMC, Srestore, RemoveSpots, gradfun2DBmod, AddGrainC, TTempSmooth, FreezeFrame, BadFrames, ReplaceFramesMC, ColorYUV.
VirtualDub: ColorMill, GradationCurves (2 copies -- 1 primary, 1 secondary), NeatVideo (25% power).
I played with DeBlock and MDegrain, but ran out of time. Posted is a 24fps MPEG2 and the AVI (lagarith YV12). The AVI is a free download at 4shared (78 MB) for those who want to play with encoders: http://dc613.4shared.com/download/Mobe1mZJ/VTS_01_darkYV12.avi . The attached MPEG is much smaller. I apologize for not having had time yet to learn to make mkv's.
i don't get it though...why is there a logo on a commercial dvd to begin with ?
unless this was actually a recorded version from a dvd recorder, perhaps ?
both (vob) videos seem fine to me as long as you open inside dgindex and select menu\video\yuv->rgb\tv scale.
the colors (levels) is just the way the studio processed it, whether correct or not--this is, assuming its a commercial dvd release. if its not, (is a dvd recorder version instead) then its a content provider issue plus and/or user equipment limitation.
Photoshop and AfterEffects BT601 display tells me that the car seat will play as "black" on TV (at about RGB 6 to 8, which TV can't display anyway) one should see very little difference between the black seat backs and the black borders. For PC use, why limit to y'=16? Why not y'=0 for PC?.
There's a little detail (and I mean a little) in the wall of the car behind the talking guy's head. It's a seat belt anchor, but it's mostly blocky and grimy from being crushed. There's also some detail behind the lower part of the head rest. All that would disappear if any darker. It can barely be seen on TV, but anything darker would just be black blobs. Since TV doesn't display in YUV (mine don't, anyway), I set it up for TV. For PC, make the darks darker.
The MKV looked pretty good to me, but the blacks bothered me. They aren't black. They're blue. I guess it depends on what one likes. I don't know, I haven't had a chance to work with that yet.
Another note: while the guy is talking toward the camera in the car scene, there's a flash of lightning. The scene is lighted (supposedly) by interior car lights, which are dim, warm lights. When the lightning goes off, what would happen if the scene was made artificially bright? It would have been nice if the processing lab hadn't smashed darks so much, one could get a lot more out of the lower ranges. But there's not enough data surviving down there to make it look real.
Last edited by sanlyn; 7th Nov 2012 at 07:34.
will check myself once u manage to give the whole script/settings........nice work by the way
but i was hoping if the washed out blacks could be managed
smoothlevels can help neway? or contrast, or it'll bring us where we started?
(my english is not good neway)
I suspect the video was converted from PAL to NTSC without accounting for North American NTSC setup at the analog stage. Hence all the darks were crushed.
i'm not so expert so that i can even understand what u've instructed.
can u please show me the path briefly..........or it was solely for sanlyn, for learning purpose??
And, yeah, I see TVs all the time running in volcano mode with reds you can see a block away. It's impossible to compensate for that, I just try to target the standards.
Be sure to view the image full size.

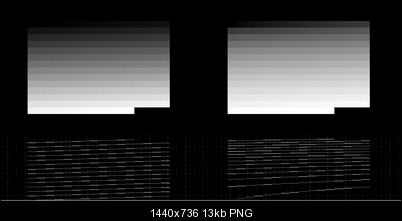

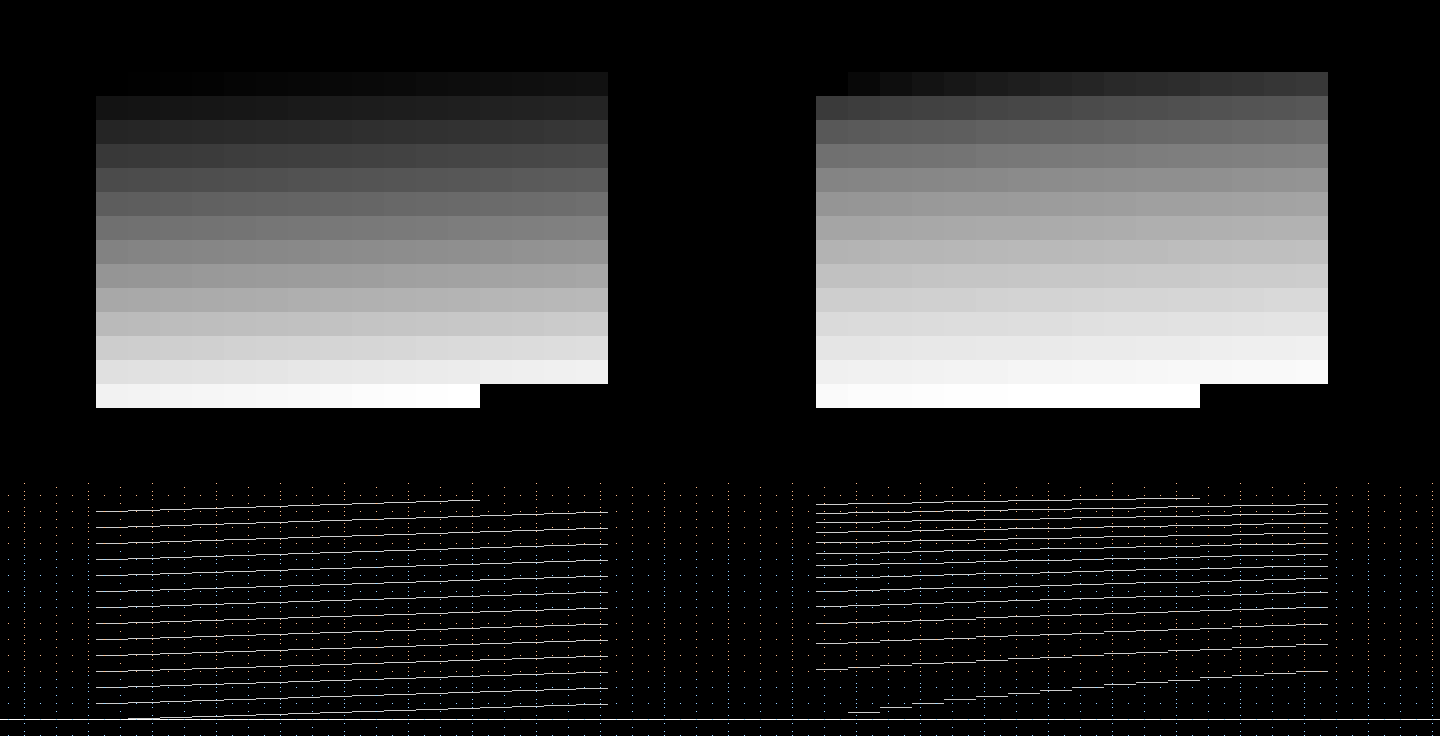

On the left is a chart of all 220 shades of grey from Y=16 to Y=235. If you look closely you should be able to see 16 different brightnesses from left to right across each row. These have already been contrast stretched to RGB=0 to RGB=255 as is usually done when converting YUV to RGB for display on an RGB device. The waveform monitor graph below shows the brightness increasing by 1 unit at each horizontal block.
On the right is the result of ColorYUV(gamma_y=128, off_y=-12), a fairly extreme gamma change. As you can see the overall range of britnesses is the same. But the difference between consecutive dark shades has increased. At the lighter end of the spectrum you can see that the difference between consecutive shades is reduced. For example, the top line of the left graph shows 12 different intensities whereas the top line of the right graph shows only 7 different intensities. So the result of the increasing the gamma is to bring out detail in the darker areas at the expense of losing detail in the lighter areas.
By the way, you can get a similar effect by using the gamma control in VirtualDub's levels filter. But the Levels feature will not let you bring out details in portions of the picture below Y=16. Because VirtualDub crushes all darks below Y=16 to the same shade of RGB, 0. Your video didn't have much below that level though.
Last edited by jagabo; 7th Nov 2012 at 09:10.
