    Hi everyone.

    I'm learning the program and my first goal is to learn how to output files for upload to YouTube.

    My camera is a Canon Vixia HF200.
    Here is the video I am working with: https://plus.google.com/115056313943520401920/posts/4WPDi7mMqPA

    My goal is to duplicate what Google does/did with Adobe Premiere Pro CS 5.5.

    The input video has the following stats according to mediainfo...

    Code:
    General
    ID/String                        : 0 (0x0)
    CompleteName                     : E:\My Original Media\MXP Vixia HF200 Reference.MTS
    Format                           : BDAV
    Format/Info                      : Blu-ray Video
    FileSize/String                  : 174 MiB
    Duration/String                  : 1mn 0s
    OverallBitRate_Mode/String       : Variable
    OverallBitRate/String            : 24.0 Mbps
    OverallBitRate_Maximum/String    : 24.0 Mbps

    Video
    ID/String                        : 4113 (0x1011)
    MenuID/String                    : 1 (0x1)
    Format                           : AVC
    Format/Info                      : Advanced Video Codec
    Format_Profile                   : High@L4.0
    Format_Settings_CABAC/String     : Yes
    Format_Settings_RefFrames/String : 2 frames
    Format_Settings_GOP              : M=3, N=15
    CodecID                          : 27
    Duration/String                  : 1mn 0s
    BitRate_Mode/String              : Variable
    BitRate/String                   : 22.7 Mbps
    Width/String                     : 1 920 pixels
    Height/String                    : 1 080 pixels
    DisplayAspectRatio/String        : 16:9
    FrameRate/String                 : 29.970 fps
    ColorSpace                       : YUV
    ChromaSubsampling                : 4:2:0
    BitDepth/String                  : 8 bits
    ScanType/String                  : Interlaced
    ScanOrder/String                 : Top Field First
    Bits-(Pixel*Frame)               : 0.365
    StreamSize/String                : 164 MiB (94%)

    Audio
    ID/String                        : 4352 (0x1100)
    MenuID/String                    : 1 (0x1)
    Format                           : AC-3
    Format/Info                      : Audio Coding 3
    Format_Settings_ModeExtension    : CM (complete main)
    Format_Settings_Endianness       : Big
    CodecID                          : 129
    Duration/String                  : 1mn 0s
    BitRate_Mode/String              : Constant
    BitRate/String                   : 256 Kbps
    Channel(s)/String                : 2 channels
    ChannelPositions                 : Front: L R
    SamplingRate/String              : 48.0 KHz
    BitDepth/String                  : 16 bits
    Compression_Mode/String          : Lossy
    Video_Delay/String               : -67ms
    StreamSize/String                : 1.85 MiB (1%)
    Into a video with these stats...

    Code:
    General
    Complete name                            : E:\My Original Media\MXP%20Vixia%20HF200%20Reference.mp4
    Format                                   : MPEG-4
    Format profile                           : Base Media / Version 2
    Codec ID                                 : mp42
    File size                                : 44.4 MiB
    Duration                                 : 1mn 0s
    Overall bit rate mode                    : Variable
    Overall bit rate                         : 6 156 Kbps
    Encoded date                             : UTC 2012-06-26 14:08:52
    Tagged date                              : UTC 2012-06-26 14:08:52
    gsst                                     : 0
    gstd                                     : 60696
    gssd                                     : B4A7DD4A4HH1340806636487234
    gshh                                     : o-o.preferred.cbf01t06.v4.cache6.c.youtube.com

    Video
    ID                                       : 1
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L4.0
    Format settings, CABAC                   : Yes
    Format settings, ReFrames                : 1 frame
    Format settings, GOP                     : M=1, N=60
    Codec ID                                 : avc1
    Codec ID/Info                            : Advanced Video Coding
    Duration                                 : 1mn 0s
    Bit rate                                 : 6 002 Kbps
    Maximum bit rate                         : 9 231 Kbps
    Width                                    : 1 920 pixels
    Height                                   : 1 080 pixels
    Display aspect ratio                     : 16:9
    Frame rate mode                          : Constant
    Frame rate                               : 29.970 fps
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : Progressive
    Bits/(Pixel*Frame)                       : 0.097
    Stream size                              : 43.3 MiB (97%)
    Tagged date                              : UTC 2012-06-26 14:08:53

    Audio
    ID                                       : 2
    Format                                   : AAC
    Format/Info                              : Advanced Audio Codec
    Format profile                           : LC
    Codec ID                                 : 40
    Duration                                 : 1mn 0s
    Bit rate mode                            : Variable
    Bit rate                                 : 152 Kbps
    Maximum bit rate                         : 161 Kbps
    Channel(s)                               : 2 channels
    Channel positions                        : Front: L R
    Sampling rate                            : 44.1 KHz
    Compression mode                         : Lossy
    Stream size                              : 1.10 MiB (2%)
    Title                                    : IsoMedia File Produced by Google, 5-11-2011
    Encoded date                             : UTC 2012-06-26 14:08:53
    Tagged date                              : UTC 2012-06-26 14:08:53

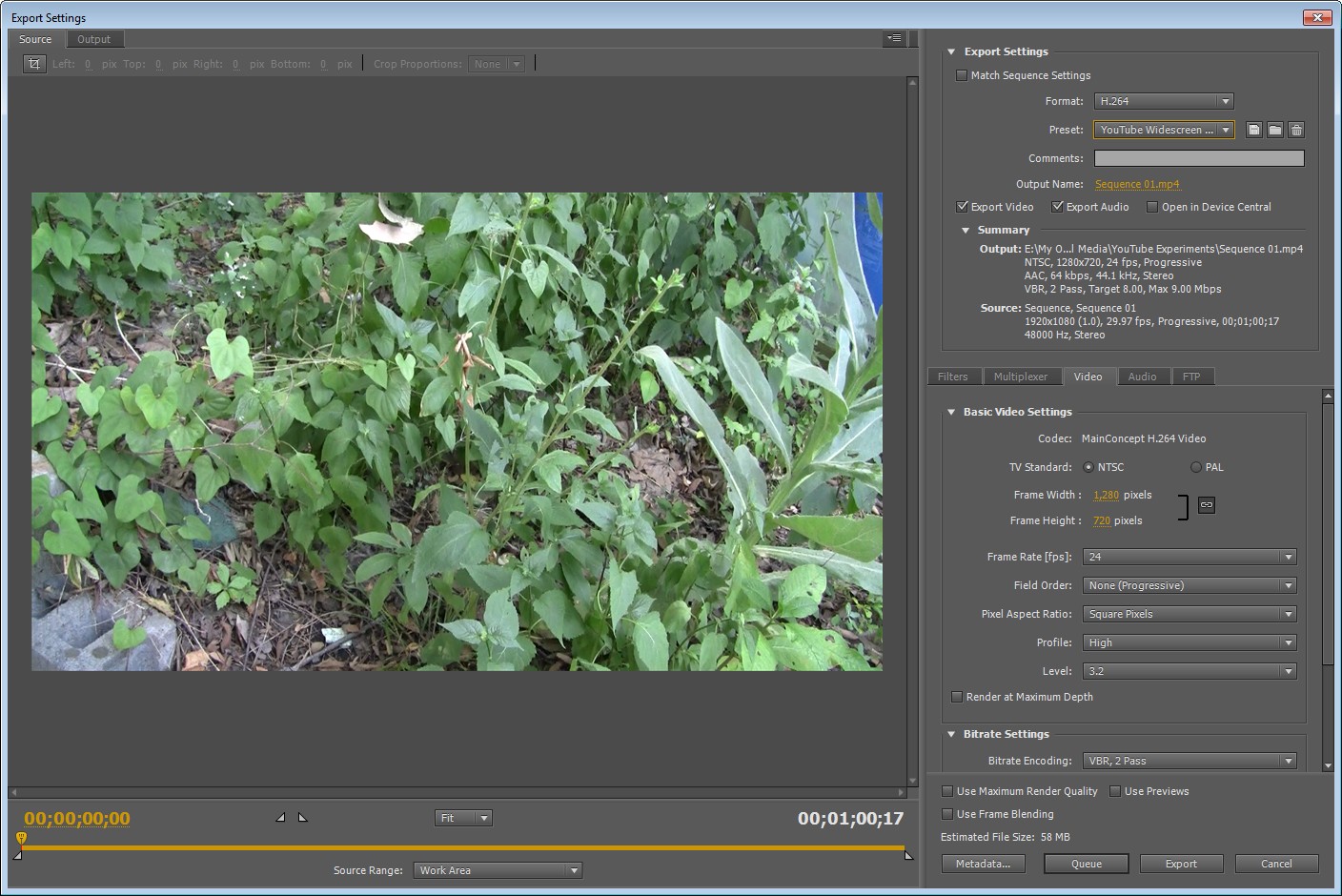

    The best I can do currently is upon export choosing the "H.264" "Format" and picking the "YouTube Widescreen HD" preset.

    Click image for larger version

Name:	2012-06-27_222750.jpg
Views:	2173
Size:	305.5 KB
ID:	12891

    The stats of that resulting file are as follows. You'll notice it is both larger in file size and smaller in resolution. (APPCS5.5 won't permit me to set it high enough.) This is insufficient.

    Code:
    General
    Complete name                            : E:\My Original Media\YouTube Experiments\MXP Vixia HF200 Reference(Adobe-H264-YouTubeHD).mp4
    Format                                   : MPEG-4
    Format profile                           : Base Media / Version 2
    Codec ID                                 : mp42
    File size                                : 58.2 MiB
    Duration                                 : 1mn 0s
    Overall bit rate mode                    : Variable
    Overall bit rate                         : 8 076 Kbps
    Encoded date                             : UTC 2012-06-27 15:13:32
    Tagged date                              : UTC 2012-06-27 15:13:32
    ęTIM                                     : 00:00:00:00
    ęTSC                                     : 24
    ęTSZ                                     : 1

    Video
    ID                                       : 1
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L3.2
    Format settings, CABAC                   : Yes
    Format settings, ReFrames                : 3 frames
    Codec ID                                 : avc1
    Codec ID/Info                            : Advanced Video Coding
    Duration                                 : 1mn 0s
    Source duration                          : 1mn 0s
    Bit rate                                 : 7 991 Kbps
    Width                                    : 1 280 pixels
    Height                                   : 720 pixels
    Display aspect ratio                     : 16:9
    Frame rate mode                          : Constant
    Frame rate                               : 24.000 fps
    Standard                                 : NTSC
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : Progressive
    Bits/(Pixel*Frame)                       : 0.361
    Stream size                              : 57.6 MiB (99%)
    Source stream size                       : 57.7 MiB (99%)
    Language                                 : English
    Encoded date                             : UTC 2012-06-27 15:13:32
    Tagged date                              : UTC 2012-06-27 15:13:32
    mdhd_Duration                            : 60481
    Color primaries                          : BT.709-5, BT.1361, IEC 61966-2-4, SMPTE RP177
    Transfer characteristics                 : BT.709-5, BT.1361
    Matrix coefficients                      : BT.709-5, BT.1361, IEC 61966-2-4 709, SMPTE RP177

    Audio
    ID                                       : 2
    Format                                   : AAC
    Format/Info                              : Advanced Audio Codec
    Format profile                           : LC
    Codec ID                                 : 40
    Duration                                 : 1mn 0s
    Source duration                          : 1mn 0s
    Bit rate mode                            : Variable
    Bit rate                                 : 61.6 Kbps
    Maximum bit rate                         : 89.6 Kbps
    Channel(s)                               : 2 channels
    Channel positions                        : Front: L R
    Sampling rate                            : 44.1 KHz
    Compression mode                         : Lossy
    Stream size                              : 455 KiB (1%)
    Source stream size                       : 456 KiB (1%)
    Language                                 : English
    Encoded date                             : UTC 2012-06-27 15:13:32
    Tagged date                              : UTC 2012-06-27 15:13:32
    Thank you for your time and attention.
    Quote Quote
  2. aBigMeanie aedipuss's Avatar
    Join Date: Oct 2005
    Location: 666th portal
    Search Comp PM

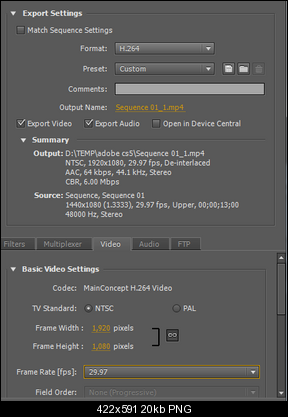

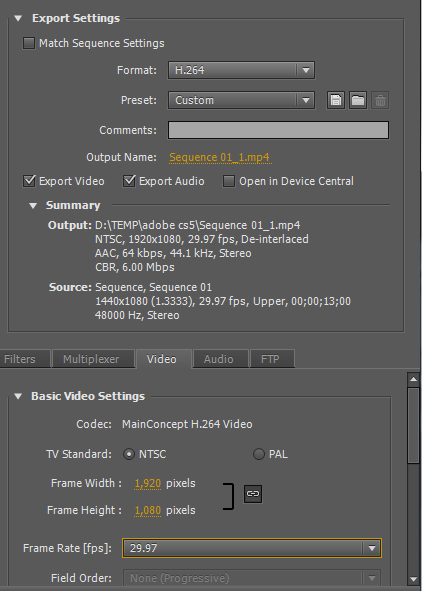

    if all you're looking for is 1080p30 h264 there are many encoding programs you could use. start with vidcoder, as it's an easy to use handbrake frontend and set you output to 1920x1080 @ an average bitrate of 6mbps. but premiere pro's encoder is quite capable of the same thing.
    Name:  2012-06-28_015238.png
Views: 1779
Size:  20.4 KB
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  3. Member Innomen's Avatar
    Join Date: Oct 2010
    Location: Ashland
    Search PM
    Edit: Nevermind, I spoke too soon, that did it. Thank you!
    -----

    Thank you for answering.

    When I try to force the file size to the appropriate resolution I get an error.

    Name:  2012-06-28_015910.jpg
Views: 1773
Size:  16.2 KB

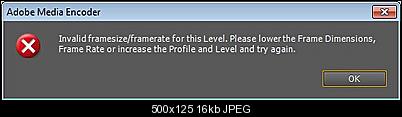

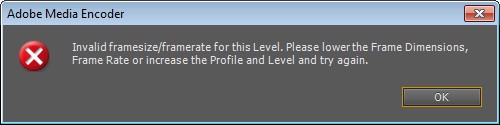

    "Invalid framesize/framerate for this Level. Please lower the Frame Dimensions, Frame Rate or increase the Profile and Level and try again."
    Googling that error message took me here:
    http://forums.adobe.com/message/4411645

    The solution is apparently to:
    Open up the output module settings and hit the options button, then dial in suitable options in the H.264 exporter. Arbitrary resolutions such as yours require Level 5 or 5.1.
    I could not find "output module settings" but in hitting all the buttons trying to find it I hit queue and the Adobe media encoder launched. Still could not find the proper dialog. Same error was given.

    (Simply starting with a different preset allowed me to solve the problem.)
    Last edited by Innomen; 28th Jun 2012 at 01:25.
