  1. Hi

    I have read many posts about adding subs to 3d films, i believe i'm doing right but want to confirm.

    I have an .MKV file and an .SRT file, I can play the film in 3D and it places the subs from the .SRT in fine but they appear hanging off the right hand side of the screen and appearing on the left hand side of the screen. I have gone into the .srt file and put lots of spaces in front of each line of text and can move the subs across to the centre of the screen.

    I have tried mkvmerge and it puts the subs in but they are over to the left, i follow the instructions which isnt exactly hard, click "add" then click "add" then click muxing, all reports back fine.

    The subs are also a bit wierd to look at I suppose its the 2d subs over the 3d image thats doing it.

    Is the only benefit of running it through mkvmerge is that the subs are in the .mkv file? and not a seperate .srt file

    Ultimately, I would like to see 3d subs in the centre of the screen, do i take it that this is not achievable?

    Thanks

    M9G
    Quote Quote
  2. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    It is achievable, just not in any automated way. (Assuming this is a SbS Mkv) you should look at what I suggested to do manually in THIS post...

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  3. Hi thanks, yeah SBS and was reading that thread earlier but got a little confused as there is so much back and forth of trying stuff, I have created files in 3dsubtitler fine and when played back through VLC yep i'm getting subs on both sides, i ran it through mkvmerge but when the film plays on my tv, its trying to put the subs up but they are not letters just a mess of lines. I even tried the .mkv with the 3dsubtitler files through a media player and it wont even play them. If all fails then i know they work with the .srt file just need to get the spacing right on each line of text, being 2d subs they are not nice to look at in 3d but can read them.

    I'm trying this route below at the mo but the last part of it takes hours, approx 8 for the size of the .mkv i'm doing.

    How to make 3d Subtitle to work on all equipments ( 3d TV, PC, ...)
    Step 1:
    Use 3D Subtitler
    Create 3d subtitle *.sup file
    Duration ~ 5 minutes (depends cpu)

    Step 2:
    USE Tsmuxer
    Transform movie *.mkv to *.ts
    Duration ~ 15 minutes (depends cpu)

    Step 3:
    USE RipBot264
    Transform movie *.ts to *.mkv again
    Now in option use "Permanent subtitle" and use *.sup file from first step.
    CQ = 18 (Best quality)
    Duration ~ 4 hours (depends cpu)

    The final result is 1 file movie .mkv with 3d permanent subtitle who works on every equipment
    Quote Quote
  4. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Oh, so you're buning in the subtitle. Well, you lose some visual quality, but it will at least overcome the subs support issue.

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  5. I'm only burning it in as it was in the instructions, not bothered if its in or not I just want them to appear in the middle of the screen and be able to read them
    Quote Quote
  6. I have tried output in 3dsubtitler to vobsub and then tried using subResync to convert back to .srt but when i run the conversion it asks me to identify each letter and to type in what its ment to be but i cant recognise what the images are

    I have tried putting the .mkv with .sub/.idx/.xml onto a flash drive and the film freezes so that doesnt work.
    Quote Quote
  7. Well the process finished, the last bit with ripbot264 took 8 hours, I play it with vlc and I'm getting the sbs pictures and each side has the subtitles in but when played back on 3dtv the pictures fine but yet again the subs go off the right side of the screen and back on the left side and the letters in the words arent there just alot of little messy lines.

    Thanks for your input scott, looks like the route of manually doubling up on every sub and getting spacing right, for obvious reasons wanted to avoid this, i'll let you know how i get on

    Before I start, I can if i get the spacing right get the .srt subs to appear in 2d on the screen when played in 3d, not pleasent on the eyes but readable, will doubling up make any improvement?
    Last edited by mattyninegrand; 31st May 2012 at 02:36.
    Quote Quote
  8. Right well i tried this ..... http://www.networkedmediatank.com/showthread.php?tid=47904

    When the subs appear on the screen they look really good and no effect on the eyes. Only problem is like i've been getting with other conversions is in 2d they appear in both SBS videos when played on my pc and when i play on the tv in 2d i get the SBS video and the subs are joined and in the middle so look fine but when switch to 3d they do appear as one which is good but they start on the right side of the screen and go off the screen and wrap around and the tail end of the subs appears on the left side of the screen.

    I have spent hours and hours on this just for a few nuvi speaking subs on avatar.
    Quote Quote
  9. So now i have tried entering the text twice in the srt file as recommended and when played in 3D the subs appear twice, one on left and one on right - ggrrrrrrr
    Quote Quote
  10. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    regarding the "How to make 3d Subtitle to work on all equipments ( 3d TV, PC, ...)" message by mattyninegrand

    see below!
    Quote Quote
  11. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    regarding the "How to make 3d Subtitle to work on all equipments ( 3d TV, PC, ...)" message by mattyninegrand

    It is a long time I have troubles in making 3d movies with hard-wired subtitles.
    I read your post and tried it. It works fine with one "tiny" -unexplained to me- problem.
    when play the mkv with external subtitles on VLC or GOM player, all seems fine.
    But when I hardwired them to the mkv, it seems that while the audio is synchronised with the subtitles, they both are gradually desynchronised with the images. The same phenomenon exists when I play it on my Panasonic TX42 plasma tv set.
    I have an Acer Aspire 5738G with Windows 7 and 4GB Ram which I think is enough for such work loads and the movies play without jumping bugs! Has anybody have a clue? I have spend hundreds of hours trying to find a viable solution.
    thanks
    mike
    Last edited by adultmike; 29th Oct 2012 at 12:24.
    Quote Quote
  12. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Yes, I have a clue. Many, in fact. But you folks (those needing 3D + non-BD3D-backup+ 3D subtitles onto 3DTV) don't seem to want to hear them.

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  13. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    Thank you Scott. I would like to hear some of your clues anmd possible solutions regarding the use of RipBot264 in attaching permanent subtitles on .mkv container. There are so many other users having this problem.
    Quote Quote
  14. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    "Permanent" subtitles are only truly permanent when they are pixels of the video. All other variations aren't really permanent at all - they are either muxed into the container or sitting side-by-side with the container in a folder.
    Which one are YOU referring to?

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  15. Member netmask56's Avatar
    Join Date: Sep 2005
    Location: Sydney, Australia
    Search Comp PM
    Have a look at this post http://www.networkedmediatank.com/showthread.php?tid=47904

    [TOOL] Convert .srt to 3D Half-SBS/TAB compatible .ass [UPDATED 30/09/2012] srt23Dass

    This tool will convert a standard .srt subtitle file into a 3D Half-SBS or Half-TAB compatible .ass subtitle file. This is only useful for .mkv or .mk3d movie files.

    For the converted subtitles to work, the player must understand and obey POS tags in the .ass file and use internal fonts in .mkv files. This is the case with the Popcorn Hour 200 and 300 series of players. Most PC software players will also work, but many hardware players and most TVs won’t. Although many players claim to support the .ass subtitle format, they will not understand most of the special tags that are part of the format. If that is your case, then you’re out of luck….

    Just for reference, this is what you should see on your TV, depending on the movie type and TV mode:

    Works quite well as long as your media player does ass. You may have to reduce the font size depending on your TV. I have a Samsung 65" ES 8000 and had to reduce the font size a tad
    TheVoiceIsAnotherPerson ~ BeyonWiz DP-P1 and T3 PVR's ~ Popcorn C200 ~ Samsung ES8000 65" LED TV ~ Windows 7 ~ Yamaha RX-A1030 http://www.openwiz.org/wiki/ProjectX
    Quote Quote
  16. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    BTW, @netmask56,
    Looking at the link, that method seems flawed in that Half T/B is inverted. According to most industry specs, the Top view should be the LEFT view, not the RIGHT. So for things to work correctly, you will ALWAYS need to use Negative Depth for it to work correctly. Otherwise, it looks like a good tool (stick that one in my arsenal)!

    @adultmike, Using this tool may or may not work with your system depending upon whether your system likes muxed subtitles, accepts .ass format text subs, etc. Since it is not clear what your files actually contain, nor the process you used to get them there, nor the system your are attempting to play them from (and to...), there's no realistic way to pin this down from a troubleshooting perspective. When you and mattyninegrand are ready to give up the full info, maybe we can finally get to the bottom of this. Otherwise, I have other things to do...

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  17. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    Hi Scott,

    I use this way to do the job.
    Step 1:
    Use 3D Subtitler
    Create 3d subtitle *.sup file
    Duration ~ 5 minutes (depends cpu)

    Step 2:
    USE Tsmuxer
    Transform movie *.mkv to *.ts
    Duration ~ 15 minutes (depends cpu)

    Step 3:
    USE RipBot264
    Transform movie *.ts to *.mkv again
    Now in option use "Permanent subtitle" and use *.sup file from first step.
    CQ = 18 (Best quality)
    Duration ~ 4 hours (depends cpu)

    At the end, the subs are really become hardwired to the mkv file and can view them on any player or TVset. The problem is that both audio and subs are desynchronized with the video (audio is synchronised with the subs, but both not with the video). The strange thing is that when I played the source mkv movie with VLC player using the same external subtitles all things works fine. I can' find why I got this problem. My first hypothesis was that something happened wrong with the framerate. Using mkvinfo I found that the framerate was not defined but loading the source mkv in Ripbot264, I found that using 25 frames per second the calculated video duration matches to the actual video duration.
    regards
    mike
    Quote Quote
  18. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    Scott, here is more info about the source

    Format : Matroska
    Format version : Version 1
    File size : 1.50 GiB
    Duration : 1h 27mn
    Overall bit rate : 2 461 Kbps
    Encoded date : UTC 2012-08-24 11:48:35
    Writing application : MKVMaker.exe
    Writing library : Haali DirectShow Matroska Muxer 1.11.288.0

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4.0
    Format settings, CABAC : Yes
    Format settings, ReFrames : 5 frames
    Codec ID : V_MPEG4/ISO/AVC
    Duration : 1h 27mn
    Nominal bit rate : 2 362 Kbps
    Width : 1 920 pixels
    Height : 800 pixels
    Display aspect ratio : 2.40:1
    Frame rate mode : Constant
    Frame rate : 23.962 fps
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.064
    Writing library : x264 core 120 r2120 0c7dab9
    Encoding settings : cabac=1 / ref=5 / deblock=1:0:0 / analyse=0x3:0x133 / me=umh / subme=9 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=2 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=6 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=0 / b_adapt=2 / b_bias=0 / direct=3 / weightb=1 / open_gop=0 / weightp=2 / keyint=240 / keyint_min=24 / scenecut=40 / intra_refresh=0 / rc_lookahead=60 / rc=2pass / mbtree=1 / bitrate=2362 / ratetol=1.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / vbv_maxrate=25000 / vbv_bufsize=25000 / nal_hrd=vbr / ip_ratio=1.40 / aq=1:1.00
    Language : English
    Default : No
    Forced : No

    Audio
    ID : 2
    Format : AAC
    Format/Info : Advanced Audio Codec
    Format profile : LC
    Codec ID : A_AAC
    Duration : 1h 27mn
    Channel(s) : 2 channels
    Channel positions : Front: L R
    Sampling rate : 48.0 KHz
    Compression mode : Lossy
    Delay relative to video : -83ms
    Language : English
    Default : No
    Forced : No
    Quote Quote
  19. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    That's still incomplete info (last post wasn't posted when I started this), but I'll have a go at it anyway...

    Have you checked before and after each step to see synchronization (check both on multiple apps on PC and via hardware/settop if you can). If everything is ok up until the RipBot264, it's probably a setting in an AVISynth script that it uses. BTW, by "hardwired" I'm now guessing that you mean the subtitle has been burned into the pixels of the movie. In that case, it is of course impossible for synchronization to change after-the-fact (because how can the video not be synchronized with itself?), so that must be due to something mis-applied during the combining stage.
    For viewing, you don't need to actually "process" the V+Sub, you just need a sub editor that allows them to be seen simultaneously, so you have a few more choices to work with.
    Note that Picture-based subs (which is what is output from 3Dsubtitler) often do NOT have any timing info inherent in the file format. That makes them easy to be misunderstood.
    Will get back to you with more options later...

    Scott
    Last edited by Cornucopia; 2nd Nov 2012 at 11:23.
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  20. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    Thank you Scott for the useful info you let me know. Actually yes, things are fine before using Ripbot264. I will try to check Avisynch just trying to find out the reason. I did not get your saying "you just need a sub editor that allows them to be seen simultaneously, so you have a few more choices to work with". I used Subtitle Edit but things become worst as long as trying to save the subtitles in MicroDvd or Subrio format).
    However let approace the subject from another point of you... I can connect my Pc to 3DTv set. The problrm is that the TV does not recognise the 3dmovies when iit is played by VLC or Gom player, so instead of compining the two halfs of the screen, it makes a mess by doubling the whole screen. Is there any way (eg in preferences/settings of the players) to overcome this problem? On the other hand, using Stereoscopic player is ok but this software does not support subtitles at all....
    am
    Quote Quote
  21. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    Also the same problem exists when trying to combine all in one using mkvmerge-gui 5.8!
    Quote Quote
  22. Member netmask56's Avatar
    Join Date: Sep 2005
    Location: Sydney, Australia
    Search Comp PM
    http://forum.videohelp.com/threads/346523-subtitles-to-3D-Can-someone-confirm-this-is-...=1#post2197059

    Using this tool the important steps in mkvmergegui is to add the subtitle and "attach" the font before muxing.
    TheVoiceIsAnotherPerson ~ BeyonWiz DP-P1 and T3 PVR's ~ Popcorn C200 ~ Samsung ES8000 65" LED TV ~ Windows 7 ~ Yamaha RX-A1030 http://www.openwiz.org/wiki/ProjectX
    Quote Quote
  23. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    thank you
    netmask65

    I will give a try...could you explain "...to add the subtitle and "attach" the font before muxing"...you mean to use mkvextract-gui and then to remux them using the tsmuxer?
    Quote Quote
  24. Member netmask56's Avatar
    Join Date: Sep 2005
    Location: Sydney, Australia
    Search Comp PM
    Originally Posted by adultmike View Post
    thank you
    netmask65

    I will give a try...could you explain "...to add the subtitle and "attach" the font before muxing"...you mean to use mkvextract-gui and then to remux them using the tsmuxer?
    No no no!!! The whole thing is done in mkvmergegui (MKVMERGEGUI)you don't use tsmuxer. Just add the files into mkvmerge and then on the next tab called Attachments add the font and then hit the "start muxing" button down the bottom
    TheVoiceIsAnotherPerson ~ BeyonWiz DP-P1 and T3 PVR's ~ Popcorn C200 ~ Samsung ES8000 65" LED TV ~ Windows 7 ~ Yamaha RX-A1030 http://www.openwiz.org/wiki/ProjectX
    Quote Quote
  25. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    thanks netmask56, it works perfect on my Pc, no desyncrhonisation, 3d subtitles are there. On a TVset however, in 3D mode the subtitle has the usual problem whenever one tries to watch 2D subtitle on a 3D video. Obviously the telly become confused trying to play such a file....
    Is there anyway the 3dTV set to detect the 3d effect played on a particular pc player (connected with HDMI) or it is impossible?
    Last edited by adultmike; 6th Nov 2012 at 03:31.
    Quote Quote
  26. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    I have persuade myself that only the RipBot264 works ok with imprinted subtitles. I dob't know if other users have been confronted with such problems of desynchronisation as those I mention in earlier messages. Please, let me know about, just to know that it is my fault of utilitity's bug...
    regards,
    am
    Quote Quote
  27. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    Look, if you are going the burned-in subs route, ANY app or combination of apps that burn-in subs will work, assuming you: 1. can accept the video & subs filetypes, and 2. have prepared the subs' 3D layout to match the videos' 3D layout.

    This includes AVISynth, FFMPEG, Virtualdub, many NLE's, etc.

    I will create some "example" 2D and "3D" subs later this evening (while I'm watching the US Election returns) to maybe help clear the air. Unfortunately, I believe you are still confused about all this.

    There are ways to avoid burning in the subs as well, though much here is player-dependent, but a lot can be worked out by correctly visually pre-processing the subs for the specific 3D layout.

    Scott
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote
  28. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    The truth is that I'm not familiar with video editing, however i can follow the instructions given here from the most experienced folks. I choose burned-in subs because I realised that the problem is context (tv-player) depended and until now the method with Ripbot264 gave me the most promised results...
    While I will be waiting for your examples, I will do some more attemps and post a detailed protocol of what i did, hoping that finally the problem will be solved with your help. If you need some particular info about, please Scott, let me know.
    cheers,
    mike
    Quote Quote
  29. Member
    Join Date: Oct 2012
    Location: Athens
    Search Comp PM
    Maybe I have put the problem in wrong base. Maybe is better to ask for the options while using TsMuxer. Do I have to checck the general track info (add change fps, picture timing info, insert SPS/PPS) and those for Ripbot264, both using to produced burned-in subtitles to mkv files. I little bit explanation should be useful for every noobie user and would be appreciated !!
    Quote Quote
  30. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    So here's the samples I was working on...

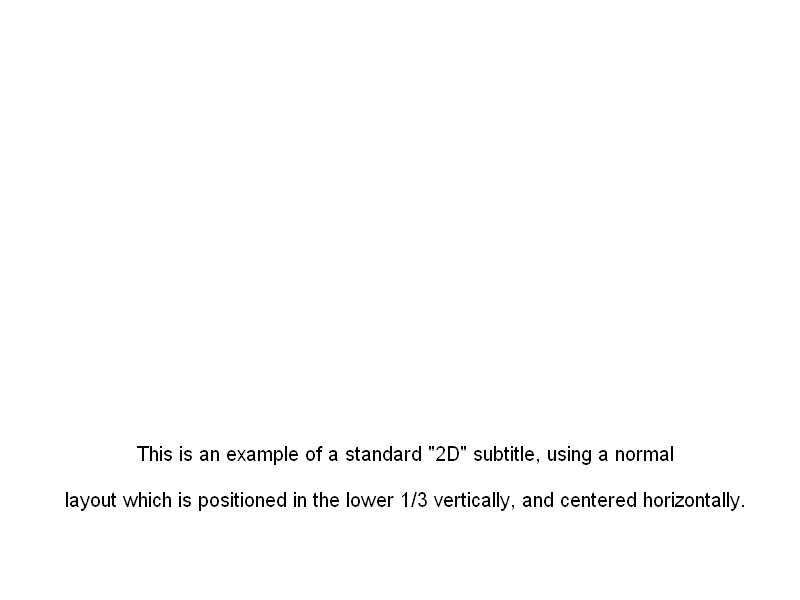

    This image shows a normal 2D sub (in front of a WHITE video) as seen on a 2DTV screen (or 3DTV in 2D mode):
    Name:  Standard 2D.png
Views: 9160
Size:  8.7 KB

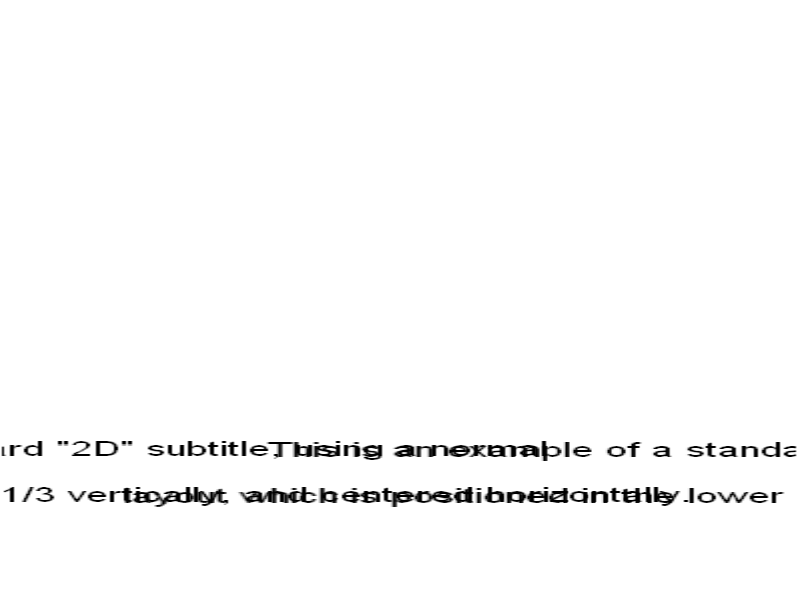

    This image shows a normal 2D sub as seen on a 3DTV in 3D mode (SbS layout):
    Name:  Standard 2D-when seen in Sbs3D.png
Views: 9190
Size:  15.3 KB

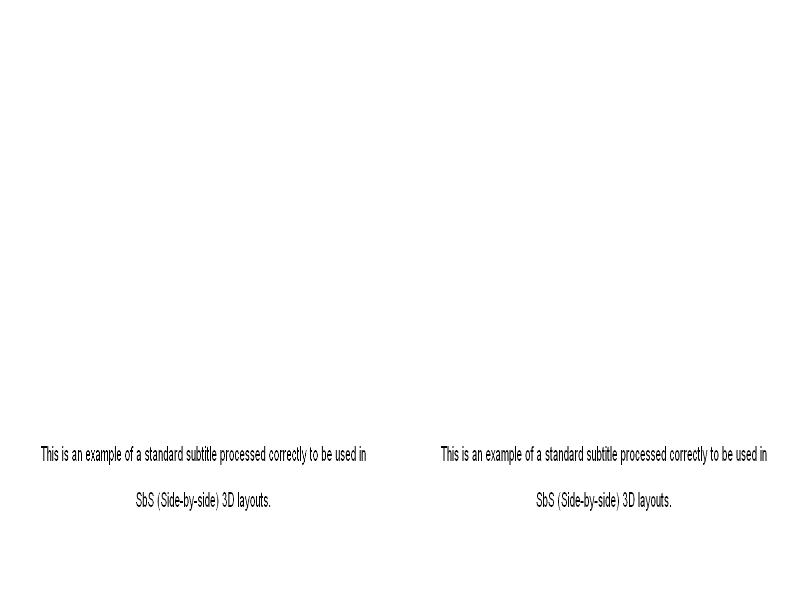

    This image shows what you should do to a 2D sub to process it to make it a "3D sub", even though it is still a standard sub as far as the file format goes. If you view it on a 2DTV (or 3DTV in 2D mode) it looks like this:
    Name:  Standard 2D-processed for Sbs3D.png
Views: 9400
Size:  11.7 KB

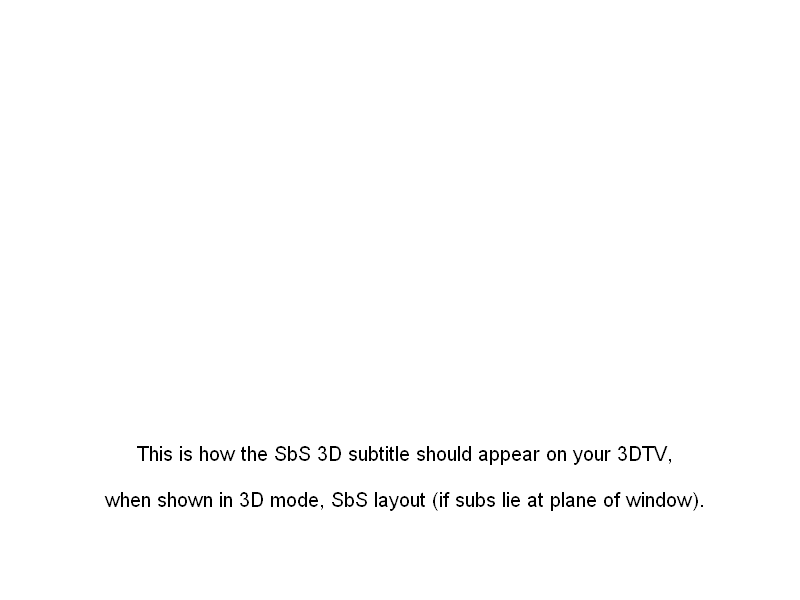

    This image shows what that "3D-processed" 2D sub will look like on a 3DTV when in 3D mode (SbS layout). This example has the subs existing on the plane of the stereo window (not in front or behind):
    Name:  Processed 2D-when seen in Sbs3D.png
Views: 9169
Size:  8.8 KB

    As you can see, all of these subs are REALLY 2D subs, so if your media player (even the one in the TV itself) can accept a 2D sub WHILE in 3D mode, all it takes is some processing of the subs to the correct layout to enable it being shown correctly while in 3D mode (using that same layout).

    Note: you can ONLY use it for the one layout, and you CANNOT use the same sub for both 2D and 3D modes.

    Scott

    edit: whoops! swapped images there for a minute. OK, fixed now.

    P.s. The main problem is with the formatting tools, including the use of condensed-pitch fonts, and the precise horizontal & vertical alignments necessary. If you go with bitmapped-based subs instead of text-based subs, the processing job is easier, but you have to get it exactly right the first time since you can't easily go back and re-edit & re-render, like you could in text-based fonts. Depends alot on whether your media player app(s) prefer text-based or bitmap-based subs...
    Last edited by Cornucopia; 7th Nov 2012 at 16:27.
    "When will the rhetorical questions end?!" - George Carlin
    Quote Quote



Similar Threads
