    Can an image file be converted to a subtitle and muxed with video and audio to create a new DVD.
    Looking to superimpose a black border on a DVD to avoid re-encoding.


    Name:  screen2.jpg
Views: 1040
Size:  2.8 KB
    Last edited by sambat; 25th Feb 2012 at 18:18.
    Quote Quote
  2. Member
    Join Date
    Dec 2005
    Location
    Canada
    Search Comp PM
    Resolved using MuXMan and DVDSubEdit.
    Quote Quote
  3. I'm curious. Can you give a hint what you did?
    http://milesaheadsoftware.org/
    Fully enabled freeware for Windows PCs.
    Quote Quote
  4. Member
    Join Date
    Dec 2005
    Location
    Canada
    Search Comp PM
    It was a VHS tape recorded to disk (NTSC)

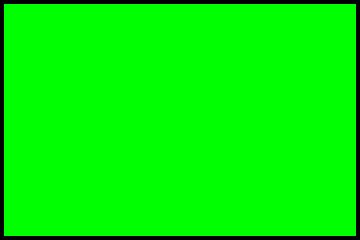

    I wanted to black-out 12 pixels around so created an image 696x456, coloured it black (0,0,0)
    Fitted to a canvas 720x480, filled in the perimeter with green (0,0,255).
    Saved it as 4 bit/16 colour bmp file.

    MuxMan:
    Loaded the previously demuxed m2v along with the bmp.
    Loaded the Audio.
    Loaded an .sst file which has the particulars of the subtitle and muxed everything.

    Used DVDSubEdit to verify colours, transparency, etc.

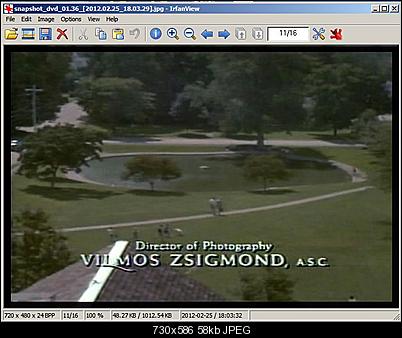

    Click image for larger version

Name:	Clipboard011.jpg
Views:	273
Size:	58.2 KB
ID:	11143

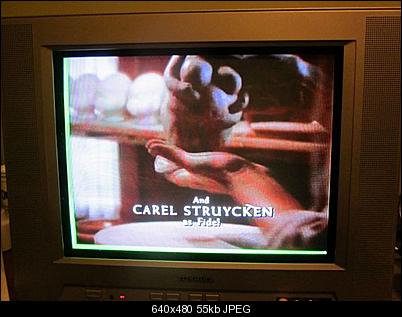

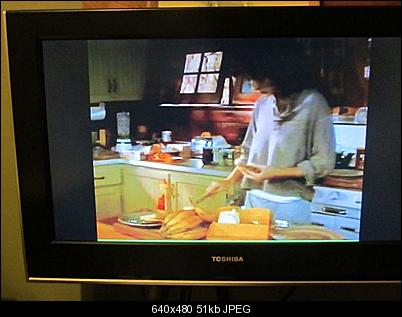

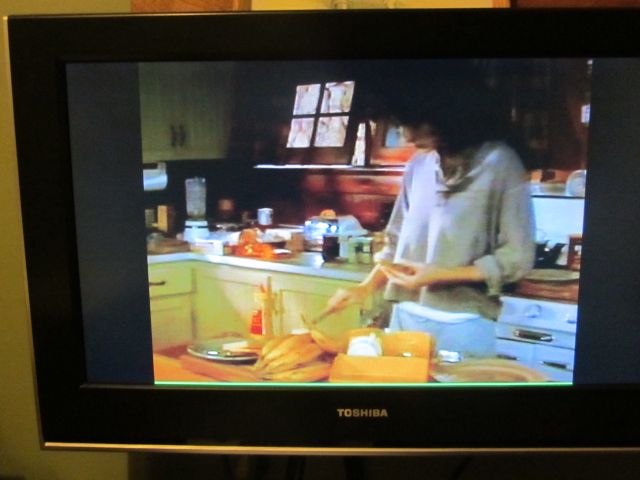

    Changed the black to green to look at the overscan on a CRT and LCD screen.

    Click image for larger version

Name:	subpic 001.jpg
Views:	258
Size:	54.8 KB
ID:	11144

    Click image for larger version

Name:	subpic 002.JPG
Views:	269
Size:	51.4 KB
ID:	11145
    Quote Quote
  5. Interesting. Had no clue one could use a static image like that. Thanks for the particulars.
    http://milesaheadsoftware.org/
    Fully enabled freeware for Windows PCs.
    Quote Quote
  6. Member
    Join Date
    Aug 2005
    Location
    Oregon, USA
    Search Comp PM
    Very clever idea!
    Quote Quote
  7. Member
    Join Date
    Dec 2005
    Location
    Canada
    Search Comp PM
    I got the impulse from this Doom9 thread on creating a menu using a script.

    http://forum.doom9.org/showthread.php?t=99306
