    Hello!

    I'm not sure this is the right subforum, but I couldn't find anything on retro/vcr video equipment anywhere else =/

    Anyway, I have an old Sony SLV-940HF VCR/Recorder that had a tape jammed in it. It wouldn't play, eject, or anything. So I had to open it up, and carefully remove the tape manually. When I put everything back together, I noticed it will no longer "take" the tape when I put it in. Usually it sucks it in and does it thing, but it won't do anything now!!

    I've checked the "tape loading bracket" and mechanically it works fine. I put the tape in and can manually slide it back and down. But for some reason, the VCR it won't automatically feed. Also, the VCR itself seems to work fine. Everything is spinning and moving, etc.

    Here are some pics. I'd really appreciate some help

    http://img94.imageshack.us/img94/3784/dscn3177a.jpg
    http://img842.imageshack.us/img842/9989/dscn3179k.jpg
    http://img846.imageshack.us/img846/2804/dscn3178.jpg

    thanks!!
    Quote Quote
  2. aBigMeanie aedipuss's Avatar
    Join Date: Oct 2005
    Location: 666th portal
    Search Comp PM

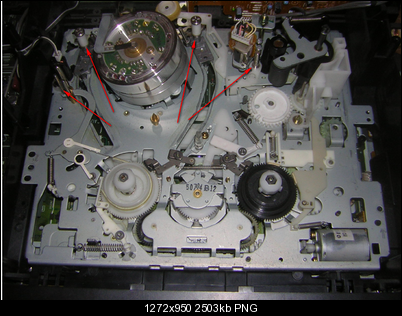

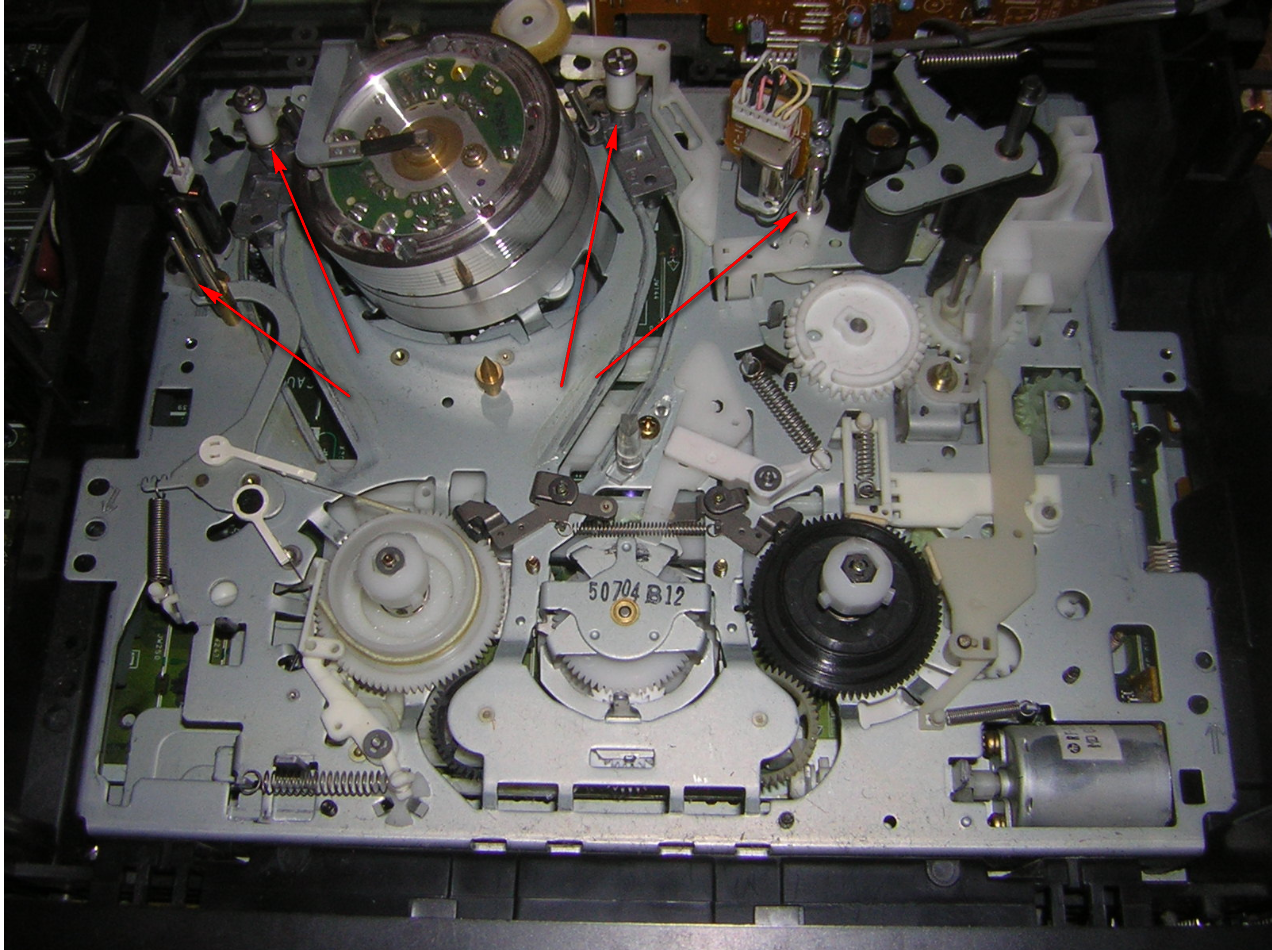

    looks dead to me. the tape loading mechanism is in the play/record position, not the empty/loading position.

    Click image for larger version

Name:	2011-08-28_210413.png
Views:	169
Size:	2.44 MB
ID:	8384
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  3. Member
    Join Date: Dec 2008
    Location: United States
    Search Comp PM
    I did notice that, but depending on what buttons I press and whether or not the power is on, they do go into the empty/load position.

    thanks!
    Quote Quote
  4. Member
    Join Date: Jul 2007
    Location: United States
    Search Comp PM
    If you're talking about fixing it, I think you'd have to find the actual repair manual for this model. If I'm not mistaken,
    VHS machines have some kind of sensor when you insert the tape, like an electromechanical thing. If the sensor is not working, then it won't load the tape. I have a similar Sony SLHF 750, sometimes it won't eject the tape, have to shut it
    off for a while and then it will work again. Many years ago I saw some on line site dedicated to repairing VCR's,
    try doing a Google search and see what you come up with.
    Quote Quote
  5. Member
    Join Date: Dec 2008
    Location: United States
    Search Comp PM
    Thanks for the advice!! I did a google search but could only find a free service manual for an SLV-980HF, which is very similar, but not ideal. It was mostly just schematics and disassembly instructions though =/
    Quote Quote
  6. Member
    Join Date: Jul 2007
    Location: United States
    Search Comp PM
    Originally Posted by llmercll View Post
    Thanks for the advice!! I did a google search but could only find a free service manual for an SLV-980HF, which is very similar, but not ideal. It was mostly just schematics and disassembly instructions though =/

    Try this site..... has many useful tips and explanations of how VHS machines work and are repaired:

    http://www.repairfaq.org/sam/vcrfaq.htm
    Quote Quote
  7. It's usually a belt & you can put it in yourself, they are on the bottom.
    Quote Quote
  8. Member
    Join Date: Dec 2008
    Location: United States
    Search Comp PM
    Here are a few pics and a short video showing what happens when I press the play button without a tape. It seems like all the mechanical parts are moving fine now, but don't know for sure.

    http://img9.imageshack.us/img9/7184/dscn3203v.jpg
    http://img717.imageshack.us/img717/9323/dscn3202v.jpg
    http://www.youtube.com/watch?v=AweAsdwMTTk

    Any idea on what the issue is and how to repair it?

    Thanks so much!!
    Quote Quote
  9. Member
    Join Date: Jul 2007
    Location: United States
    Search Comp PM
    Looks to me like the loading mechanism is not working. There is a motor and possibly a belt or belts involved that control this function. Your original post said the tape was stuck inside. Un-loading or ejecting is the opposite of loading.
    From www.fixya.com, here's an answer given:

    "Dear Rob, There can be two reasons for your problem.Let us consider the simpler and most likely cause.....Belts!!!
    Unplug the Plug from the Power socket. Open up the top and bottom Panels.Check the belts. Most likely you will find a belt has snapped ( a 80% possibility) or become very very loose. Also check the Tape Loading mechanism,there is a small belt which connects from the Loading motor to the Loading Mechanism.
    Replace the belts as a entire set."

    You'd have to check around the Internet for parts, sometimes EBay, www.parts.com or www.mcmelectronics.com stocks replacement belt kits. If it's a worn or broken gear or gears, then it becomes more difficult.

    Sony recorders of this vintage usually make a loud whirring noise when loading or ejecting a tape. If you don't hear it,
    possibly the loading motor is shorted or not working.

    Seems to be it would be more practical to bring the unit to a qualified VCR repair technician and get an estimate to fix it.
    The repair charge might be more than what you'd pay for a new or used VCR, but that's your choice.













    Quote Quote
  10. Member
    Join Date: Apr 2013
    Location: Michigan
    Search Comp PM
    The vcr will load normal with cover off, wont load with cover on.
    Tested IR sensor, & end sensors both in & out of circut, all check ok, replaced IR anyway, still acts up.
    Noticed the tape hesitates on the right, & will eject, but reload again when cover is on.
    Obviously something else light sensitve in machine that I am noty aware of.
    Quote Quote
  11. Member
    Join Date: Aug 2006
    Location: United States
    Search Comp PM
    Originally Posted by checkin1 View Post
    The vcr will load normal with cover off, wont load with cover on.
    Tested IR sensor, & end sensors both in & out of circut, all check ok, replaced IR anyway, still acts up.
    Noticed the tape hesitates on the right, & will eject, but reload again when cover is on.
    Obviously something else light sensitve in machine that I am noty aware of.
    Posting in someone else's old thread is questionable. Posting the same thing in more than one is definitely against the forum rules. You have a virtually identical post here: http://forum.videohelp.com/threads/350634-Toshiba-D-VR7-shuts-off-when-use-vcr-side
