    With most photo and video enhancement programs, is a 10% reduction in "gamma" equal to a 10% increase in "contrast"?
    Quote Quote
  2. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    No. Gamma is a non-linear function weighing light to dark.
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  3. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote

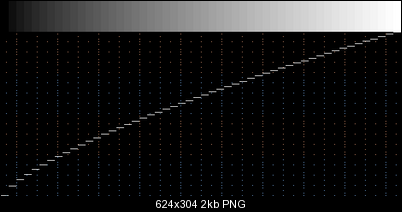

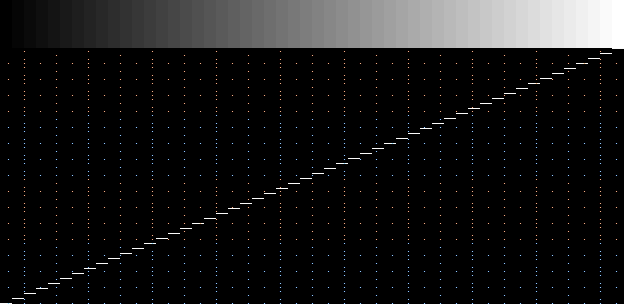

  4. evenly spaced shades of gray and a graph:
    Click image for larger version

Name:	linear.png
Views:	2675
Size:	2.0 KB
ID:	1646

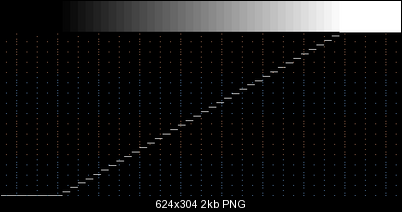

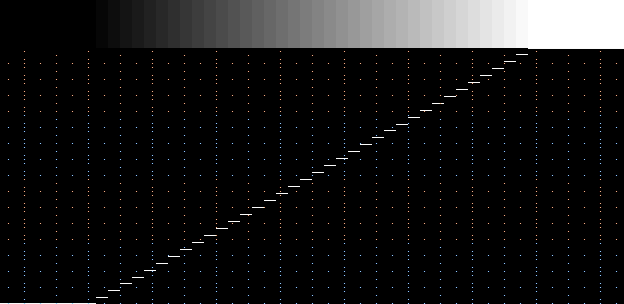

    contrast increased (darks darker, brights brighter, blown out at both ends):
    Click image for larger version

Name:	cont.png
Views:	2677
Size:	1.8 KB
ID:	1647

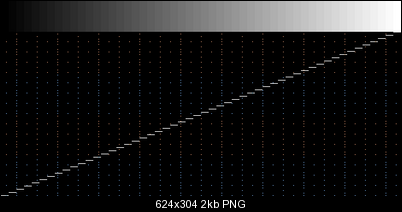

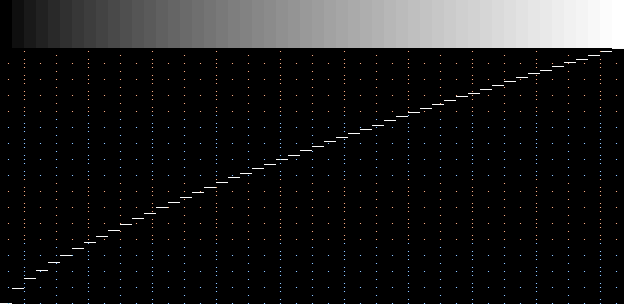

    gamma increased (dark lighter but black still back, lights lighter but not blown out):
    Click image for larger version

Name:	gamma.png
Views:	2671
Size:	2.0 KB
ID:	1648

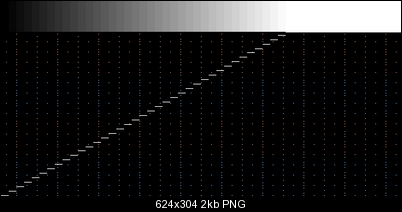

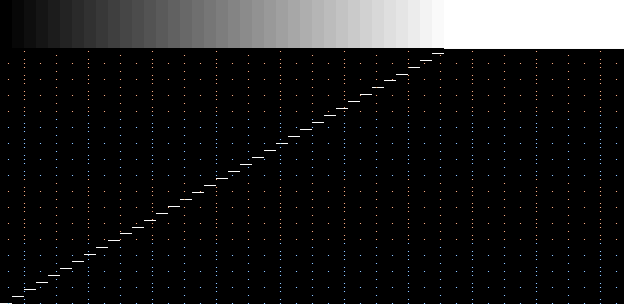

    Some programs use the term contrast to mean gain (black still back, everything else lighter, brights blown out):
    Click image for larger version

Name:	gain.png
Views:	2649
Size:	1.9 KB
ID:	1649

    Gain and contrast are basically the same thing except gain stretches intensities from the bottom, contrast stretches intensities from the middle.
    Last edited by jagabo; 29th Apr 2010 at 21:48.
    Quote Quote
  5. Member
    Join Date
    Jan 2004
    Location
    Iowa, USA
    Search Comp PM
    Ouch -- that Wikipedia info melted my brain!
    I was curious to ask because years ago somebody told me, as an "easy" explanation, that gamma affects the mid-tones much more than the brights and darks, so if you reduce gamma by x%, it has the visual effect of increasing the brights and darkening the darks relative to the midtones much like increasing the contrast by approx. the same percent. I see now that it is much more complicated than that. Thanks.
    Quote Quote
  6. Increase gamma to bring out shadow detail. Decrease gamma to bring out bright detail.
    Quote Quote
  7. Member edDV's Avatar
    Join Date
    Mar 2004
    Location
    Northern California, USA
    Search Comp PM
    A gamma only adjustment shouldn't affect peak white or black.

    Brightness will move the whole waveform up and down. It is used to set black level.

    Contrast (aka luma gain) will widen the difference between black to peak white. Too much contrast will crush blacks and saturate whites.

    On properly designed equipment these adjustments are independent but in the real world of low end consumer equipment, there is interaction.
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  8. Video Restorer lordsmurf's Avatar
    Join Date
    Jun 2003
    Location
    dFAQ.us/lordsmurf
    Search Comp PM
    "gamma affects the mid-tones much more than the brights and darks" = true.
    But I think you've interpreted it incorrectly.
    Quote Quote
  9. Member
    Join Date
    Jan 2004
    Location
    Iowa, USA
    Search Comp PM
    I didn't think it was that simple, as "explained" to me years ago, so I thought I'd ask and see what some experts would say.
    Quote Quote
