DVB Subtitles in Mpeg TS

[casuva]

Hi,

Is it possible to play embedded DVB Subtitles (as bitmap) in a MPEG trasport stream with MPC? Any response will be appreciated..

Thank you in advance

[Baldrick]

I don't think so. But MPCHC(beta version) supports DVB subtitles

Revision 1335 - Directory Listing
Modified Wed Nov 11 19:16:30 2009 UTC (3 months ago) by casimir666
Added : support for DVB subtitles

[fk]

DVBViewer supports playback of both DVB subtitles and teletext subtitles in MPEG ts streams.

[casuva]

I don't think so. But MPCHC(beta version) supports DVB subtitles

Yes, I know that mpc-hc is supposed to support DVB subtitles (after version v1.3.1335.0) But I couldnt find out how should I configure the player to be able to playback DVB subs. Have anyone ever achieved to see DVB subs with mpc-hc?

[fk]

I forgot to mention that VLC support DVB subtitles.

[casuva]

yes fk, I know VLC does the job. For some reason we need to use MPC-HC as player. So I need to find a way to see DVB subs with MPC_HC.

[Budman1]

I know this is an old thread but in case anyone still needs the info and reads this. I installed MPC-HC and tried a TS video with DVB subs.
General
ID : 8197 (0x2005)
Complete name : C:\Users\Bud\Desktop\test\The Secret Caribbean.ts
Format : MPEG-TS
File size : 43.8 MiB
Duration : 1mn 48s
Overall bit rate mode : Variable
Overall bit rate : 3 389 Kbps

Video
ID : 520 (0x208)
Menu ID : 8261 (0x2045)
Format : MPEG Video
Format version : Version 2
Format profile : Main@Main
Format settings, BVOP : Yes
Format settings, Matrix : Custom
Format settings, GOP : M=3, N=12
Codec ID : 2
Duration : 1mn 47s
Bit rate mode : Variable
Bit rate : 3 028 Kbps
Maximum bit rate : 15.0 Mbps
Width : 704 pixels
Height : 576 pixels
Display aspect ratio : 16:9
Active Format Description : Letterbox 16:9 image, with alternative 14:9 center
Frame rate : 25.000 fps
Standard : PAL

Audio
ID : 521 (0x209)
Menu ID : 8261 (0x2045)
Format : MPEG Audio
Format version : Version 1
Format profile : Layer 2
Codec ID : 3
Duration : 1mn 48s
Bit rate mode : Constant
Bit rate : 192 Kbps
Channel(s) : 2 channels
Sampling rate : 48.0 KHz
Compression mode : Lossy
Delay relative to video : -291ms
Stream size : 2.47 MiB (6%)
Language : English

Text
ID : 523 (0x20B)
Menu ID : 8261 (0x2045)
Format : DVB Subtitle
Codec ID : 6
Duration : 1mn 44s
Delay relative to video : 1s 632ms
Language : English
Menu

ID : 256 (0x100)
Menu ID : 8261 (0x2045)
Duration : 1mn 48s
List : 520 (0x208) (MPEG Video) / 521 (0x209) (MPEG Audio, English) / 523 (0x20B) (DVB Subtitle, English)
Language : / English / English

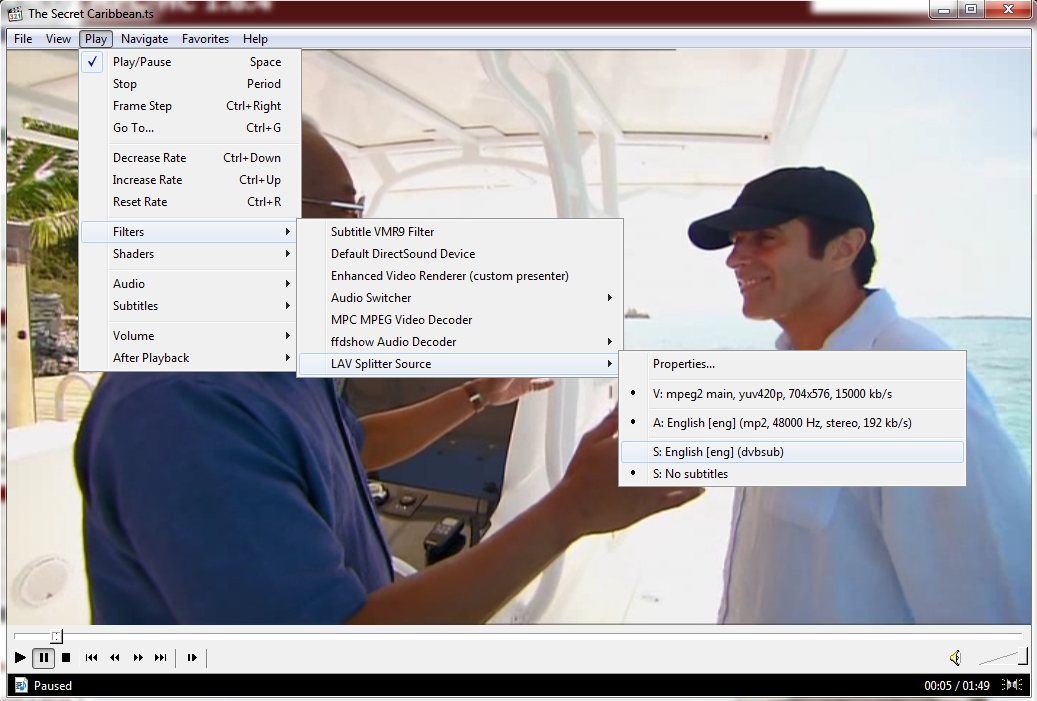

Turning on and off subtitles had no effect. I already have directvobsub installed but that didn't help either. The only way I finally found to get subtitles to show was by setting Play --> Filters --> Lav splitter source and select the subtitles. Lav splitter was installed as part of my K-Lite codec pack but are available from their download site http://1f0.de/lav-splitter/ . I have not installed from this way, only from the codec pack.

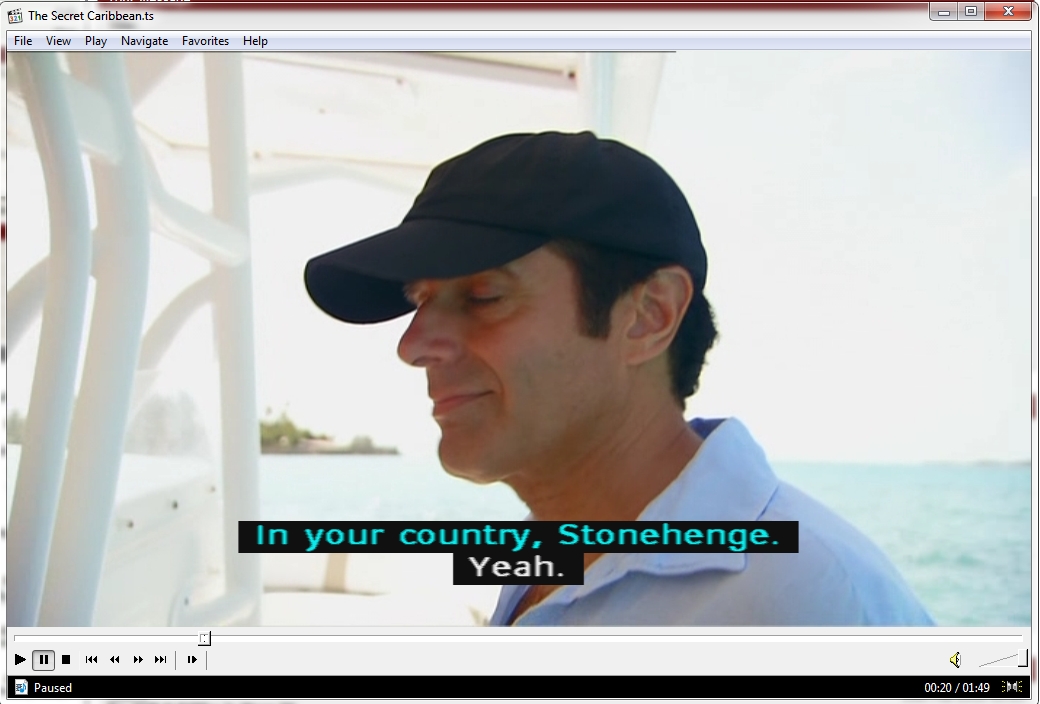

Subtitles show as :

The setting seems to reset every time I ope MPC-HC but at least it works in case anyone is still looking.

[casuva]

Thank you Budman! You know what, I was still looking for this solution. Now after almost 3 years I got the solution. Thank you indeed..
