    Hi,
    i need to know a software in which i can crop a video in!
    thanx
    Quote Quote
  2. Always Watching guns1inger's Avatar
    Join Date: Apr 2004
    Location: Miskatonic U
    Search Comp PM
    It depends what type of video, but pretty much any editor and many converters. Virtualdub, AVI Demux, AVISynth, Xvid4PSP up to Vegas, Premiere and FCP.

    You will have to re-encode after cropping.

    Do you mean cropping (removing part of the image area) as opposed to trimming or editing (removing frames from the footage)
    Read my blog here.
    Quote Quote
  3. Member
    Join Date: Apr 2009
    Location: United Kingdom
    Search Comp PM
    Originally Posted by guns1inger
    Do you mean cropping (removing part of the image area) as opposed to trimming or editing (removing frames from the footage)
    yes, i mean removing part of the image area
    Quote Quote
  4. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    I like avidemux, open video, choose a codec under Video like xvid or h264, click filters and add the crop filter (see http://avidemux.org/admWiki/index.php?title=Video_filter_Crop ), save as a new avi.

    Virtualdub works similar, open video, under video->filters add the null transform filter, click on cropping, under video->compression choose a video codec, file->save as a new avi.
    Quote Quote
  5. Mod Neophyte Super Moderator redwudz's Avatar
    Join Date: Sep 2002
    Location: USA
    Search Comp PM
    In VirtualDub, you add the 'Null Transform' filter, then cropping is available. Save the cropped video with full processing and the codec of your choice. The Null Transform will not do anything to the video, just activates the cropping feature.

    Quote Quote
  6. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    Another tool that crops real well with many sources and encodes to many formats, but not free, is: TMPGEnc Xpress (Source -> Edit -> Filters -> Picture Crop).

    The best thing though is a tool that accepts AviSynth scripts so you won't have to rely on its internal features. Then it's always this line in the script:

    Crop(Left, Top, -Right, -Bottom)

    An example to crop 20 pixels from the sides and 30 from top and bottom:

    Crop(20, 30, -20, -30)

    If you want to crop part of the image and keep the original resolution and aspect ratio with black bars (such as getting rid of VHS trackings, advertising, etc) using the last example:

    Crop(20, 30, -20, -30)
    AddBorders(20, 30, 20, 30)


    Keep in mind, when cropping, you must re-encode (unless someone knows a trick around this).
    I hate VHS. I always did.
    Quote Quote
  7. Video Restorer lordsmurf's Avatar
    Join Date: Jun 2003
    Location: dFAQ.us/lordsmurf
    Search Comp PM
    Don't crop interlaced video.
    Quote Quote
  8. Member gadgetguy's Avatar
    Join Date: Feb 2002
    Location: West Mitten, USA
    Search Comp PM
    Originally Posted by lordsmurf
    Don't crop interlaced video.
    C'mon LS, that's hardly practical advice. Sometimes you have to crop interlaced video.

    If I may rephrase...
    Avoid cropping interlaced video, but if you have to, make sure you use an interlace aware method.
    "Shut up Wesley!" -- Captain Jean-Luc Picard
    Buy My Books
    Quote Quote
  9. Member
    Join Date: Apr 2009
    Location: United Kingdom
    Search Comp PM
    Originally Posted by Baldrick
    Virtualdub works similar, open video, under video->filters add the null transform filter, click on cropping, under video->compression choose a video codec, file->save as a new avi.
    When I import a wmv file format, even after extracting the plugin pack, it say's missing codec
    Quote Quote
  10. Video Restorer lordsmurf's Avatar
    Join Date: Jun 2003
    Location: dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by gadgetguy
    Originally Posted by lordsmurf
    Don't crop interlaced video.
    C'mon LS, that's hardly practical advice. Sometimes you have to crop interlaced video.
    If I may rephrase...
    Avoid cropping interlaced video, but if you have to, make sure you use an interlace aware method.
    Most people could mask, not crop.
    Best to deinterlace (properly, not some blend or drop-field crap method) and then resize.
    Quote Quote
  11. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Originally Posted by toqi786
    When I import a wmv file format, even after extracting the plugin pack, it say's missing codec
    Direct import doesn't work for all types of wmv. Post the information from gspot or mediainfo on your wmv

    You need a vfw decoder to use in vdub for wmv. You can use ffdshow and enable wmv 1/2/3 , vc-1 in the vfw decoder configuration (set to libavcodec instead of disabled)

    Or even better , you can use avisynth's DirectShowSource(), and Crop() , this way you avoid colorspace conversions through vdub if you use fast recompress mode - this might be more difficult if you're not familiar with avisynth
    Quote Quote
  12. Member
    Join Date: Apr 2009
    Location: United Kingdom
    Search Comp PM
    Originally Posted by poisondeathray
    You need a vfw decoder to use in vdub for wmv. You can use ffdshow and enable wmv 1/2/3 , vc-1 in the vfw decoder configuration (set to libavcodec instead of disabled)
    can u explain what i need to do, will i be able to use this in vdub??
    Quote Quote
  13. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    Originally Posted by toqi786
    can u explain what i need to do, will i be able to use this in vdub??
    I thought I just did...

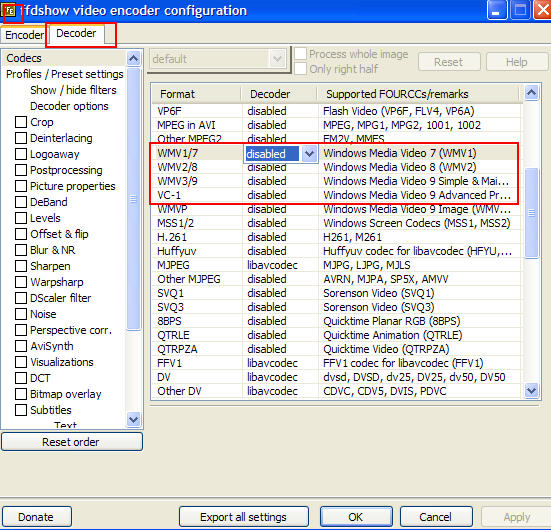

    Install ffdshow, enable the following wmv settings in the ffdshow vfw configuration (gold icon), set to libavcodec instead of disabled

    Install the vdub wmv plugin

    If it doesn't work you, may be using wma pro or another type, then post the screenshot taken from gspot or the mediainfo information, because it doesn't work for all "wmv" types, and you would then have to use another method as already suggested

    Quote Quote
  14. Video Restorer lordsmurf's Avatar
    Join Date: Jun 2003
    Location: dFAQ.us/lordsmurf
    Search Comp PM
    Certain versions of modded VirtualDub open ASF/WMV natively.
    Quote Quote
  15. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    Originally Posted by lordsmurf
    Originally Posted by gadgetguy
    Originally Posted by lordsmurf
    Don't crop interlaced video.
    C'mon LS, that's hardly practical advice. Sometimes you have to crop interlaced video.
    If I may rephrase...
    Avoid cropping interlaced video, but if you have to, make sure you use an interlace aware method.
    Most people could mask, not crop.
    Best to deinterlace (properly, not some blend or drop-field crap method) and then resize.
    I don't think it's a problem with an established format, like DV or MPEG-2 (with a good encoder), which can handle interlacing effectively.
    I hate VHS. I always did.
    Quote Quote
  16. Video Restorer lordsmurf's Avatar
    Join Date: Jun 2003
    Location: dFAQ.us/lordsmurf
    Search Comp PM
    Have you done it much? I have, it's not pretty.
    Quote Quote
  17. Member
    Join Date: Sep 2007
    Location: Canada
    Search Comp PM
    If you perform a non-mod4 interlaced crop on YV12 material, the chroma can get associated with the wrong field = wacky colors, maybe that's what LS is referring to

    I think if you crop mod4 (at least with avisynth cropping method), you are safe, maybe this is what gadgetguy was referring to (interlaced aware method?)
    Quote Quote
  18. Member PuzZLeR's Avatar
    Join Date: Oct 2006
    Location: Toronto Canada
    Search Comp PM
    Originally Posted by lordsmurf
    Have you done it much? I have, it's not pretty.
    Maybe I should squint better, but most of my cropping is removing 60 pixels of black (off the top and bottom) from a 4:3 capped NTSC source to re-encode to wide-screen, which shouldn't be a big issue. I wonder if the black part is interlaced even to begin with.

    Others are removing VHS "tracking fuzz" from transfers. VHS is horrible enough so it may not make a difference visually anyway... :P

    But I have done it to remove ads and junk from TV transfers and have seen no real ramifications other than the natural degradation from re-encoding.

    Although all crops are Mod 4 = 0 at any rate to preserve chroma arrangement, after this thread, I will just mask on the latter two from now on ... just in case.
    I hate VHS. I always did.
    Quote Quote
  19. Member gadgetguy's Avatar
    Join Date: Feb 2002
    Location: West Mitten, USA
    Search Comp PM
    I didn't mean to start a debate on the subject and hijack the thread, but LS made a statement in an absolute fashion and it's not always possible to be that rigid. Cropping interlaced material in and of itself is not the problem. The issue becomes what happens next. If you are cropping to a non-standard resolution and your destination format and player can handle non-standard, interlaced material, then there shouldn't be an issue. (I'm not aware of anything that does this correctly, but I have to allow for the possibility). However most of the time the image is resized after cropping to bring it to a standard (such as DVD) and this is where the most damage occurs. By masking you avoid the resize. As LS pointed out, most people can mask, since all they're trying to do is remove some crap from the edges which is usually in the overscan area anyway. Resizing interlaced material can be done, but as the Wicked Witch of the West said "these things must be done delicately". Again, LS pointed out that better results are usually gained by deinterlacing before resizing, but I find acceptible results can usually be achieved by just separating the fields before resizing, but as with all things video, it depends on the source.

    I don't recall the OP saying what the destination format is, nor even what he wants to crop out of the video. And at the time that LS made his statement, I don't think the OP had stated his source, so at that point we were offering generic advice, which is why I thought the blanket statement was a little harsh. If the source isn't interlaced, then for this thread the point it moot. If it is, then I would have hoped the OP either knows about handling interlaced material, or my suggested re-phrase would prompt him to investigate proper methods.
    "Shut up Wesley!" -- Captain Jean-Luc Picard
    Buy My Books
    Quote Quote
  20. First, I don't know anything about working with video. I used VirtualDub to crop one after reading the posts here. First I had to convert the mp4 to AVI (I don't know if that makes a difference). I liked the way the cropping worked. Only trouble is that the output file didn't work regardless of what I tried. I could get it to play in WM if I converted it back to mp4, but the picture was slanted, lined, and black and white. What am I doing wrong?
    Quote Quote
  21. Member
    Join Date: Mar 2008
    Location: United States
    Search Comp PM
    You're much better off starting a new thread than digging up one that is 2/12 years old.

    Make sure that the vertical and horizontal resolution at all times are at least cleanly divisible by 4.
    (8 or 16 even better). For example, 720*400 is OK, 720*402 is not
    Quote Quote
  22. Member
    Join Date: Jul 2009
    Location: Spain
    Search Comp PM
    Also, as pdr hinted in post #17, any vertical cropping of interlaced YV12 source must be done on mod4 boundaries.
    (That means it's not enough for the resulting height to be mod4, the crop positions must be mod 4 too.)
    Quote Quote
  23. Originally Posted by Baldrick View Post
    Virtualdub works similar, open video, under video->filters add the null transform filter, click on cropping, under video->compression choose a video codec, file->save as a new avi.
    Great. Very easy and powerful. Thanks for this! Anyway, is it possible to enter the file size of the ending video? I selected ffdshow Video Codec, but the processed file ends up being incredibly big, even though it is cropped more than 80%. Before I even read this post, I tried to crop a video using MeGUI, but there was a limitation of 264 dots or whatever it is in AVS Script Creator. Thanks in advance.
    Quote Quote
