Panasonic AG-1970

[schematic2]

Hi Gents

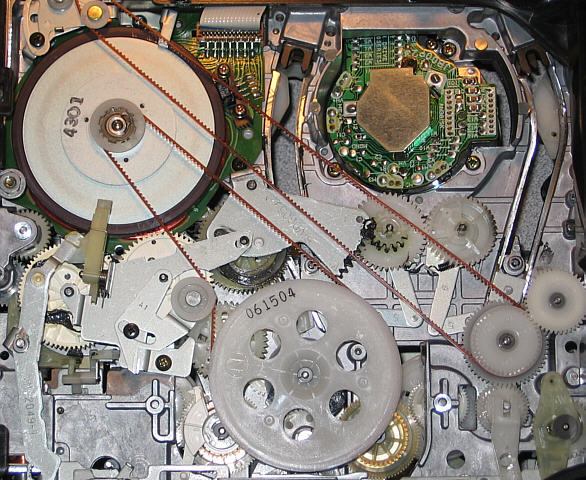

Really bought myself a headache off of Ebay this time. I need to time the gears in a AG-1970. Thought I could figure it out without a manual, but no dice. I have a AG-1980 manual but it doesn't address gear timing. I would really appreciate any help.

Thanks in advance

[lordsmurf]

You have my sympathy. Good luck.
I might ask somebody I know tomorrow, and he might know.

[schematic2]

Thanks LS. I can't find any literature anywhere

[schematic2]

Any luck LS?

[schematic2]

No worries LS. Found a manual and got her done!!
