    What is YUY2 byte meaning? Y0?,U0?Y1?.....?Are they for color, which color?
    Could you explain?
    I have an image YUY2 format and I want to image processing on this format. But I dont know image byte value.
    Sinan
    Quote Quote
  2. Member edDV's Avatar
    Join Date: Mar 2004
    Location: Northern California, USA
    Search Comp PM
    http://www.fourcc.org/

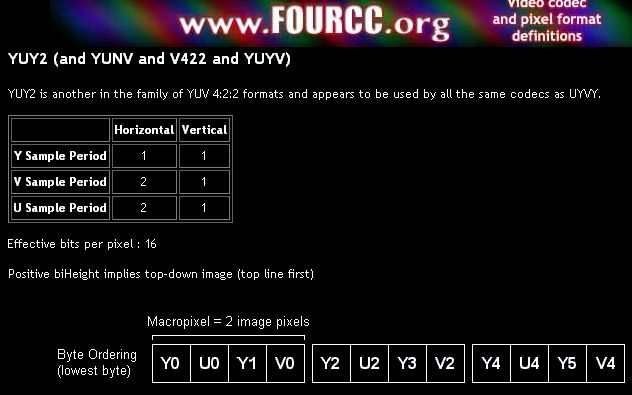

    Bytes line up like this across the line.


    YUY2 is a 4:2:2 standard

    Y0 is a 8 bit luminance pixel component
    U0 is a 8 bit (R-Y) pixel component
    V0 is a 8 bit (B-Y) pixel component

    All three represent a pixel on the screen. Since UV are half sampled, the next pixel would look like this

    Y1
    U0
    V0

    and so on ...

    BTW: Green = Y-(Red-Y)-(Blue-Y) = Y-U-V

    Does that help?
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  3. Member
    Join Date: Aug 2005
    Location: Turkey
    Search Comp PM
    I understand from your note,
    Y0= luminance of macropixel[0] that is two pixel of image.
    U0= red value of macropixel[0]....
    V0=blue value of macropixel[0]....
    but Y1 =? Is this also for luminance of macropixel[0]?
    Sinan
    Quote Quote
  4. Member edDV's Avatar
    Join Date: Mar 2004
    Location: Northern California, USA
    Search Comp PM
    Y=R+G+B=luminance=monochrome
    U=R-Y
    V=B-Y

    Macropixels

    Y0Y1|Y2Y3| etc.
    U0U0|U2U2|
    V0V0|V2V2|


    "but Y1 =? Is this also for luminance of macropixel[0]?"

    Pixel 1 = Y0-U0-V0
    Pixel 2 = Y1-U0-V0

    The two pixels represent a macropixel. Data byte order Y0-U0-Y1-V0

    http://www.answers.com/topic/ycbcr-sampling
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
    Quote Quote
  5. YUV/RGB conversion:

    http://www.fourcc.org/fccyvrgb.php

    Direct link to YUY2 format at fourcc:

    http://www.fourcc.org/yuv.php#YUY2
    Quote Quote

  6. The logic is that Y0 and Y1 do share the U0 and V0 Color compounds.
    in YUY2 the HORIZONTAL Colorfrequency is half the lumafrequency in planar YV12 its even that Colorfrequency is a quarter (half vert. and half horiz.) of the Lumafrequency.

    The YUYVYUYVYUYV order of YUY2 describes a packet/interleaved format where for example YV12 is a planar format.

    So for parsing the Y Values you need to peek every second byte in the MemorySpace starting from first byte of the YUY2 Data memory adress+zero where the YUY2 Data is stored. For U then its the first byte +1 and then every fourth, for V its the first byte +3 and also here every fourth.
    Put these into separate Y U V Arrays and you'll see again that the U and V arrays do will have a quarter of the Y array in their size each.

    That alocation of bytes makes it possible to keep YUY2 and YV12 Data byte-alignet. BUT you have to watch out when parsing the values of these Y U V bytes as Y Values are stored as least significant bits (LSBs) and U and V values are stored as most significant bits (MSBs).

    Means if Y < 0 then Y = Y + 256 ... for getting the common used Y value out of the LSB value.

    So if Y = -16 the Y is 240! .. means highest lit value in Y luma range.

    Also a very good page (dunno if it already has been mentioned in the posts above):
    http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dnwmt/html/YUVFormats.asp

    Y=R+G+B=luminance=monochrome
    U=R-Y
    V=B-Y
    R+G+B is not monochrome as its 24bit Color

    When doing RGB to YUV conversions there are several maths according to CCIR Standards available as to bee seen in this link like posted some posts above:
    http://www.fourcc.org/fccyvrgb.php
    Quote Quote
  7. Member edDV's Avatar
    Join Date: Mar 2004
    Location: Northern California, USA
    Search Comp PM
    Originally Posted by incredible

    Y=R+G+B=luminance=monochrome
    U=R-Y
    V=B-Y
    R+G+B is not monochrome as its 24bit Color

    When doing RGB to YUV conversions there are several maths according to CCIR Standards available as to bee seen in this link like posted some posts above:
    http://www.fourcc.org/fccyvrgb.php
    I was just trying to get accross the concept that luminance is a sum of red green and blue and the relationship to U and V. I got R-Y and B-Y reversed. Full equations are

    Y = (0.257 * R) + (0.504 * G) + (0.098 * B) + 16
    U = Cb = -(0.148 * R) - (0.291 * G) + (0.439 * B) + 128
    V = Cr = (0.439 * R) - (0.368 * G) - (0.071 * B) + 128
    Recommends: Kiva.org - Loans that change lives.
    http://www.kiva.org/about
