    This guide will describe the basic steps how to convert DV to WMV (or other interlaced captured material such as TV to WMV) using Windows Media Encoder. Windows Media Video is a useful video format if you want to share your dv video over the net, it usually doesn't require any additional codecs on windows systems.

    Tools Required
    DVIO or WINDV (Copy/Capture the DV to your HD)
    Windows Media Encoder


    Guide

    Copy the DV to the HD
    Use WinDV or DVIO and copy the DV your HD. Use type2 dv. Remember that DV is huge, around 217MB/minute so you need lots of free hd space.

    Convert to WMV
    Start Windows Media Encoder.
    Close the Wizard
    Set the Default Video Format to match your DV source.
    USA,Canada and Japan = 29,97(NTSC) and the rest of the world 25 fps(PAL)
    Restart Windows Media Encoder if you changed the Default Video Format.

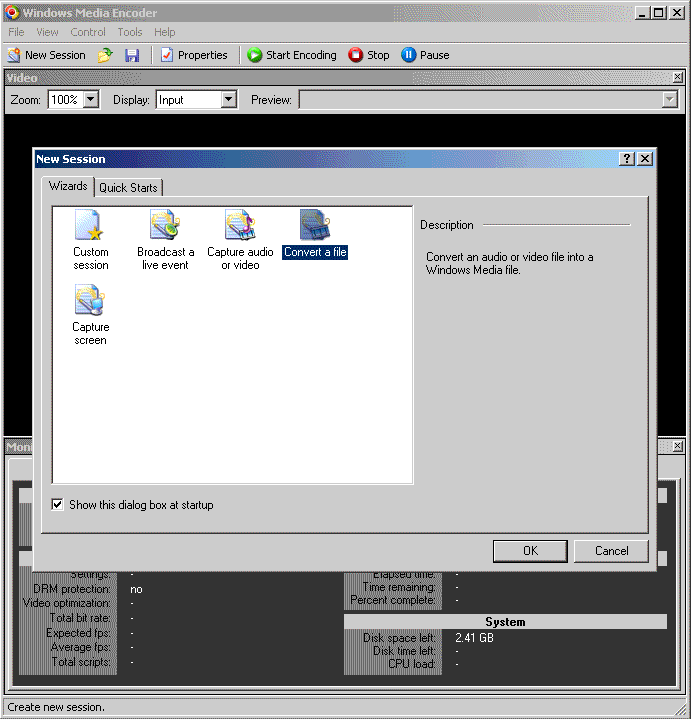

    Click New session
    Select Convert a file

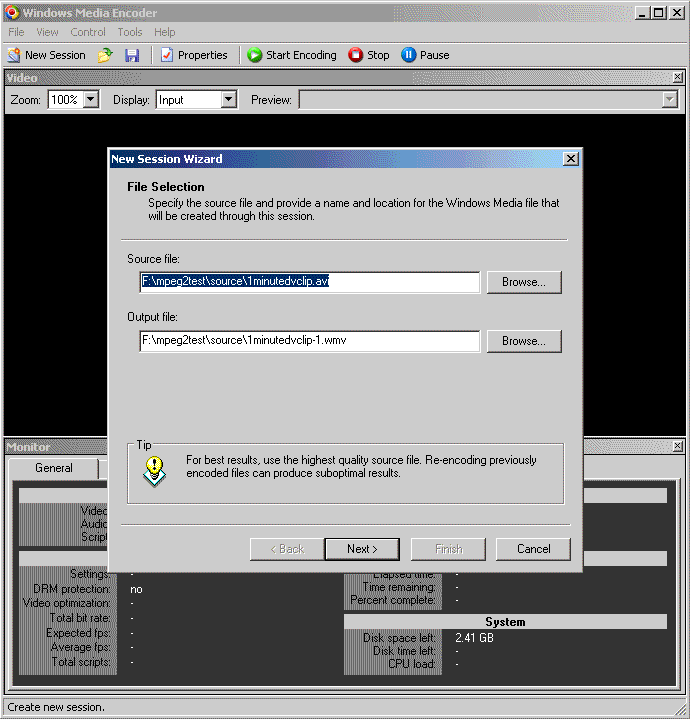

    Open the video, if you can't open it try install the Panasonic DV Codec. If you still can't open the DV try convert to DV Type 2 with DVConverter or Canopus DV File Converter or DV Type 1 to DV Type 2 Converter.

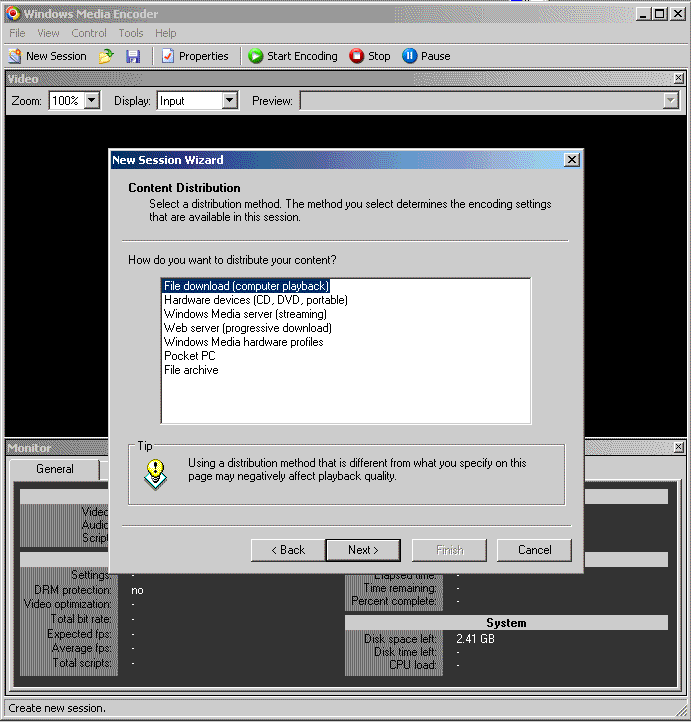

    Select File download(computer playback)

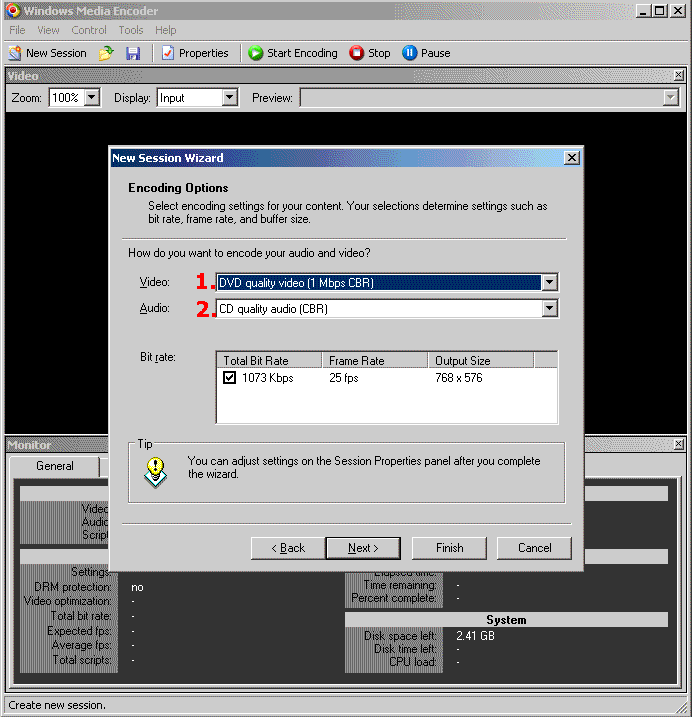

    1. Set the Video bitrate, I use DVD video quality 1 MBits CBR
    2. Set the Audio bitrate, I use CD quality CBR
    WMW output sizes:
    DVD video quality 2 MBits CBR will be around 16 MB/minute.
    DVD video quality 1 MBits CBR will be around 8 MB/minute.
    VHS video quality 250 KBits CBR will be around 2 MB/minute.
    Higher bitrate means higher quality, the WMV DVD video frame sizes is 768/640x480 and WMV VHS is 320x240. You can change the bitrate and the video frame size later.

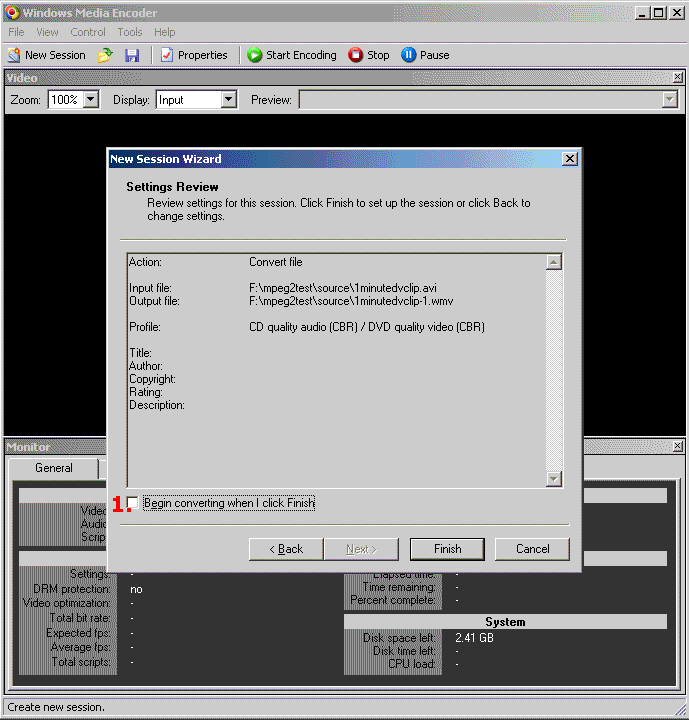

    Disable Begin converting when I click Finish


    Deinterlace
    Most DV Cameras captures interlaced and if you watch it on your computer you will notice interlaced lines so we must remove them by deinterlace the picture. Read more about interlace over at www.100fps.com .

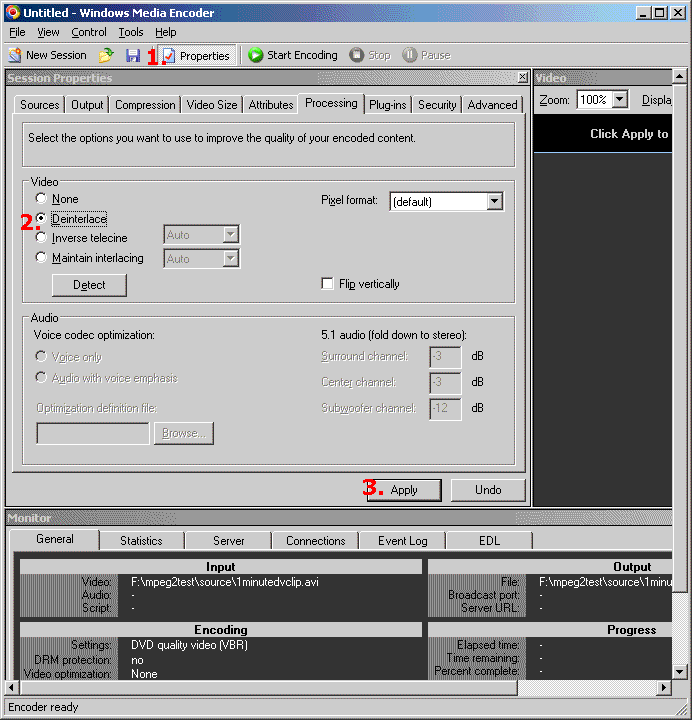

    1. Select Properties
    2. Under Processing select Deinterlace
    3. Apply

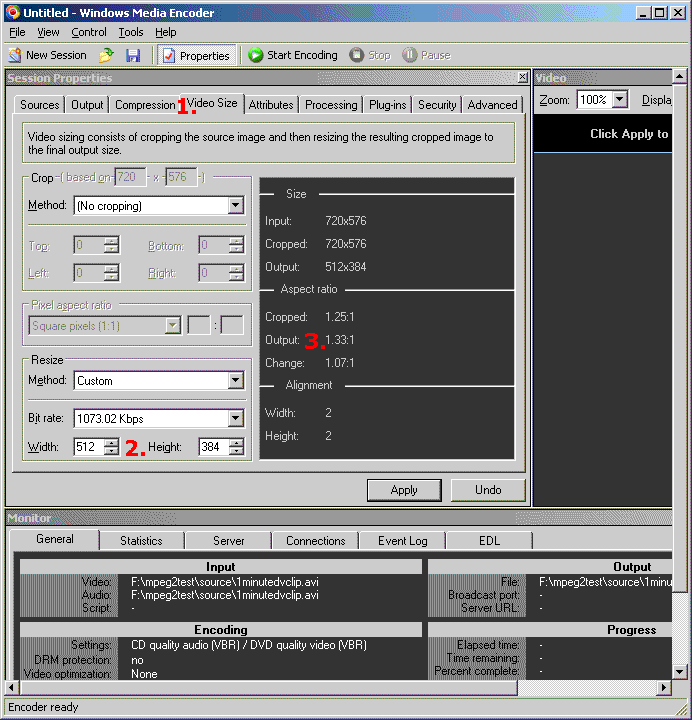

    Video frame size
    1. Select Video Size
    2. Change the Frame Size to 640x480 or lower. Some common 4:3 sizes are 640x480, 512x384,384x288, 320x240
    3. Be sure that the Output aspect ratio is 1.33(4:3)
    If you use lower video frame size you can decrease the bitrate and make smaller wmv files and still keep the video quality pretty good.


    Compression

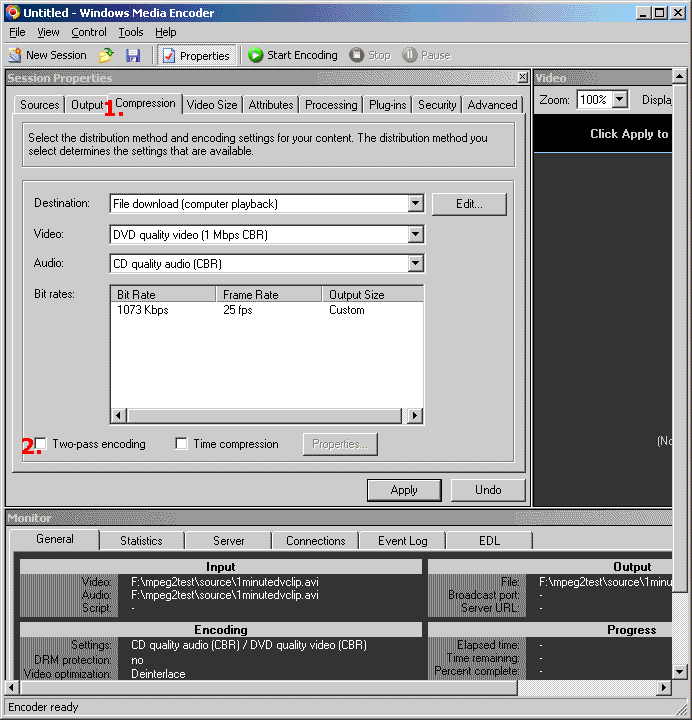

    1. Select Compression
    2. Disable Two Pass Encoding ( you can enable this if you want better quality but it will take much longer to convert)


    Custom video bitrate (this step is optional)

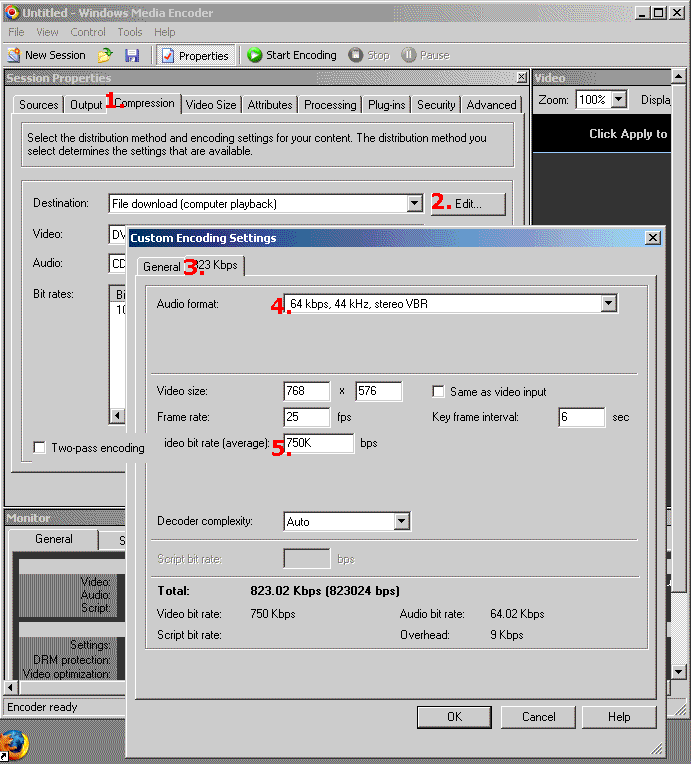

    1. Select Compression
    2. Click Edit
    3. Click on the xxx kbps
    4. Set the audio bitrate
    5. Set the video bitrate
    You can use our VideoHelp Bitrate Calculator to calculate the bitrate. If you use low bitrates, below 750kbs, be sure to lower the video frame size also or it will look really bad.


    Convert

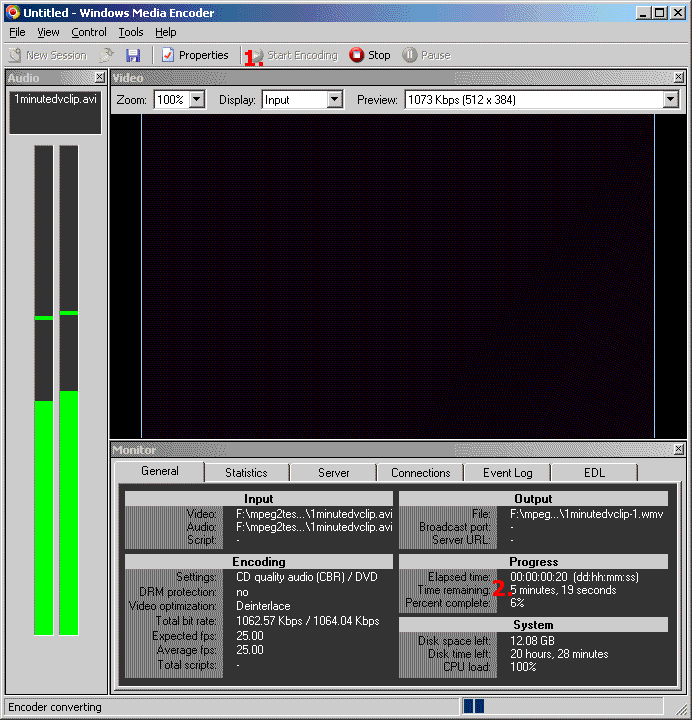

    1. Last Hit Start Encoding to convert
    2. Check the time remaining...windows media is slooooooooooow on my Athlon 1.2GHZ, 6 minutes to encode 1 minute video.



    Done.
    Quote Quote
  2. Great guide.
    One comment though: I do any resizing and deinterlacing of DV footage in a professional video editor first (Adobe Premiere, output format uncompressed avi). It's my experience this gives better quality in the end.
    I only use Windows Media Encoder for what it does best: encoding.
    Quote Quote
  3. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    I know, deinterlacing and resizing is better in other tools like the smart deinterlace plugin for virtualdub or some avisynth scripts. But this guide is just the basic steeeeeps, not the best quality method.
    Quote Quote
  4. When I follow these step, I usually get a diagonal line, sort of sync problems between different frames. Could you advise me how to get rid of it?

    Thanks,
    karthik
    Quote Quote
  5. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    do you deinterlace?
    Quote Quote
  6. yes, I did. I didn't see any horizontal lines which I would usually see incase of an interlaced video. Only the diagonal lines.
    Quote Quote
  7. Banned
    Join Date: Dec 2004
    Search Comp PM
    Hi there,

    New to this forum, looks great for a video guy! I was trying to follow the guide but hit two problems,

    when I export from Avid Express Pro as an AVI, Windows Media Encoder tells me that this file type is not supported. So I exported as WMV and it worked, but should I be using AVI files? And secondly, can I use 16:9 video instead of 4:3? How do I change the setting and will it provide "flags" for a 16:9 monitor?

    Thanks for the help!
    Quote Quote
  8. I'm a MEGA Super Moderator Baldrick's Avatar
    Join Date: Aug 2000
    Location: Sweden
    Search Comp PM
    why convert to wmv with wme if you can convert to wmv with avid???
    Quote Quote
  9. hey im following this guide, however the 2 pas encoding option is grayed out, and i cannot uncheck the box. What gies? The second pass incredibly slow (and i find uncessary for my needs).

    help?
    Quote Quote
  10. Member Cornucopia's Avatar
    Join Date: Oct 2001
    Location: Deep in the Heart of Texas
    Search Comp PM
    If this is supposed to be a simple "capture DV, edit & output to WMV", wouldn't it be easier to use WindowsMovieMaker? It can do all those things in one app.

    Scott
    Quote Quote
  11. Member
    Join Date: Jan 2008
    Location: United States
    Search Comp PM
    Originally Posted by shiz1
    hey im following this guide, however the 2 pas encoding option is grayed out, and i cannot uncheck the box. What gies? The second pass incredibly slow (and i find uncessary for my needs).

    help?
    I'm having the same problem, anybody know how to turn off two-pass encoding
